Yamaha F150A - Throttle Body

6-25

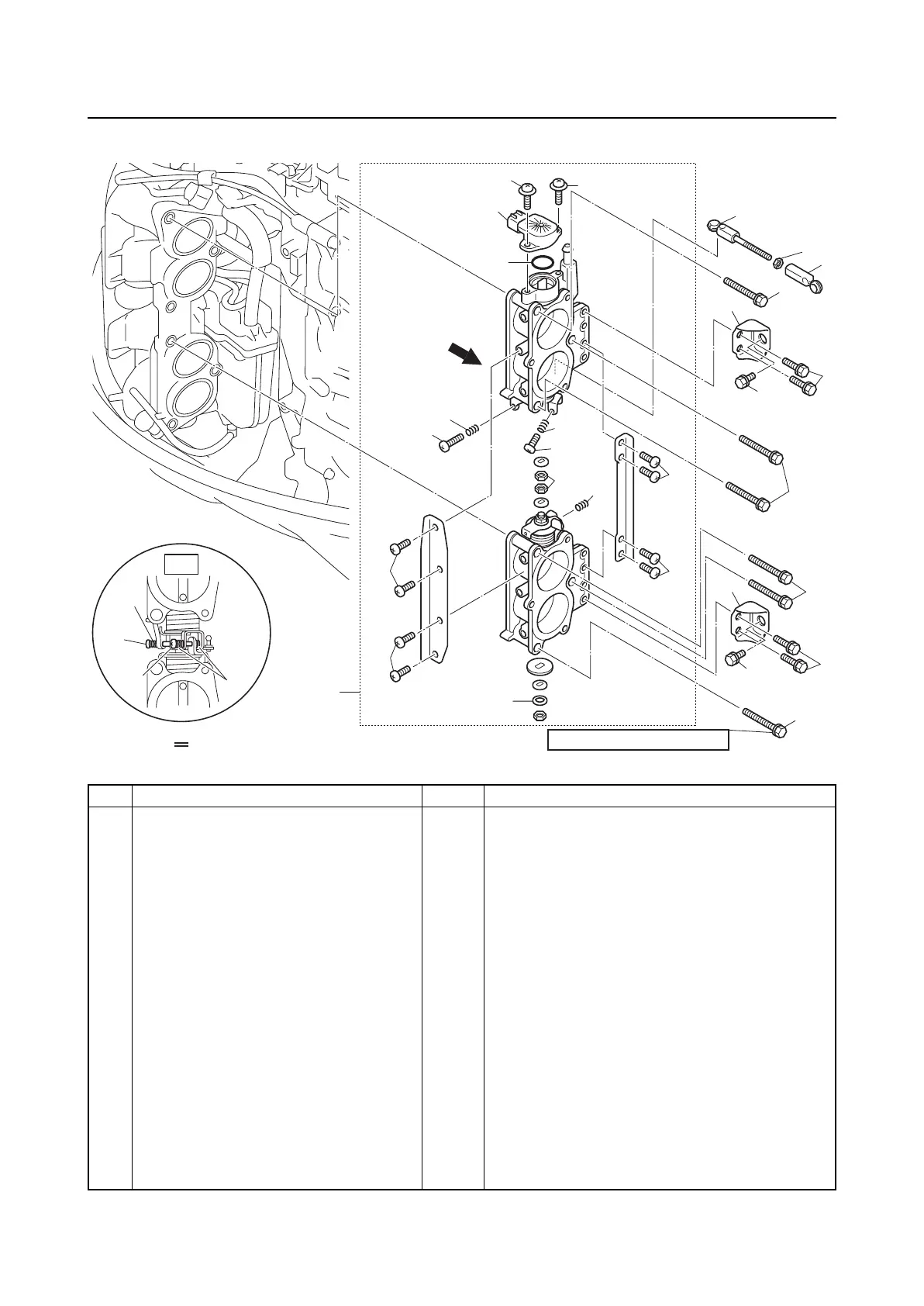

Throttle body
Throttle body
No. Part name Q’ty Remarks
1 Throttle link joint 1 1
2Nut 1
3 Throttle link joint 2 1
4 Bracket 2
5Bolt 4 M6
× 16 mm
6Bolt 2 M8
× 20 mm
7Bolt 6 M8
× 70 mm
8 Throttle body assembly 1
9Screw 2 M4
× 12 mm
10 TPS 1
11 O-ring 1 Not reusable
12 Synchronizing screw 1
13 Throttle stop screw 1
14 Spring 3
15 Nut 2
16 Spring washer 1
17 Screw 8 M6
× 16 mm
14
2
3
9
11
14
12
17
17
16
13
15
14
9
10
4
5
5
6
6
7
7
7
7
17
17
14
13
12
UP
A
1
14
A
13 N·m (1.3 kgf·m, 9.6 ft·lb)
4
8
