Yamaha F150A - PTT Cylinder

9-41

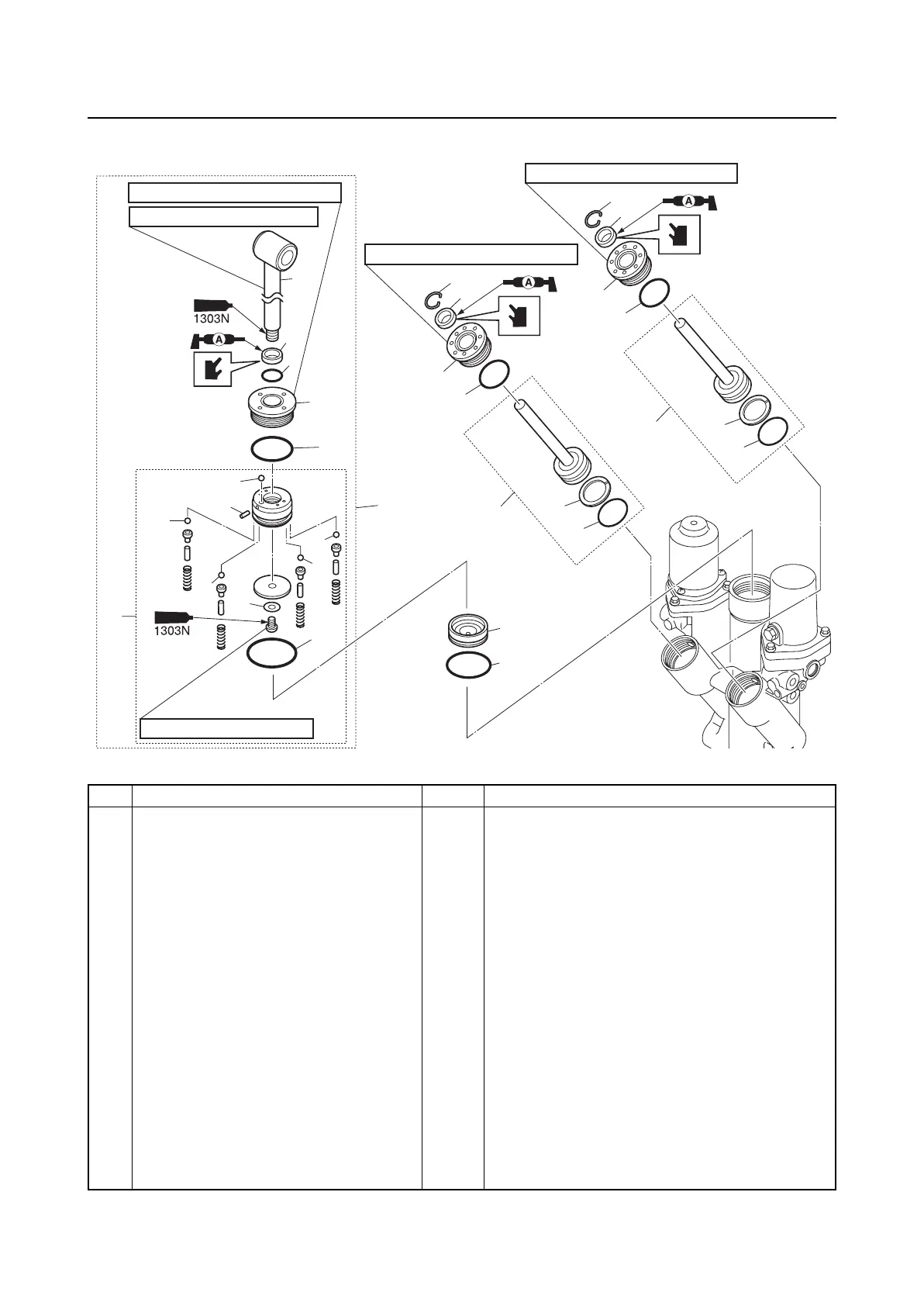

PTT cylinder
PTT cylinder
No. Part name Q’ty Remarks
1 Tilt ram 1
2 Dust seal 1 Not reusable
3 O-ring 1 Not reusable
4 Tilt cylinder end screw 1
5 O-ring 1 Not reusable
6 Ball 1 3.96 mm (0.16 in) (reference data)
7Pin 1
8 Ball 4 3.94 mm (0.15 in) (reference data)
9 Washer 1
10 O-ring 1 Not reusable
11 Tilt piston assembly 1
12 Tilt ram assembly 1
13 Trim ram assembly 2
14 Backup ring 2
15 O-ring 2 Not reusable
16 O-ring 2 Not reusable
17 Trim cylinder end screw 2
65 N·m (6.5 kgf·m, 47.9 ft·lb)
2
5
11
10
8
12
20
21
19
18
17
16
14
15
13
1
9
8
8
7
6
8
4
3
7 N·m (0.7 kgf·m, 5.2 ft·lb)
160 N·m (16.0 kgf·m, 118.0 ft·lb)
19
18
17
16
14
15
13
160 N·m (16.0 kgf·m, 118.0 ft·lb)
150 N·m (15.0 kgf·m, 110.6 ft·lb)
