Yamaha F150A - Rear

5-5

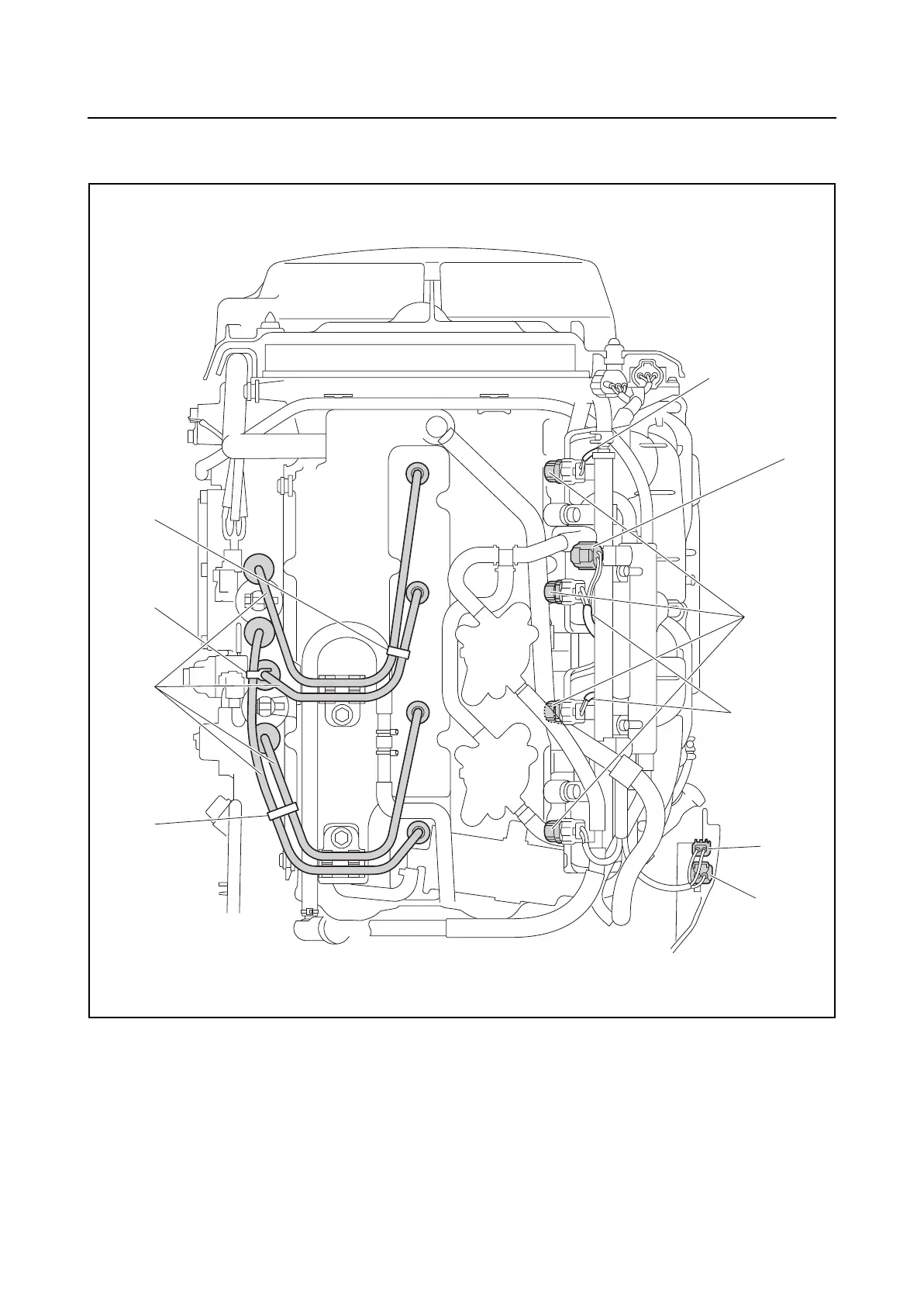

Electrical component and wiring harness routing
Rear
1. Spark plug wire
2. High-pressure fuel pump coupler
3. Fuel injector
4. Shift cut-off switch coupler
5. Shift position switch coupler
A. Route the fuel injector lead behind the
fuel rail.
B. Fasten the spark plug wires #1 and #2
using the holder.
D. Fasten the spark plug wires #2 and #4
using the holder.
E. Fasten the spark plug wires #3 and #4
using the holder.
1
E
D
B
A
2
3
4
5
A
