5-4

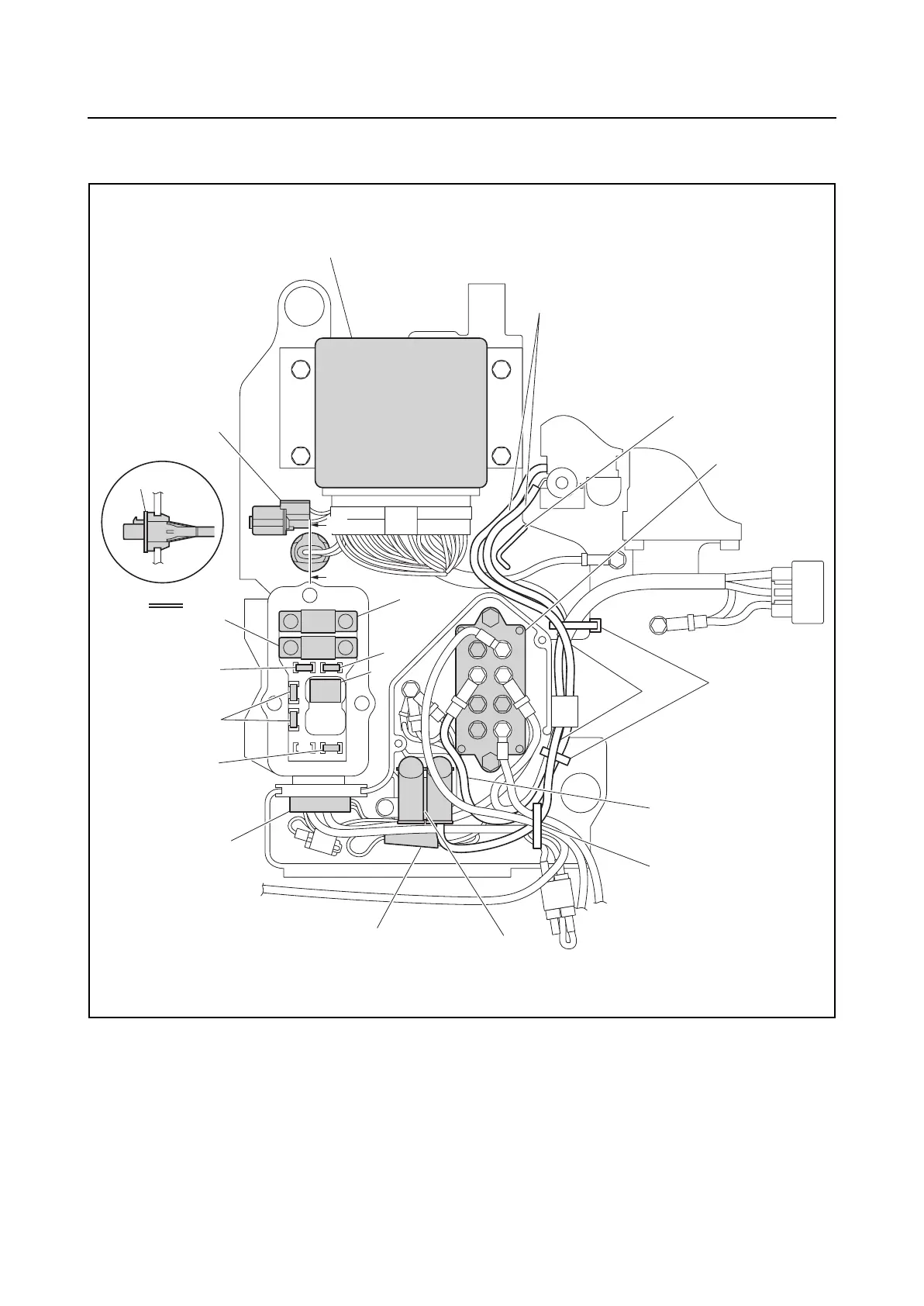

Electrical component and wiring harness routing
0
1
2
3
4
5
6
7
8
9
10
A
14. YDIS coupler
A. Route the starter motor lead and the
power supply lead to the left side of the
part “a”.
B. Do not fasten the starter motor lead
using a plastic tie.
D. Fasten the wiring harness, Rectifier Reg-
ulator lead, and power supply lead using
the plastic tie.
E. Install the starter motor lead, PTT motor
lead, and isolator lead, and tilt limiter
lead (F150A, FL150A) to the holder.
F. Route the ground lead between the PTT
relay and the starter relay.
a
A
A
13
14
A-A
1
D
2
E
F
4
5
6
3
8
9
10
7
11
12
B
A
To Next Page
