6-34

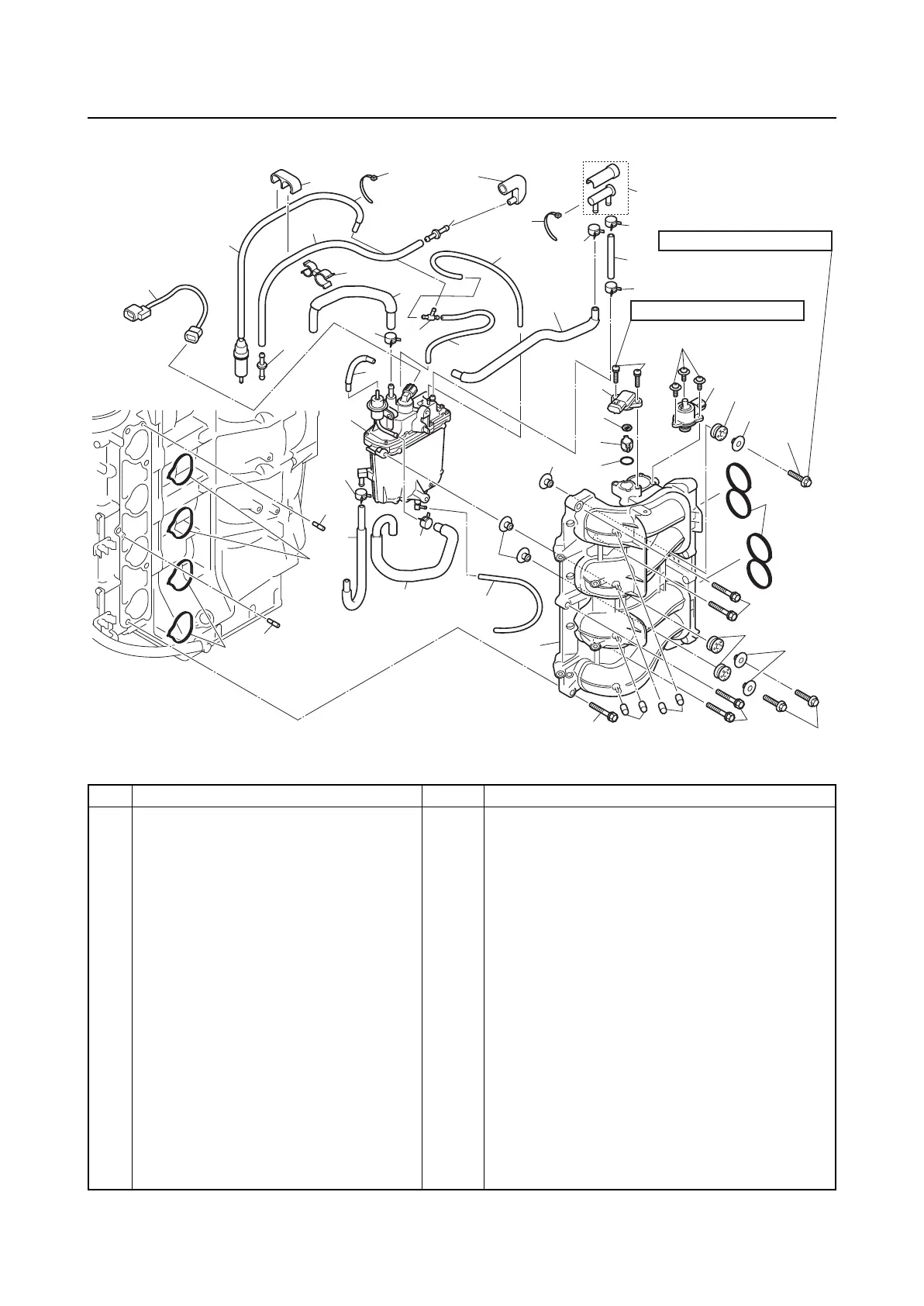

Intake manifold and vapor separator
0
1
2
3
4
5
6
7
8
9
10
A
Intake manifold and vapor separator
No. Part name Q’ty Remarks
1Dowel 2
2 Gasket 4 Not reusable
3 Hose with filter 1 Hose to joint
4 Holder 1
5 Plastic tie 2
6 Hose 1 Joint to joint
7 Joint 2
8 Hose 1 Vapor separator to fuel rail
9 Holder 1
10 Hose 1 Intake manifold to pressure regulator
11 Clamp 6
12 Joint 1
13 Hose 1 Vapor separator to joint
14 Hose 1 Vapor separator to joint
15 Vapor separator 1
16 Hose 1 Joint to filter
17 Hose 1 Joint to intake manifold
3
4
5
34
11
11
37
20
6
9
8
7
10
11
7
13
12
14
15
36
32
33
33
32
32
30
35
23
24
25
31
22
21
26
27
17
28
29
30
29
16
19
18
5
29
29
28
11
11
11
1
2
2
1
5 N·m (0.5 kgf·m, 3.7 ft·lb)
5 N·m (0.5 kgf·m, 3.7 ft·lb)
