Yamaha F150A - Page 212

6-35

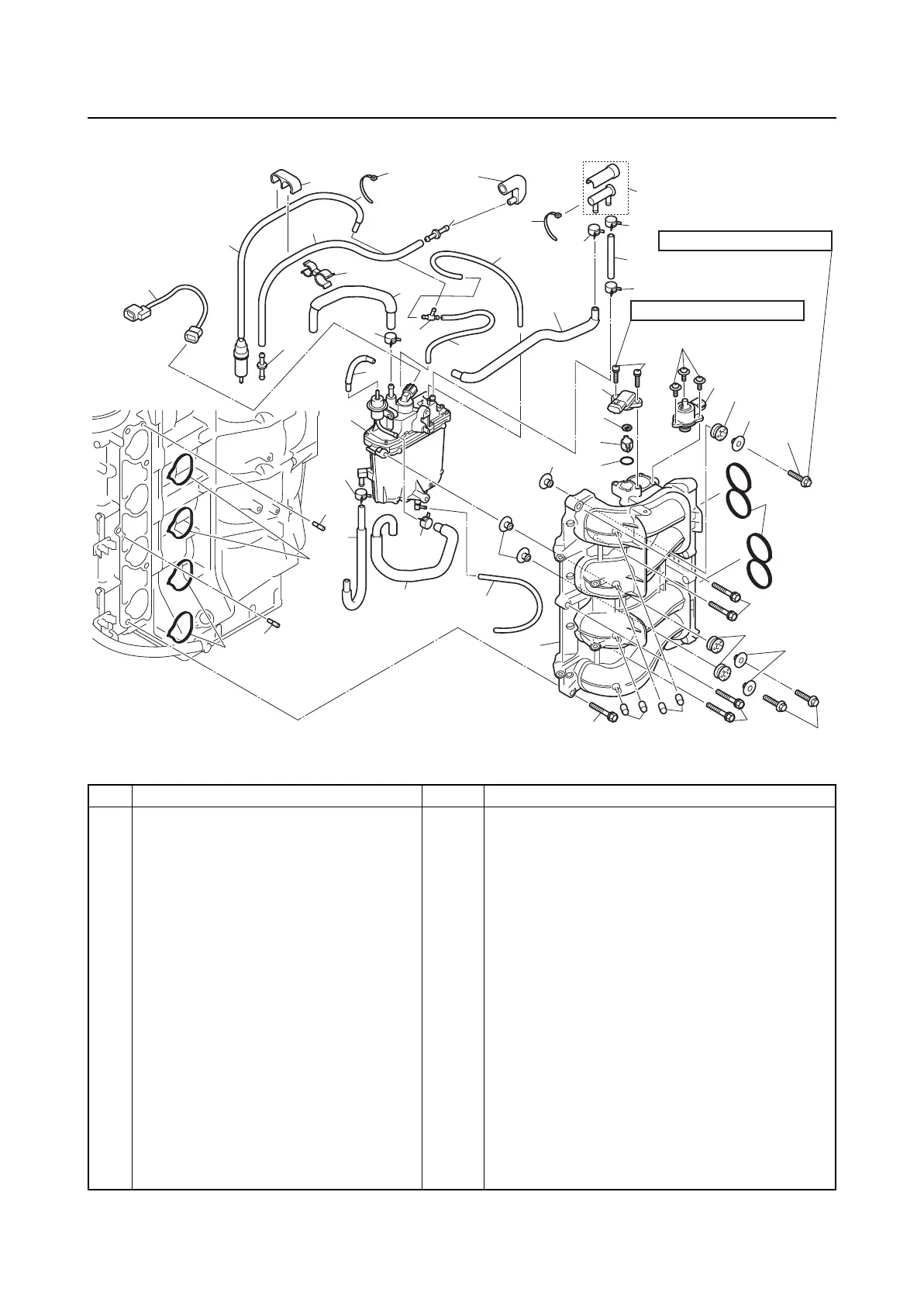

Intake manifold and vapor separator
No. Part name Q’ty Remarks
18 Filter 1
19 Hose 1 Filter to vapor separator
20 Wiring harness 1
21 Screw 2 M5
× 15 mm
22 Air pressure sensor 1
23 Filter 1
24 Cap 1
25 O-ring 1 Not reusable
26 Screw 3 M4
× 15 mm
27 ISC valve 1
28 Grommet 3
29 Collar 6
30 Bolt 3 M6
× 35 mm
31 Gasket 2 Not reusable
32 Bolt 5 M8
× 40 mm
33 Cap 4
34 Drain hose 1
3
4
5
34
11
11
37
20
6
9
8
7
10
11
7
13
12
14
15
36
32
33
33
32
32
30
35
23
24
25
31
22
21
26
27
17
28
29
30
29
16
19
18
5
29
29
28
11
11
11
1
2
2
1
5 N·m (0.5 kgf·m, 3.7 ft·lb)
5 N·m (0.5 kgf·m, 3.7 ft·lb)
