Yamaha F150A - Fuel Pump

6-11

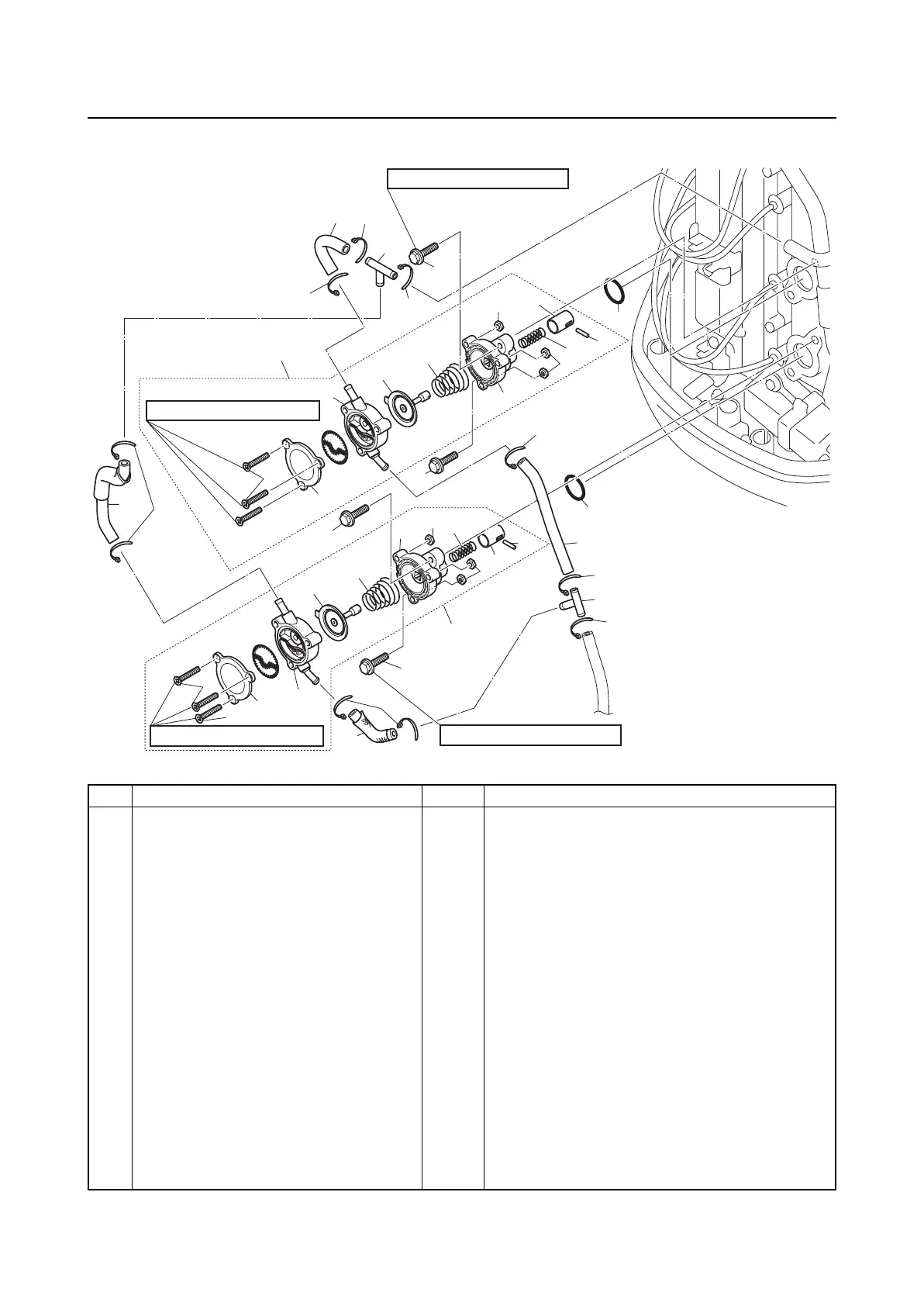

Fuel pump
Fuel pump
No. Part name Q’ty Remarks
1Screw 6 M6 × 35 mm
2Cover 2
3 Fuel pump body 2 2
4 Diaphragm 2
5Spring 2
6 Fuel pump body 1 2
7Nut 6
8Spring 2
9 Plunger 2
10 Pin 2
11 Fuel pump assembly 2
12 Hose 1 Fuel pump to joint
13 Joint 2
14 Plastic tie 10
15 Hose 1 Fuel pump to joint
16 Bolt 3 M6 × 30 mm
17 Bolt 1 M6 × 42 mm
10 N·m (1.0 kgf·m, 7.4 ft·lb)
10 N·m (1.0 kgf·m, 7.4 ft·lb)
1
1
2
3
4
1
2
3
4
5
5
4 N·m (0.4 kgf·m, 3.0 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
6
7
7
8
9
10
18
12
13
14
14
16
16
16
17
14
14
15
7
8
9
10
7
6
18
14
14
14
14
20
13
19
11
11
