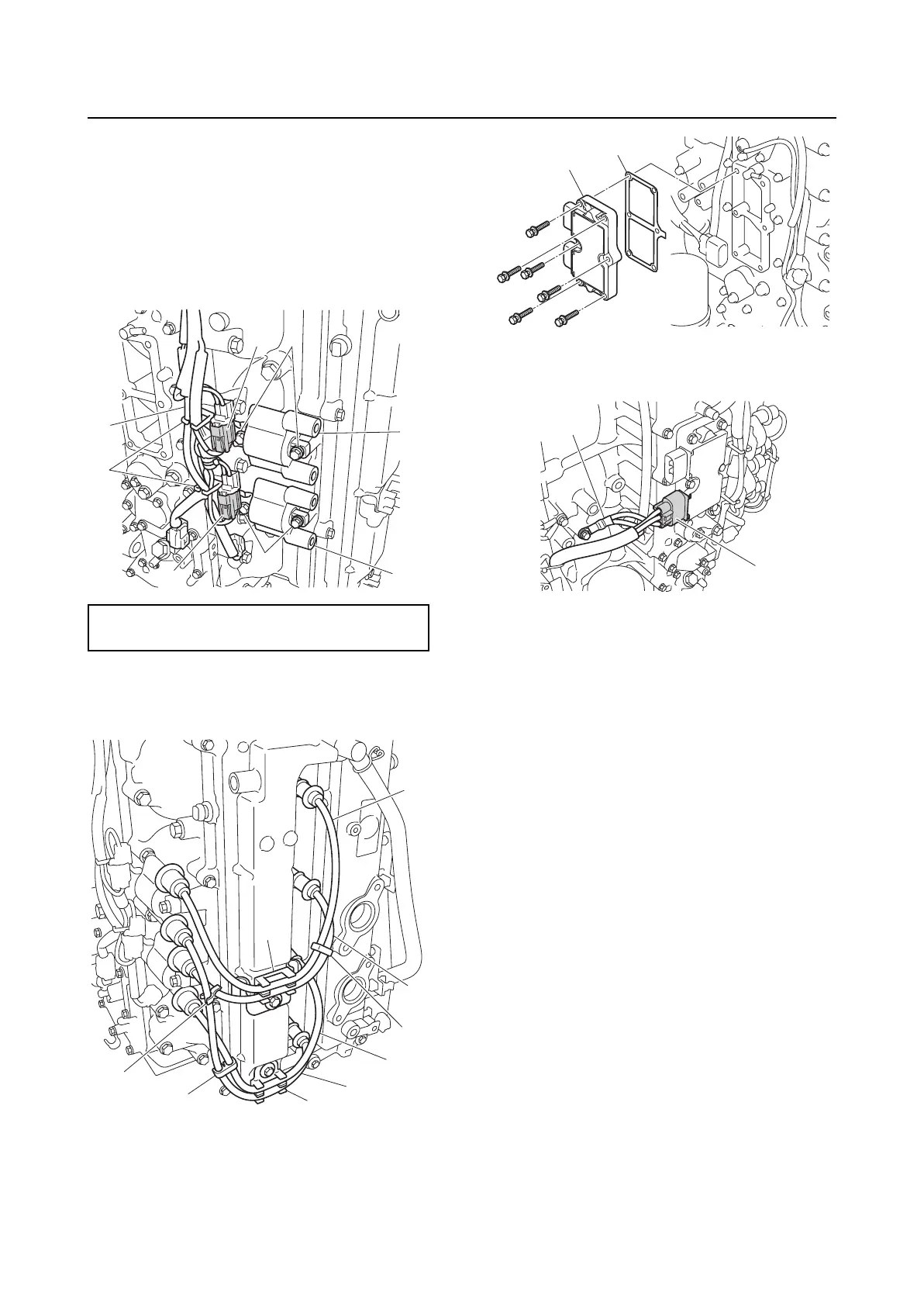

Rectifier Regulator and ignition coil
Installing the ignition coil
1. Install the ignition coils “1”, and then
tighten the ignition coil bolts “2” to the
specified torque.
2. Install the wiring harness “3” to the hold-
ers “4”, and then connect the ignition coil
couplers “a”.
3. Install the spark plug wires “1”, “2”, “3”,
and “4”, and then fasten them using the
holders “5”, “6”, and “7”.
Installing the Rectifier Regulator
1. Install a new gasket “1” and the Rectifier
Regulator “2”.
2. Connect the Rectifier Regulator coupler
“a”, and then install the ground lead “1”.
Ignition coil bolt “2”:
7 N·m (0.7 kgf·m, 5.2 ft·lb)
