Propeller shaft housing (regular rotation model)

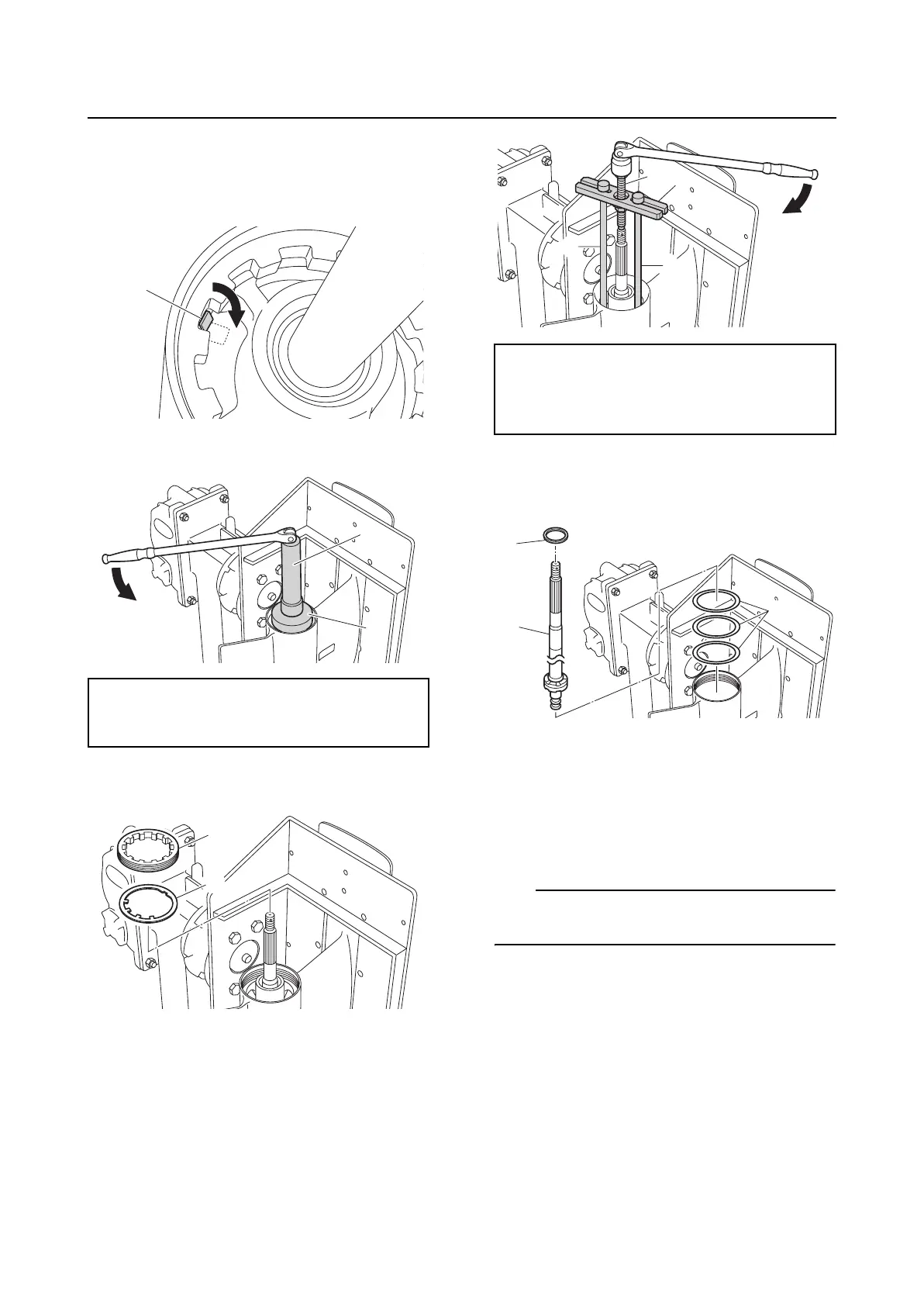

Removing the propeller shaft
housing assembly
1. Straighten the bent tab “1” on the claw
washer.
2. Loosen the ring nut.
3. Remove the ring nut “1” and claw washer
“2”.
4. Remove the propeller shaft housing
assembly and key.
5. Remove the washer “1”, propeller shaft
assembly “2”, and reverse gear shims
“3”.
Disassembling the propeller shaft
assembly
1. Remove the spring “1”, and then remove
the cross pin “2”, dog clutch “3”, slider
“4”, balls “5”, “6”, and “7”, and spring “8”.
TIP:
When removing the slider “4”, make sure that
the balls do not fall out of position.
Ring nut wrench extension “1”:
90890-06513
Ring nut wrench 4 “2”: 90890-06512
1
1
2
1
2
Bearing housing puller claw L “1”:
90890-06502
Stopper guide plate “2”: 90890-06501
Center bolt “3”: 90890-06504
1
1
2
3
1
2
3
To Next Page
