Yamaha F150A - Fuse Box

7-27
Fuse box
0
1
2
3
4
5
6
7
8
9
10
A

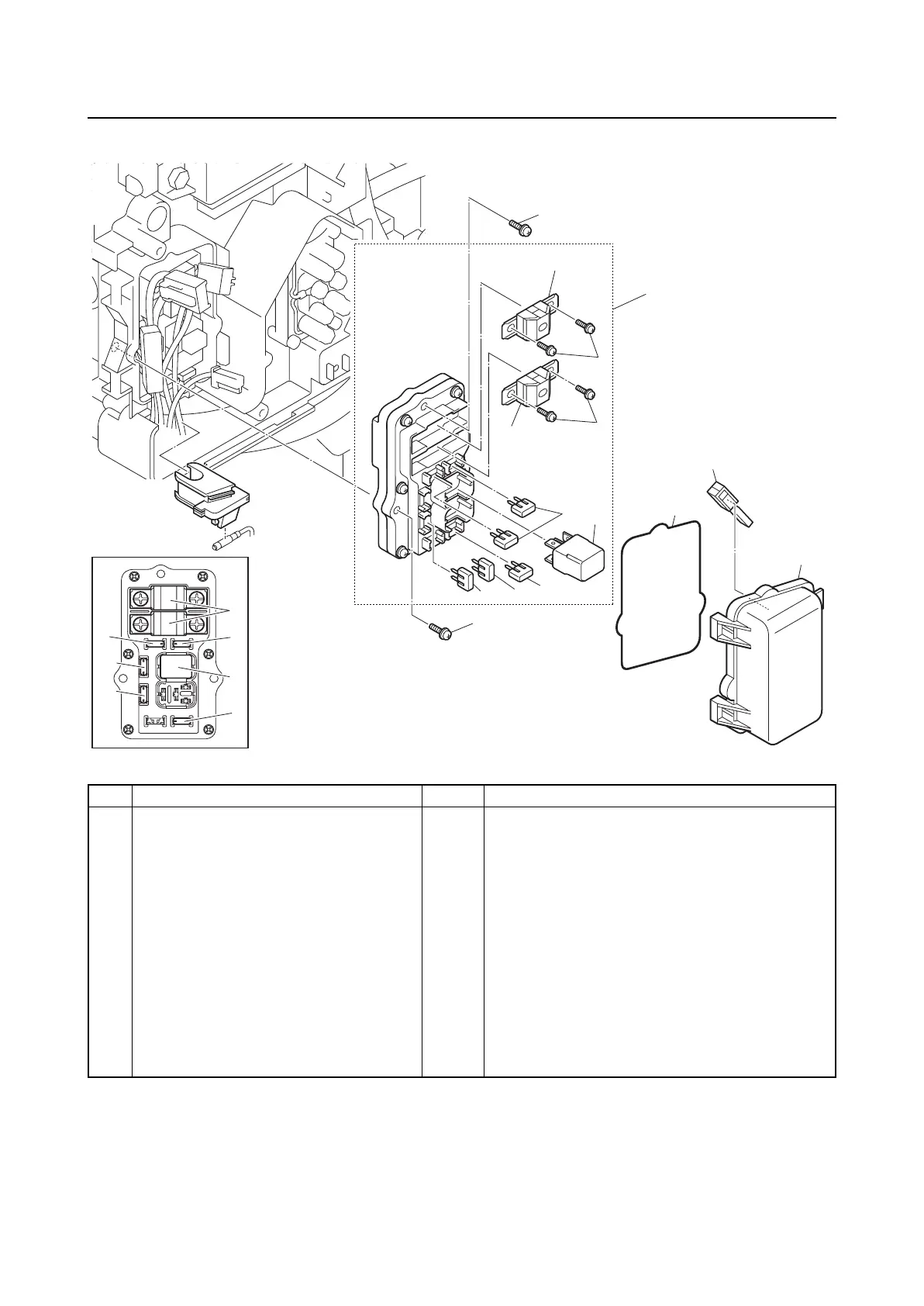

Fuse box
No. Part name Q’ty Remarks
1 Fuse box assembly 1
2Fuse 2 50 A
3Screw 4 M5 × 10 mm
4Fuse 2 20 A
5Relay 1
6Fuse 1 30 A
7Screw 3 M5 × 20 mm
8Cover 1
9Gasket 1
10 Fuse puller 1
11 Fuse 1 20 A, Spare
12 Fuse 1 30 A, Spare
