Yamaha F150A - PTT Motor

9-48

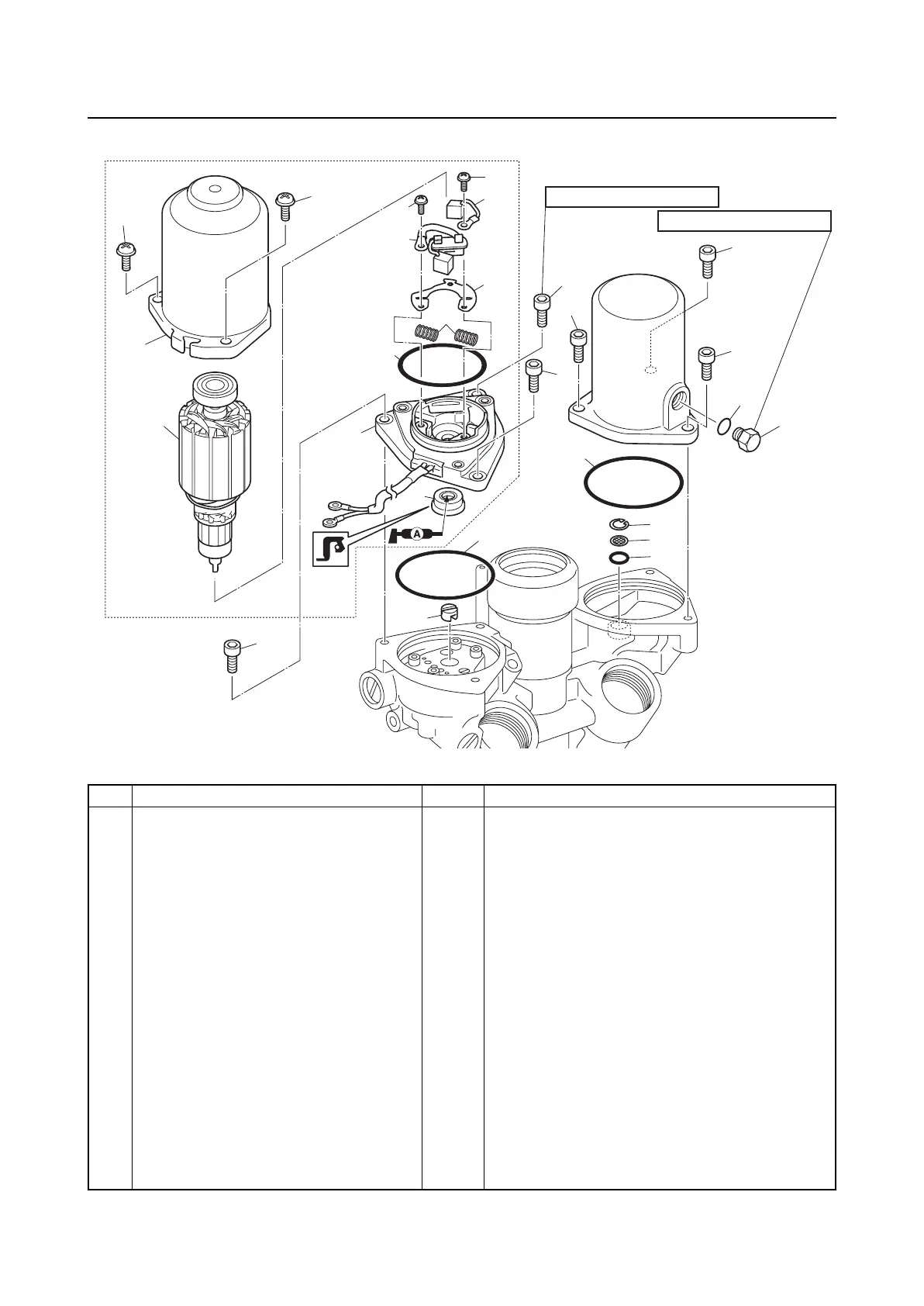

PTT motor
0
1
2
3
4
5
6
7
8
9
10
A
PTT motor
No. Part name Q’ty Remarks
1 Armature 1
2Stator 1
3Screw 3 M5 × 20 mm
4Bolt 6 M6 × 25 mm
5Screw 2 M4 × 16 mm
6 Circuit breaker 1
7 Brush holder 1
8 Brush 1
9Spring 2
10 O-ring 1 Not reusable
11 Motor base assembly 1
12 Oil seal 1 Not reusable
13 O-ring 1 Not reusable
14 Joint 1
15 O-ring 1 Not reusable
16 Reservoir cap 1
17 O-ring 1 Not reusable
4
5
5
6
7
8
9
10
3
2
3
4
15
4
4
16
17
14
1
12
11
18
19
20
7 N·m (0.7 kgf·m, 5.2 ft·lb)
7 N·m (0.7 kgf·m, 5.2 ft·lb)
4
4
13
