Yamaha F150A - Camshaft

7-33

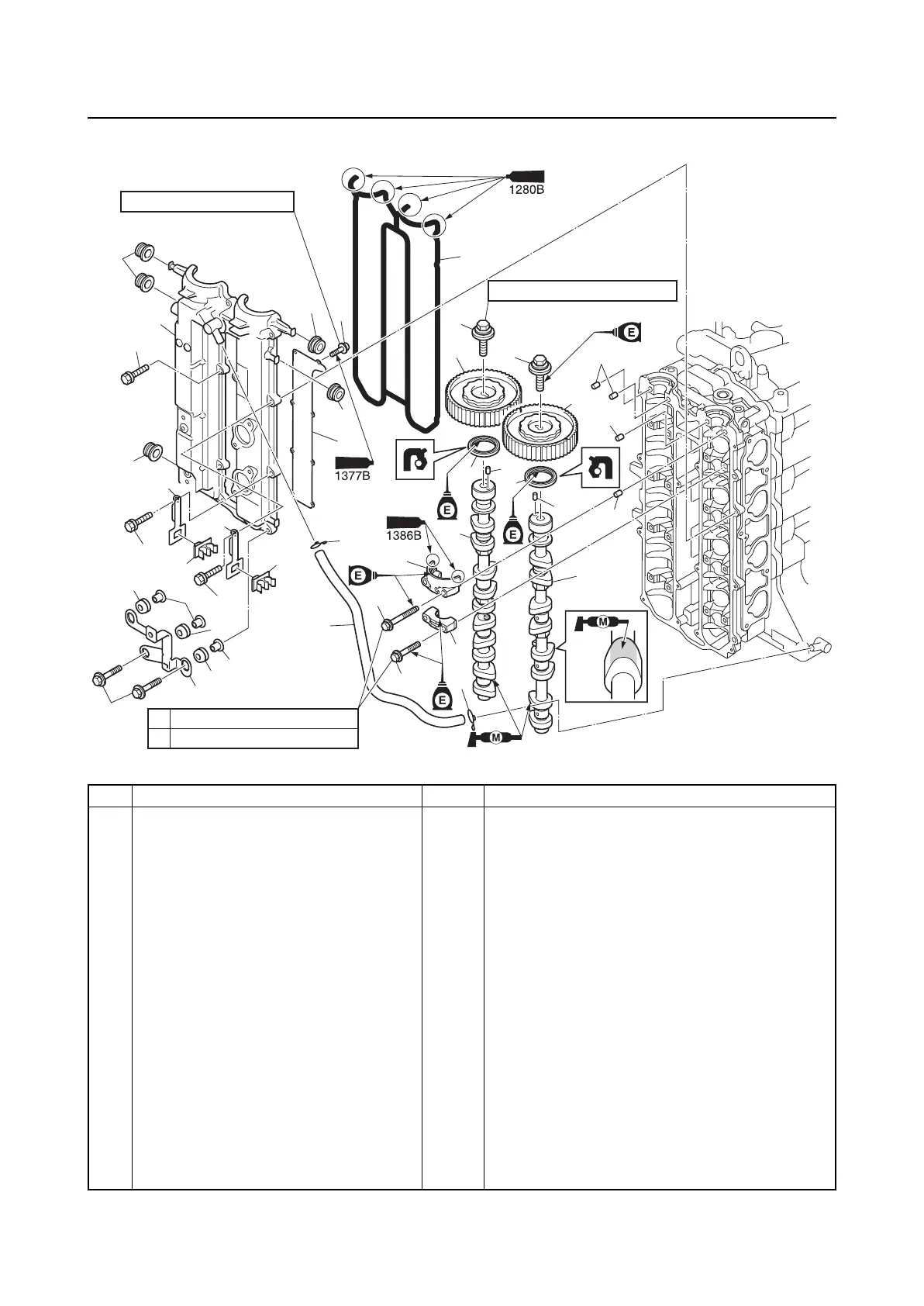

Camshaft
0
1
2
3
4
5
6
7
8
9
10
A
Camshaft
No. Part name Q’ty Remarks
1Bolt 2 M6 × 42 mm
2 Bracket 1
3Grommet 3
4 Collar 3
5Bolt 13 M6 × 30 mm
6 Holder 2
7 Bracket 2
8Grommet 5
9 Cylinder head cover 1
10 Screw 8 M4 × 8mm
11 Plate 1
12 Clamp 2
13 Hose 1 Cylinder head cover to cylinder block
14 Bolt 16 M7 × 37 mm
15 Camshaft cap 8
16 Bolt 4 M7 × 48 mm
17 Camshaft cap 2
11
9
8
10
5
5
7
5
25
23
23
22
24
22
19
19
20
20
17
16
15
14
18
21
12
12
13
8
8
8
4
4
3
3
2
1
3
24
24
6
7
6
60 N·m (6.0 kgf·m, 44.3 ft·lb)
a
b
9 N·m (0.9 kgf·m, 6.6 ft·lb)
17 N·m (1.7 kgf·m, 12.5 ft·lb)
2 N·m (0.2 kgf·m, 1.5 ft·lb)
