6-24
Throttle link
0
1
2
3
4
5
6
7
8
9
10
A

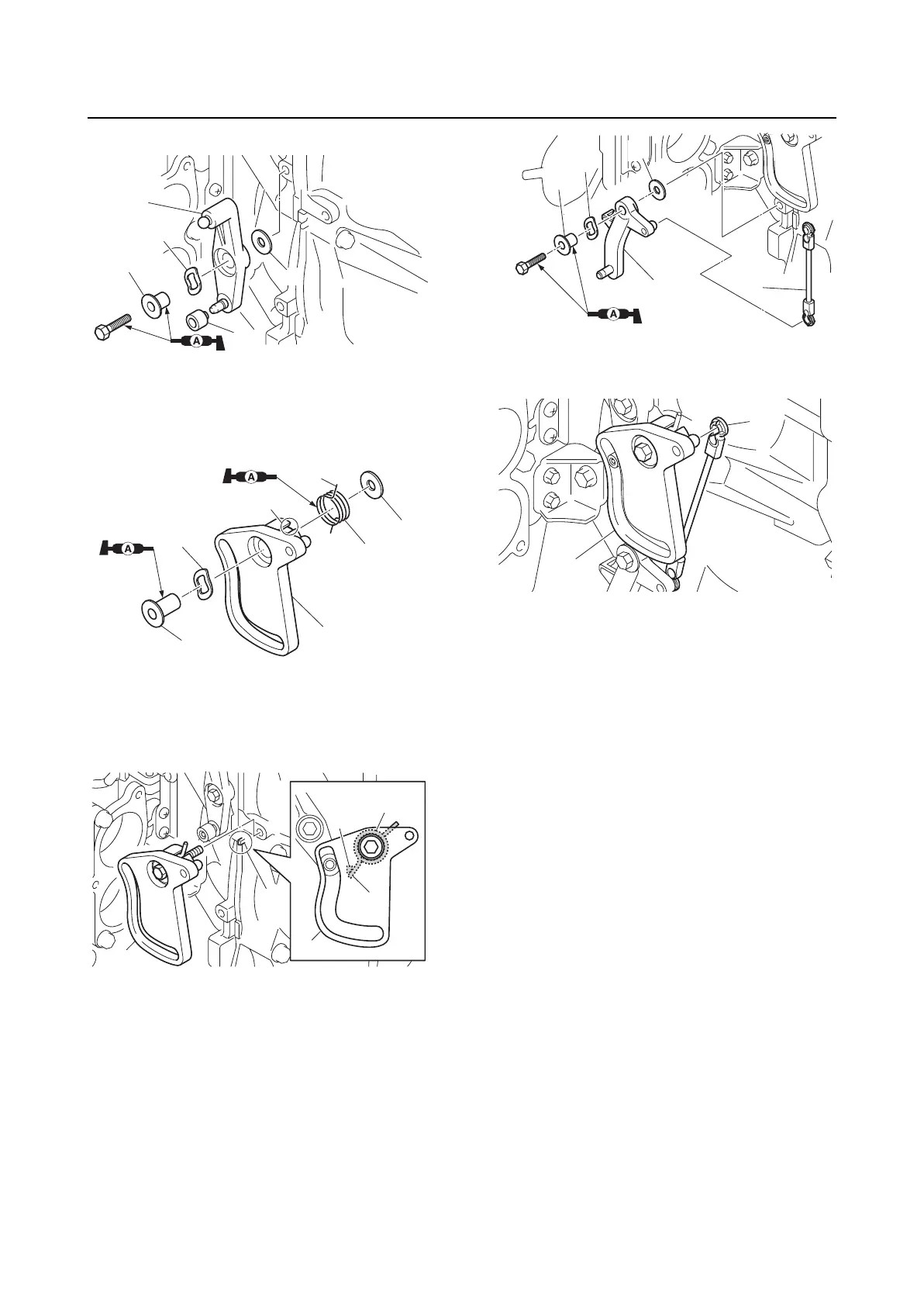

2. Install throttle lever 1 “5” to cylinder block.
3. Install the spring “1” so that the spring
end “a” fits into the groove “b” in the throt-
tle cam “2”, and then install the washer
“3”, wave washer “4”, and collar “5”.
4. Hook the end “a” of the spring “1” under
the protrusion “b” on the cylinder block,
and then install the throttle cam “2” to the
cylinder block.
5. Install the throttle link rod “1”, washer “2”,
wave washer “3”, and collar “4” onto the
throttle lever 2 “5”.
6. Install throttle lever 2 “5” to the cylinder
block.
7. Install the throttle link rod “1” to the throt-
tle cam “2”.
8. Check that throttle lever 1 throttle cam
and throttle control lever 2 move
smoothly.
1
2
3
4
5
1
2
3
4
5
a
b
2
1
a
b
b
2
1
2
3
4
5
2
1
