Yamaha F150A - Page 274

7-49

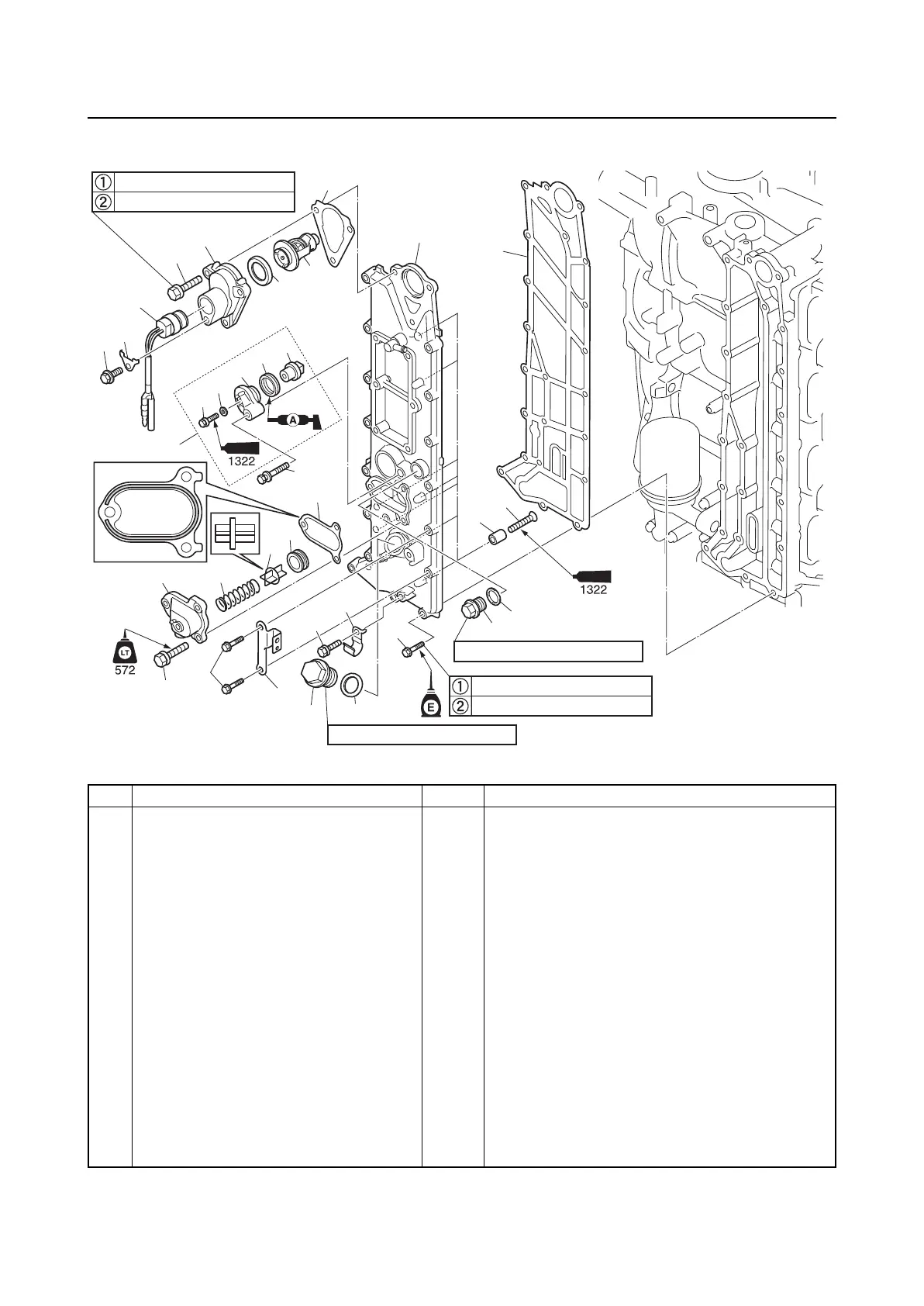

Exhaust cover
0
1
2
3
4
5
6
7
8
9
10
A
No. Part name Q’ty Remarks
18 Spring 1
19 PCV 1
20 Grommet 1
21 Gasket 1 Not reusable
22 Bolt 19 M6 × 30 mm
23 Bracket 1
24 Plug 1 M18 × 17 mm
25 Gasket 1 Not reusable
26 Bolt 1 M6 × 12 mm
27 Holder 1
28 Plug 1 M14 × 12 mm
29 Gasket 1 Not reusable
30 Exhaust cover 1
31 Gasket 1 Not reusable
32 Screw 7 M5 × 27 mm
33 Anode 7
30
31
32
33
25
24
29
28
21
20
19
18
17
16
27
22
26
22
23
4
5
7
8
6
3
1
2
15
14
13
12
11
10
9
6 N·m (0.6 kgf·m, 4.4 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
56 N·m (5.6 kgf·m, 41.3 ft·lb)
23 N·m (2.3 kgf·m, 17.0 ft·lb)
6 N·m (0.6 kgf·m, 4.4 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
