Yamaha F150A - Page 254

7-29

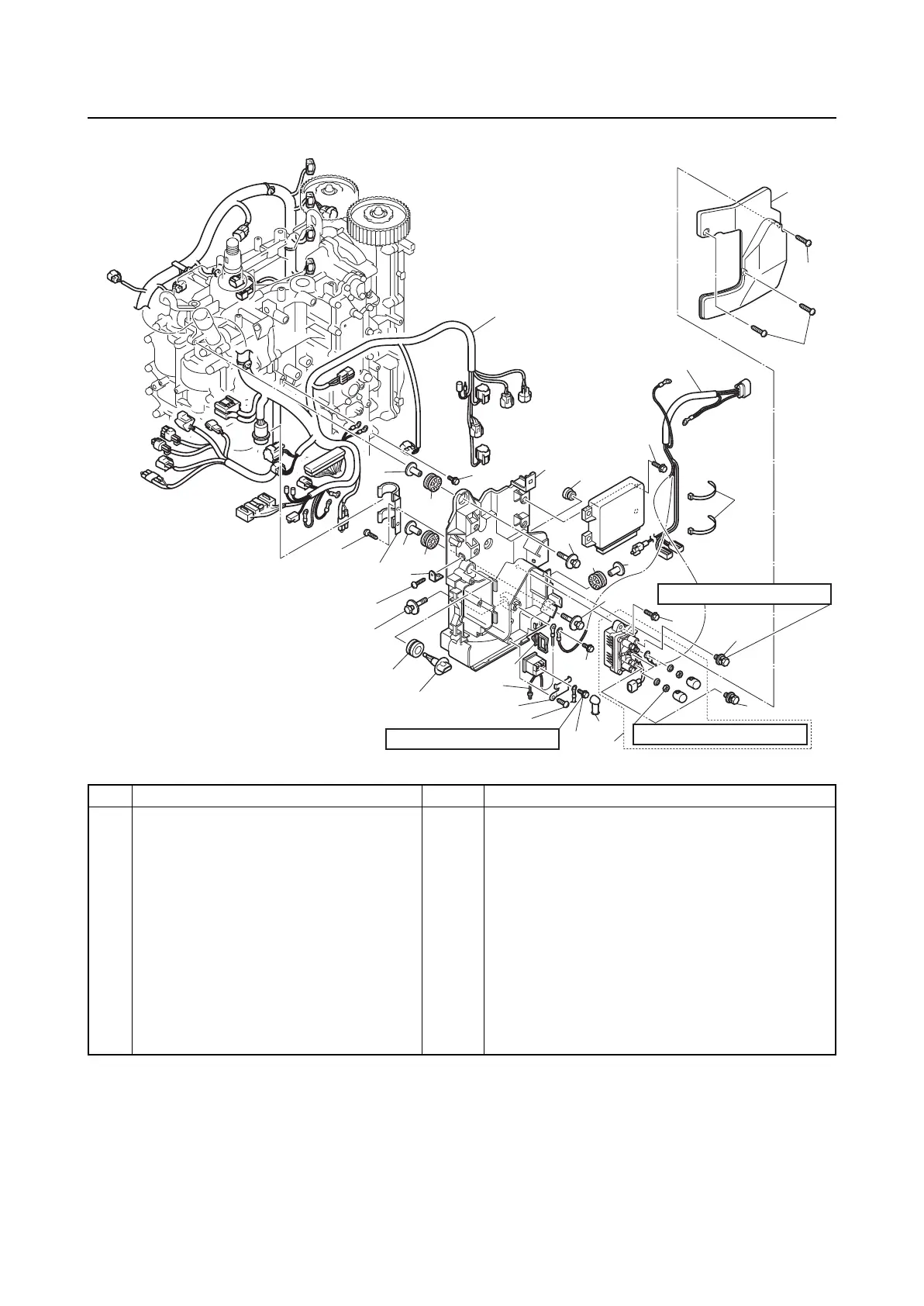

Wiring harness
0
1
2
3
4
5
6
7
8
9
10
A
No. Part name Q’ty Remarks
18 Grommet 3
19 Collar 3
20 Grommet 1
21 Junction box 1
22 Bolt 1 M6 × 16 mm
23 Screw 1 ø6 × 19 mm
24 Holder 1
25 Screw 1 ø6 × 19 mm
26 Bracket 1
27 Grommet 1
28 Air temperature sensor 1
4 N·m (0.4 kgf·m, 3.0 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
22
21
20
17
18
19
17
16
10
7
8
8
4
1
5
6
3
2
18
24
23
19
18
26
25
17
19
11
12
13
14
28
27
15
9
3
4 N·m (0.4 kgf·m, 3.0 ft·lb)
