7-59

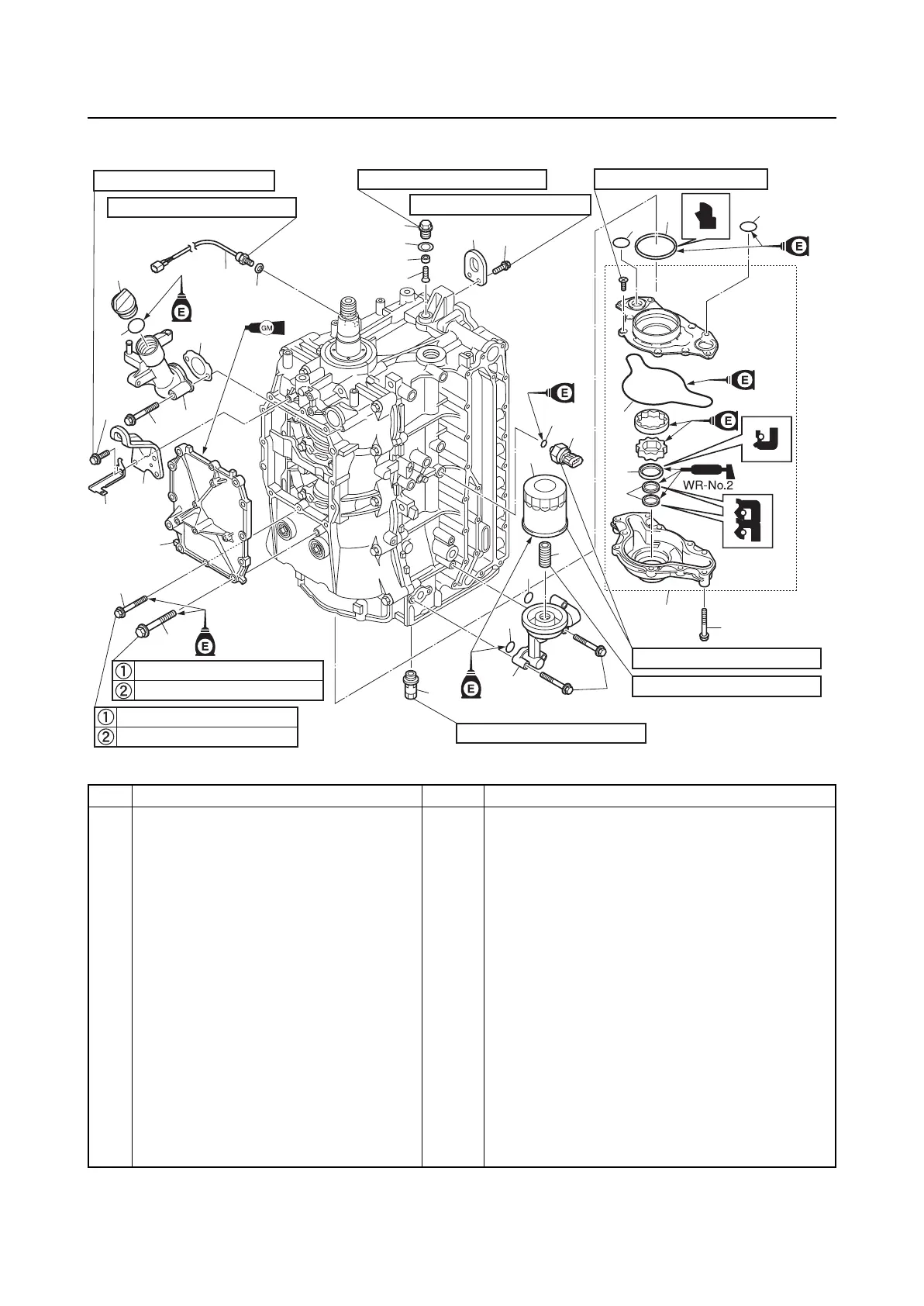

Cylinder block (F150B, FL150B)
0
1
2
3
4
5
6
7
8
9
10
A
No. Part name Q’ty Remarks
18 Engine hanger 1
19 Oil pressure sensor 1
20 O-ring 1 Not reusable
21 Oil filter 1
22 Joint 1
23 O-ring 2 Not reusable
24 Relief valve 1
25 Oil filter bracket 1
26 Bolt 4 M6 × 40 mm
27 Bolt 4 M6 × 40 mm
28 Oil pump assembly 1
29 Oil seal 2 Not reusable
30 Oil seal 1 Not reusable
31 Gasket 1 Not reusable
32 O-ring 2 Not reusable
33 Oil seal 1 Not reusable
12
13
17
16
15
14
18
6
20
19
21
22
26
25
23
23
24
1
3
2
9
7
8
10
11
6
5
33
32
32
31
30
29
27
28
4
15 N·m (1.5 kgf·m, 11.1 ft·lb)
23 N·m (2.3 kgf·m, 17.0 ft·lb)
18 N·m (1.8 kgf·m, 13.3 ft·lb)
34 N·m (3.4 kgf·m, 25.1 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
12 N·m (1.2 kgf·m, 8.9 ft·lb)
7 N·m (0.7 kgf·m, 5.2 ft·lb)
13 N·m (1.3 kgf·m, 9.6 ft·lb)
18 N·m (1.8 kgf·m, 13.3 ft·lb)
31 N·m (3.1 kgf·m, 22.9 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
32 N·m (3.2 kgf·m, 23.6 ft·lb)
