8-18

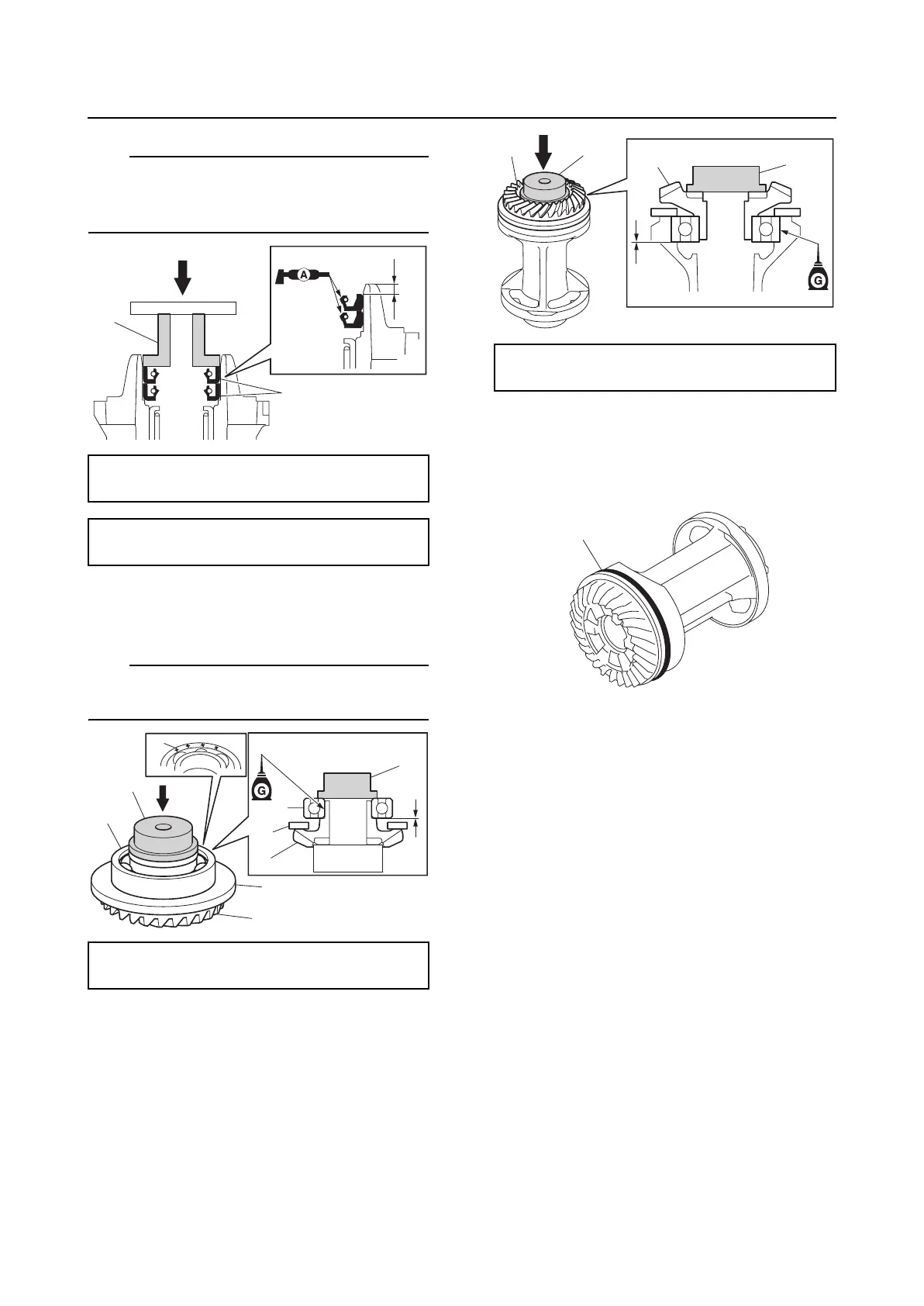

Propeller shaft housing (regular rotation model)
0
1
2
3
4
5
6
7
8
9
10
A
TIP:
Install an oil seal halfway into the propeller
shaft housing, and then install the other oil
seal.
3. Install the thrust washer “1” and a new
ball bearing “2” onto the reverse gear “3”.
TIP:
Face the bearing identification mark “a” on
the ball bearing toward the propeller.
4. Install the reverse gear assembly “1”.
5. Check that the reverse gear turns
smoothly.
6. Install a new O-ring “1”.
Bearing inner race attachment “2”:
90890-06640
Installation depth “a”:
4.75–5.25 mm (0.187–0.207 in)
Needle bearing attachment “4”:
90890-06654
1
2
a
1
2
3
4
1
2
3
4
a
Needle bearing attachment “2”:
90890-06654
1
2
1
2
1
