Yamaha F150A - Page 167

5-36
Starter motor
0
1
2
3
4
5
6
7
8
9
10
A

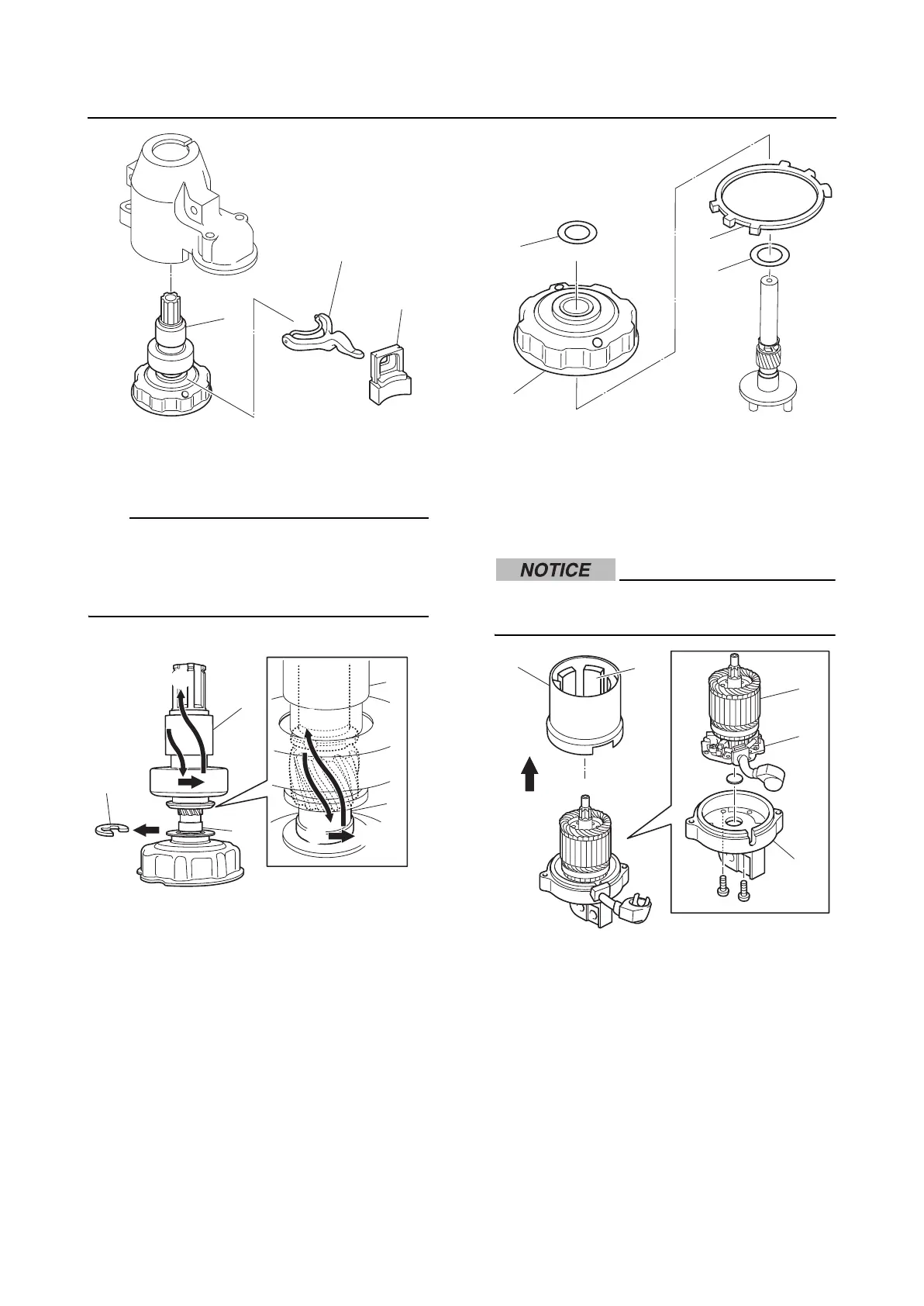

7. Remove the E-clip “1”, and then remove
the clutch assembly “2”.
TIP:
Push the clutch assembly “2” down com-
pletely onto the pinion shaft “3” in direction
“a”, turn it one spline in direction “b”, and then
remove it in direction “c”.
8. Remove the shim “1”, bracket “2”, gasket
“3”, and shim “4”.
9. Remove the stator “1”.
10. Remove the armature “2”, along with the
brush holder assembly “3”, from the
bracket “4”.
Do not disassemble the stator. Do not
remove the magnets “5” from it.
11. Remove the plate “1”, and then remove
the armature “2” from the brush holder
assembly “3”.
1
2
3
2
c
b
a
3
3
1
c
a
b
2
1
2
3
4
5
2
3
4
1
