Canister and vapor shut-off valve
0
1
2
3
4
5
6
7
8
9
10
A

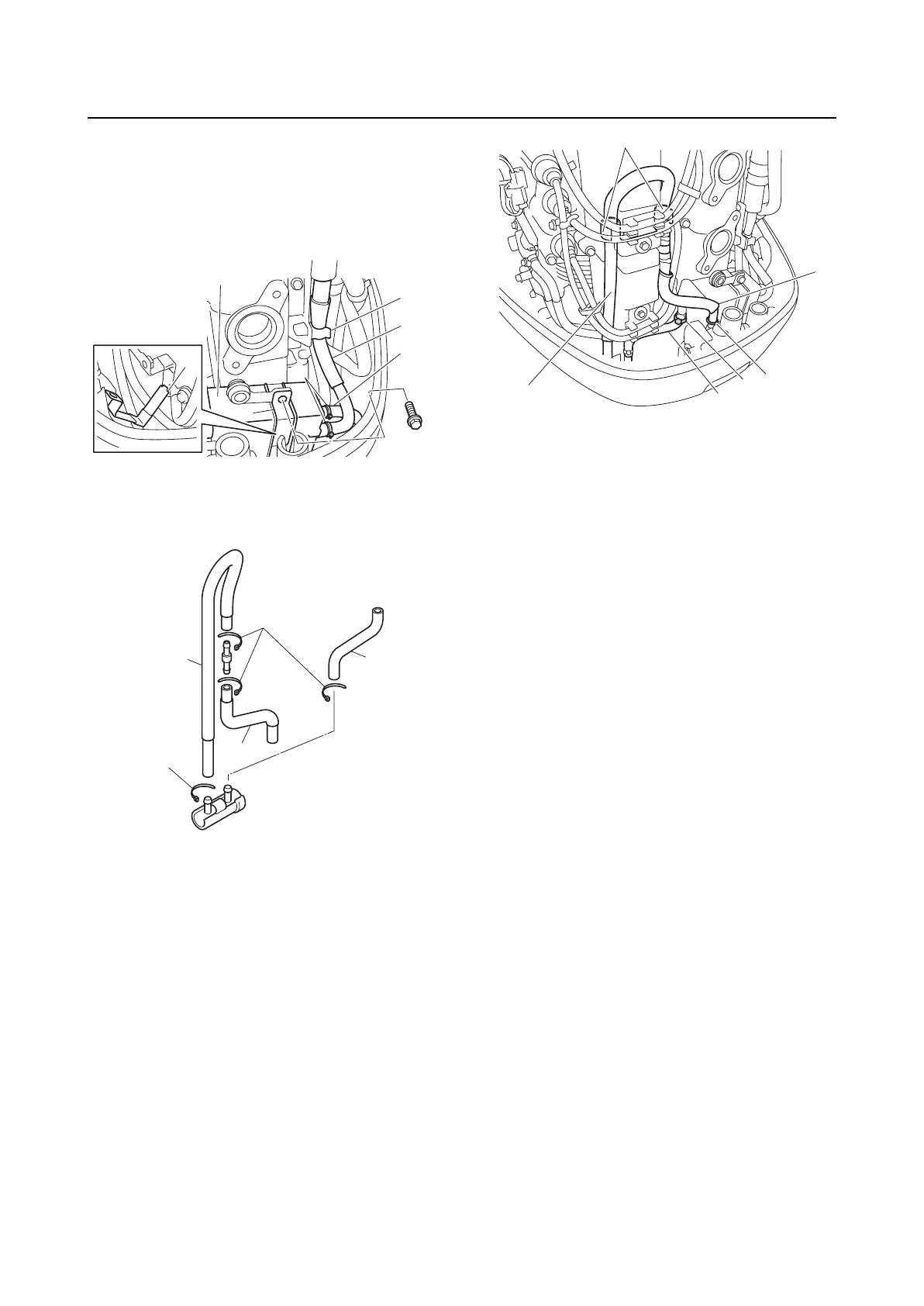

2. Connect the vapor gas hoses “3” and “4”,
and then fasten them using the plastic
ties “5”.
3. Install the vaper gas hose “4” to the
holder “6”.
4. Connect the vapor gas hoses “1”, “2”,
and “3”, and then fasten them using the
plastic ties “4”.
5. Connect the vapor gas hose “1”, and
then fasten it using the plastic tie “2”.
6. Connect the vapor gas hose “3”, and
then fasten it using the clamp “4”.
7. Install the vapor gas hose “5” to the
holder “6”.
8. Install the spark plug wires to the hold-
ers.
