Yamaha F150A - Page 313

8-6
Lower unit (regular rotation model, X-transom model)
0
1
2
3
4
5
6
7
8
9
10
A

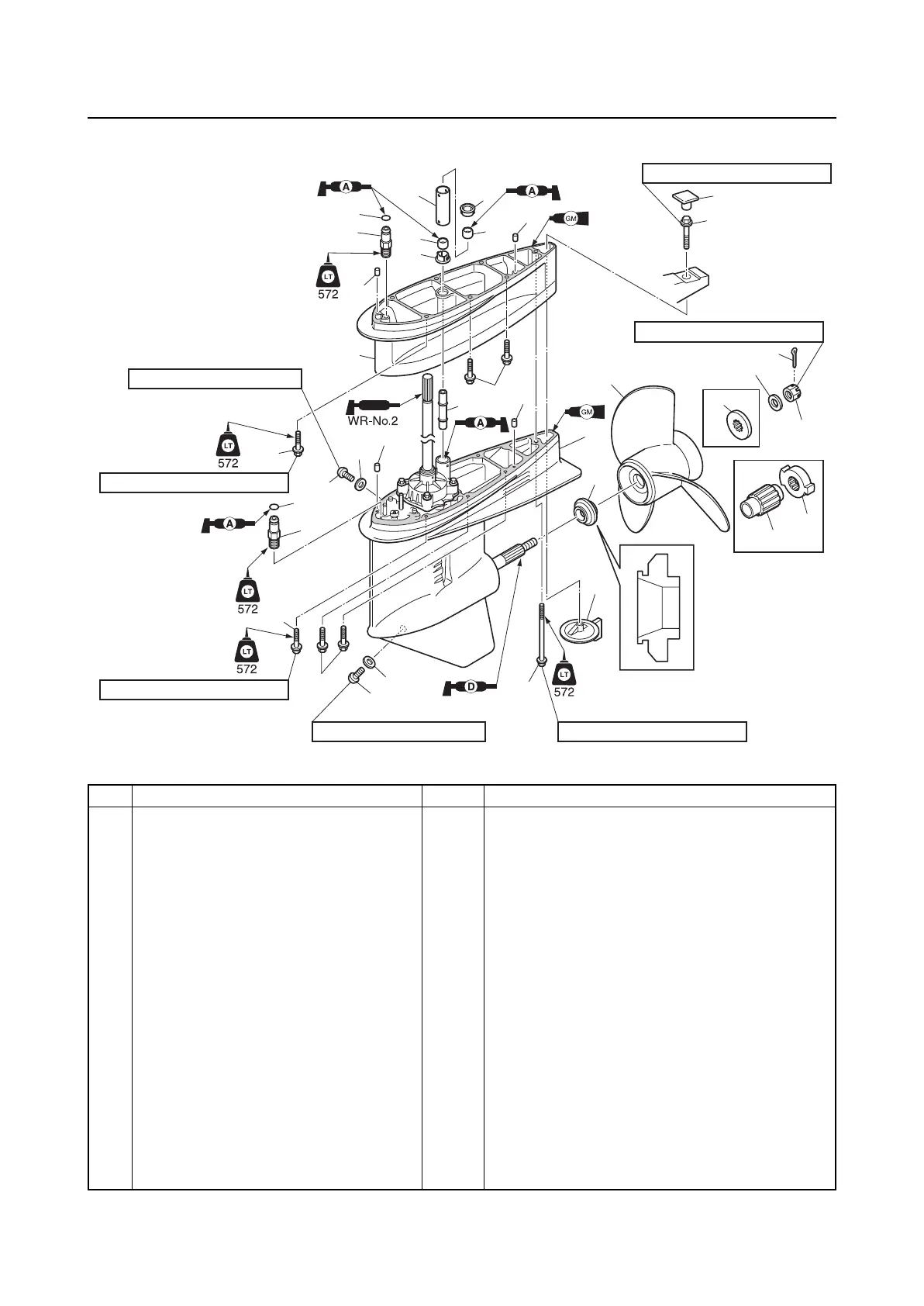

Lower unit (regular rotation model, X-transom model)
No. Part name Q’ty Remarks
1 Hose nipple 2
2 O-ring 2 Not reusable
3 Check screw 1
4 Gasket 2 Not reusable
5Bolt 12 M10 × 45 mm
6 Extension 1
7Dowel 4
8Cover 2
9Seal 2
10 Water pipe 1
11 Water pipe 1
12 Grommet 1
13 Bolt 1 M10 × 45 mm
14 Lower unit 1
15 Spacer 1
16 Propeller 1
17 Spacer 1 Except SDS propeller
23
15
14
18
17
19
20
16
7
7
3
4
5
5
13
12
7
10
11
8
9
9
8
5
5
7
25
4
24
6
1
2
2
1
21
22
43 N·m (4.3 kgf·m, 31.7 ft·lb)
48 N·m (4.8 kgf·m, 35.4 ft·lb)
48 N·m (4.8 kgf·m, 35.4 ft·lb)
48 N·m (4.8 kgf·m, 35.4 ft·lb)
55 N·m (5.5 kgf·m, 40.6 ft·lb)
9 N·m (0.9 kgf·m, 6.6 ft·lb)
9 N·m (0.9 kgf·m, 6.6 ft·lb)
