Yamaha F150A - Page 388

9-1

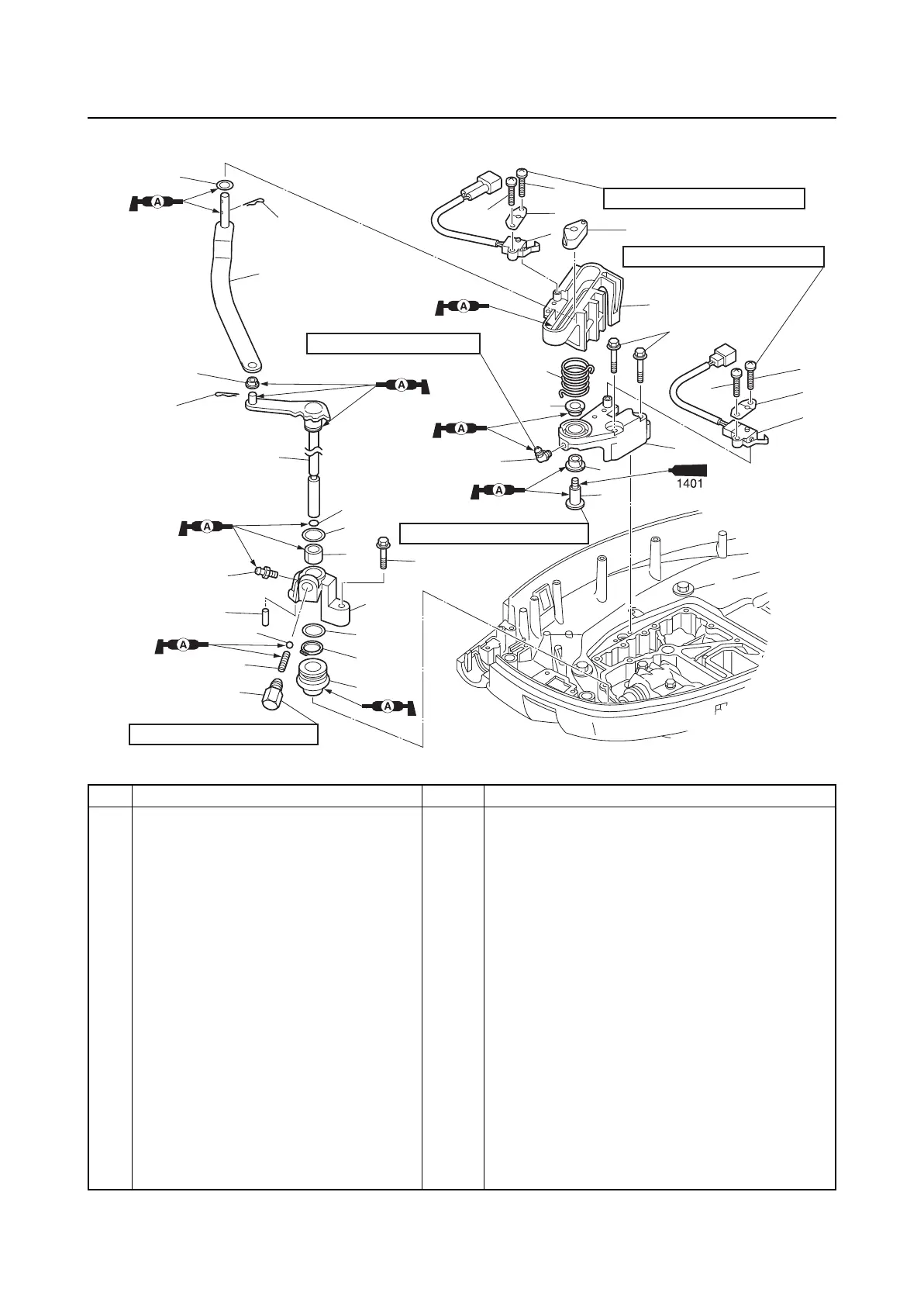

Shift rod and shift bracket
Shift rod and shift bracket
No. Part name Q’ty Remarks
1 Shift position switch 1
2Screw 4 M4 × 16 mm
3Plate 2
4 Clip 2
5 Bushing 1
6 Bracket 1
7 Washer 1
8 Shift lever 1
9 Shift cut-off switch 1
10 Spring 1
11 Bushing 2
12 Bolt 2 M6 × 50 mm
13 Bracket 1
14 Grease nipple 1
15 Bolt 1
16 Grommet 1
17 Circlip 1
2
1
2
2
3
3
9
2
4
4
5
6
7
8
10
11
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
1 N·m (0.1 kgf·m, 0.7 ft·lb)
2.5 N·m (0.25 kgf·m, 1.84 ft·lb)
2.5 N·m (0.25 kgf·m, 1.84 ft·lb)
19 N·m (1.9 kgf·m, 14.0 ft·lb)
18 N·m (1.8 kgf·m, 13.3 ft·lb)
