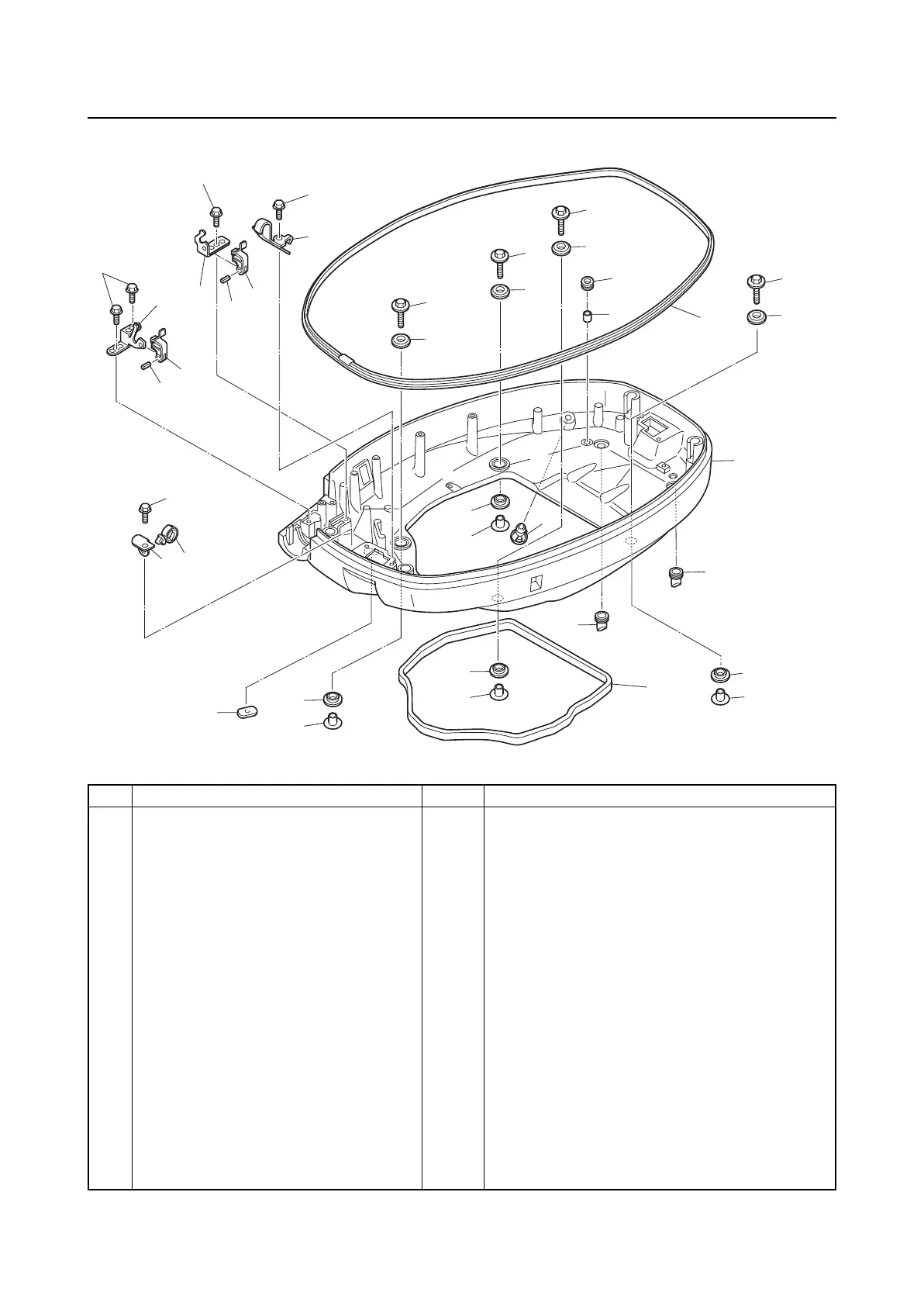

Bottom cowling
Bottom cowling
No. Part name Q’ty Remarks
1Bolt 5 M6 × 20 mm
2Pin 2
3 Holder 2
4 Bracket 1
5 Bracket 1
6 Bracket 1
7 Clamp 1
8 Holder 1
9Grommet 4
10 Collar 4
11 Rubber seal 1
12 Water outlet 1
13 Grommet 2
14 Bolt 4 M8 × 35 mm
15 Grommet 8
16 Collar 4
17 Rubber seal 1
6
4
1
3
3
2
2
5
1
1
1
8
10
9
14
15
15
16
13
11
13
7
12
17
18
19
14
15
14
15
15
16
14
15
15
16
15
16
