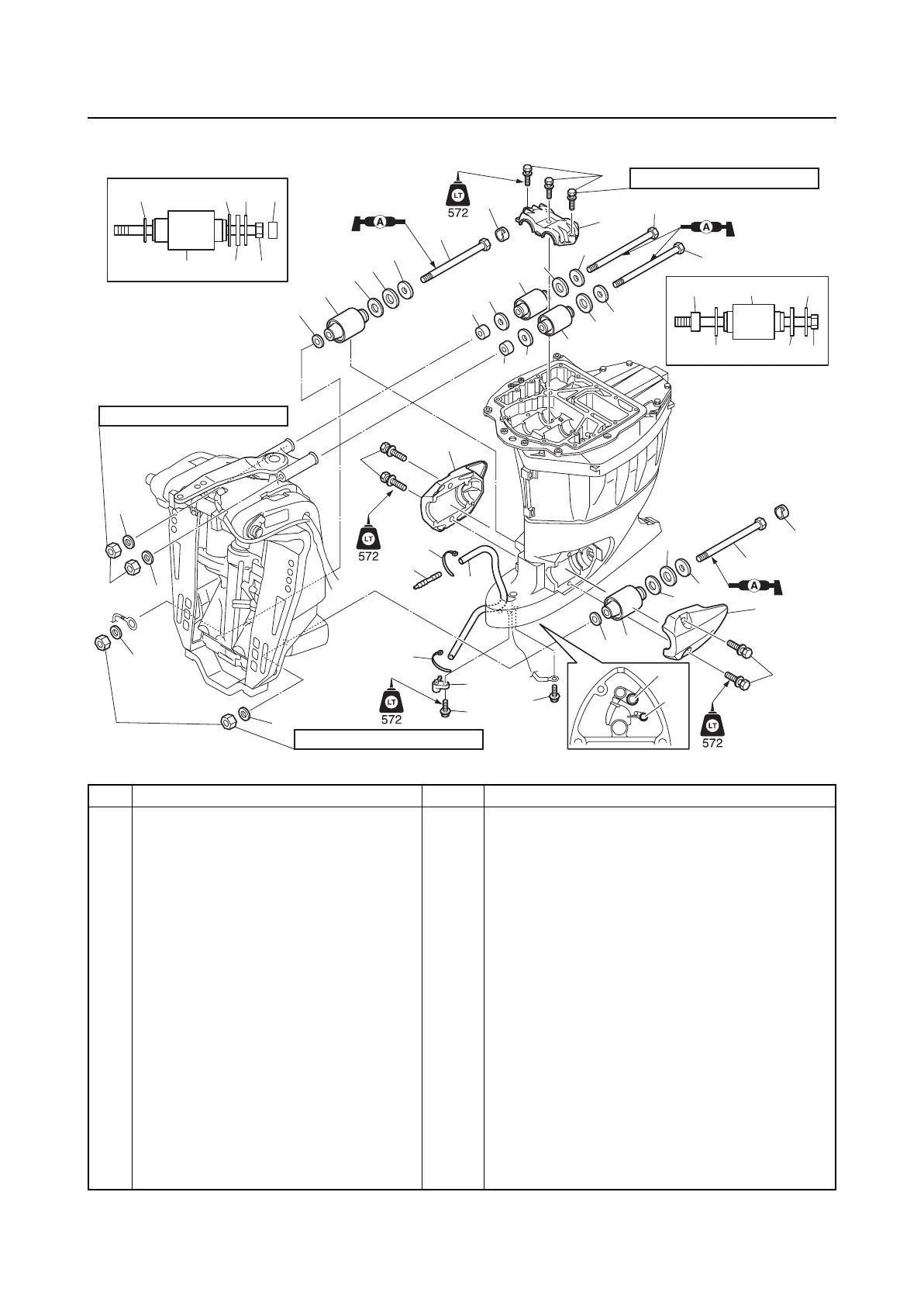

Upper case and mounts
Upper case and mounts
No. Part name Q’ty Remarks
1 Self-locking nut 2
2Nut 2
3 Washer 4
4 Bolt 4 M10 × 40 mm
5Cover 1
6Cover 1
7 Washer 2
8 Lower mount 2
9 Washer 2
10 Washer 2
11 Washer 2
12 Bolt 2 M14 × 225 mm
13 Cap 2
14 Collar 2
15 Washer 4
16 Upper mount 2
17 Bracket 1
1
2
3
3
3
3
4
4
5
6
7
7
7
8
8
8
9
9
9
10
10
10
11
11
11
12
12
12
13
13
13
14
14
14
15
15
15
15
15
15
16
16
16
17
18
19
19
19
20
20
20
21
21
22
23
23
24
25
26
26
55 N·m (5.5 kgf·m, 40.6 ft·lb)
72 N·m (7.2 kgf·m, 53.1 ft·lb)
72 N·m (7.2 kgf·m, 53.1 ft·lb)
