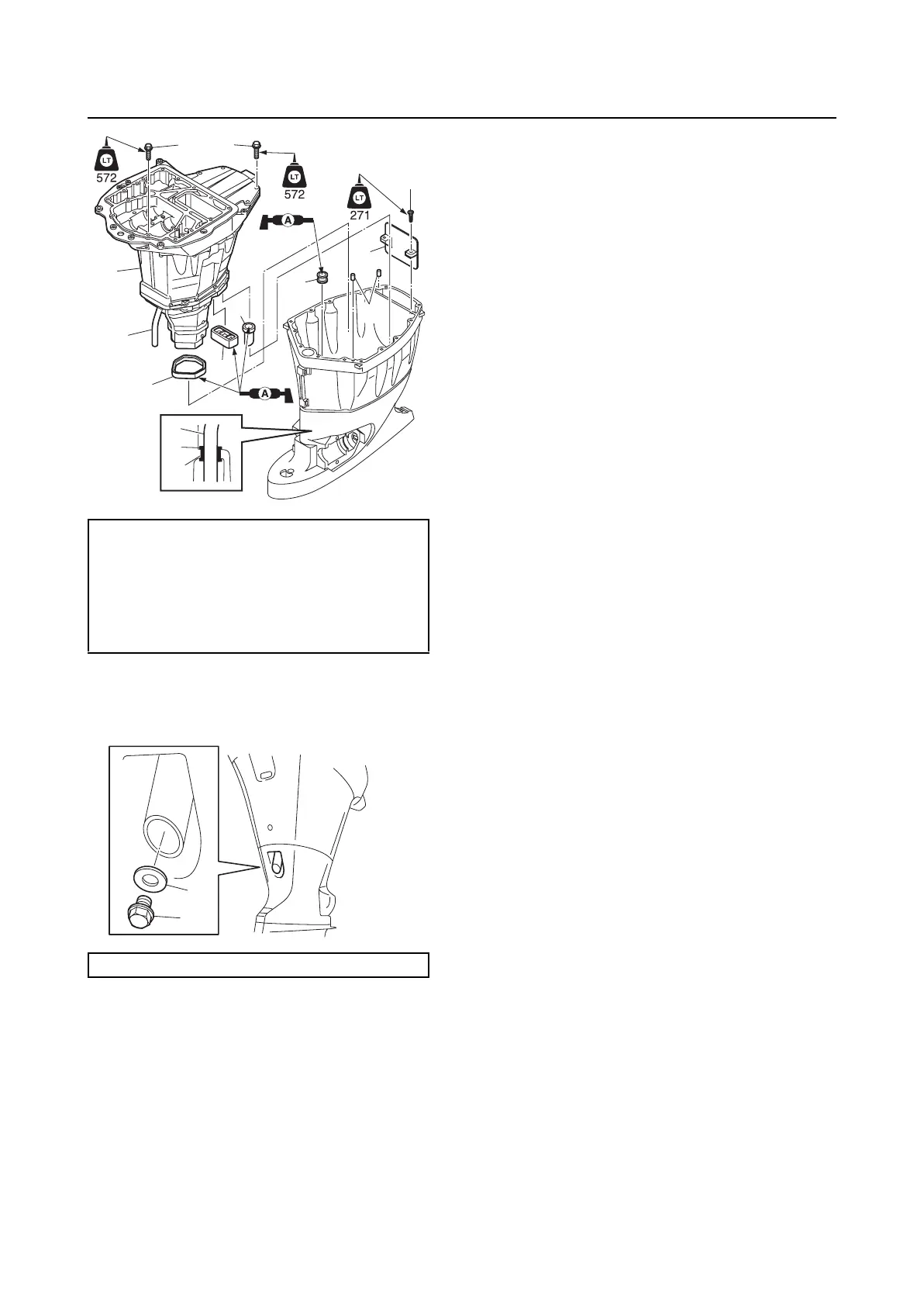

Upper case
7. Install a new gasket “1” and the drain bolt
“2”, and then tighten the drain bolt “2” to
the specified torque.
Baffle plate screw “3”:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
Oil pan assembly bolt (M8) “10”:
20 N·m (2.0 kgf·m, 14.8 ft·lb)
Oil pan assembly bolt (M10) “11”:
42 N·m (4.2 kgf·m, 31.0 ft·lb)
Drain bolt “2”: 28 N·m (2.8 kgf·m, 20.7 ft·lb)
