Yamaha F150A - Page 414

9-27

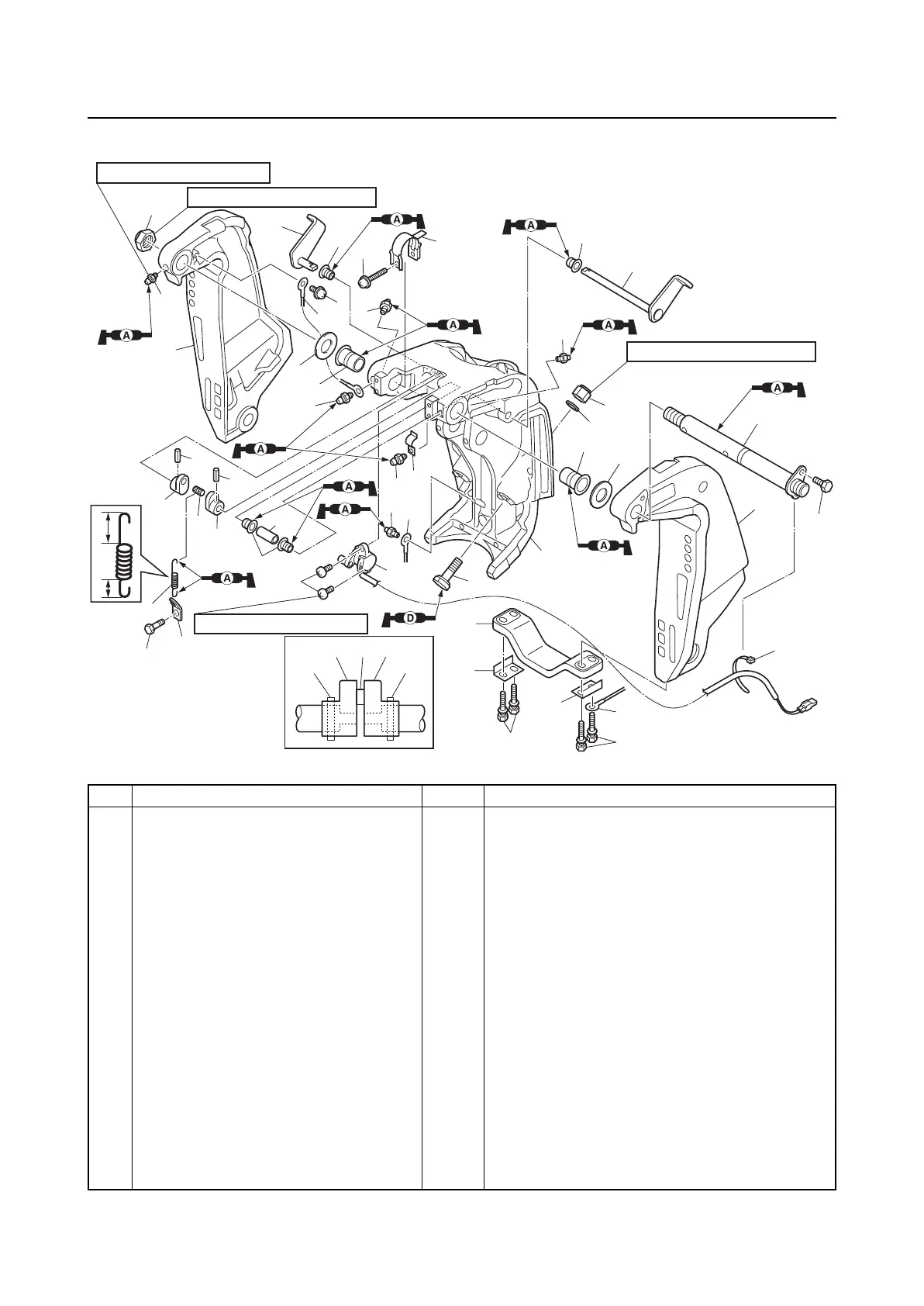

Clamp bracket and swivel bracket
Clamp bracket and swivel bracket
No. Part name Q’ty Remarks
1 Self-locking nut 1
2 Clamp bracket (STBD) 1
3 Grease nipple 6
4 Ground lead 1
5Screw 1 M6 × 10 mm
6 Ground lead 1
7 Tilt stop lever 1
8 Bushing 2
9 Tilt stop lever 1
10 Bushing 2
11 Washer 2
12 Clamp bracket (PORT) 1
13 Through tube 1
14 Bolt 1 M8 × 20 mm
15 Plastic tie 1
16 Swivel bracket 1
17 Trim stopper 2
1
2
3
3
3
3
3
3
4
5
6
8
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
21
22
22
23
24
25
26
27
27
28
26
26
26
2727 28
29
30
31
32
33
34
35
36
3 N·m (0.3 kgf·m, 2.2 ft·lb)
15 N·m (1.5 kgf·m, 11.1 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
48 N·m (4.8 kgf·m, 35.4 ft·lb)
