Yamaha F150A - Page 442

9-55

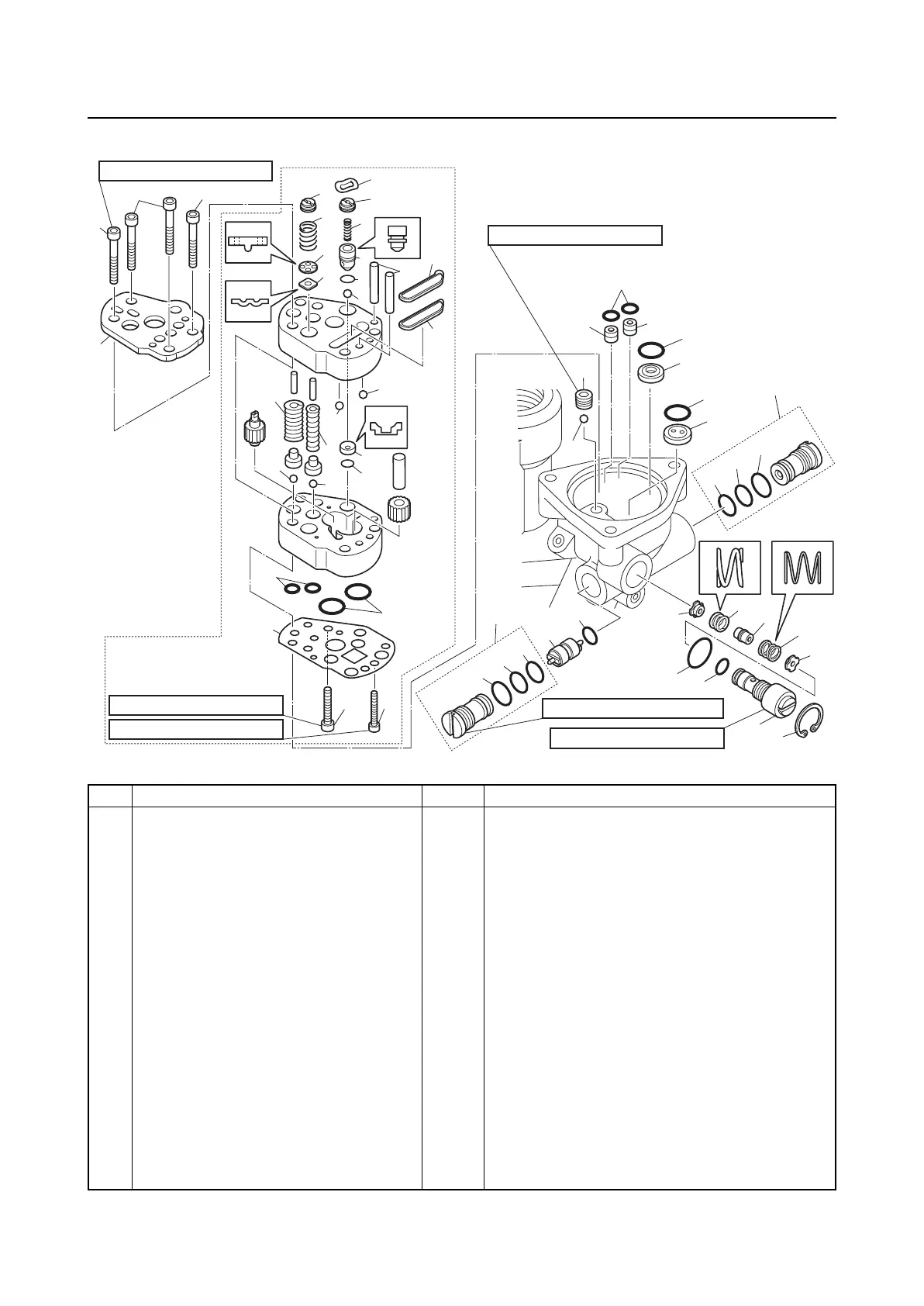

PTT gear pump
No. Part name Q’ty Remarks
18 Spring 1
19 Ball 2 3.15 mm (0.12 in) (reference data)
20 Spring 1
21 O-ring 4 Not reusable
22 O-ring 4 Not reusable
23 Bracket 1
24 Bolt 1 M4 × 25 mm
25 Bolt 1 M5 × 25 mm
26 Plug 1
27 Ball 1 3.94 mm(0.16 in) (reference data)
28 Port plug 2
29 Spacer 1
30 Spacer 1
31 O-ring 1 Not reusable
32 Shuttle piston 1
33 O-ring 2 Not reusable
34 O-ring 2 Not reusable
1
7 N·m (0.7 kgf·m, 5.2 ft·lb)
2
3
4
5
6
4
9
10
11
12
13
14
1
1
15
15
18
20
19
16
17
21
22
23
24
7
8
19
25
7 N·m (0.7 kgf·m, 5.2 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
22
28
28
21
21
30
29
33
34
35
36
35
34
33
37
38
39
36
40
41
42
43
26
27
3 N·m (0.3 kgf·m, 2.2 ft·lb)
32
31
11 N·m (1.1 kgf·m, 8.1 ft·lb)
4 N·m (0.4 kgf·m, 3.0 ft·lb)
44
44
