Yamaha F150A - Page 490

A-14

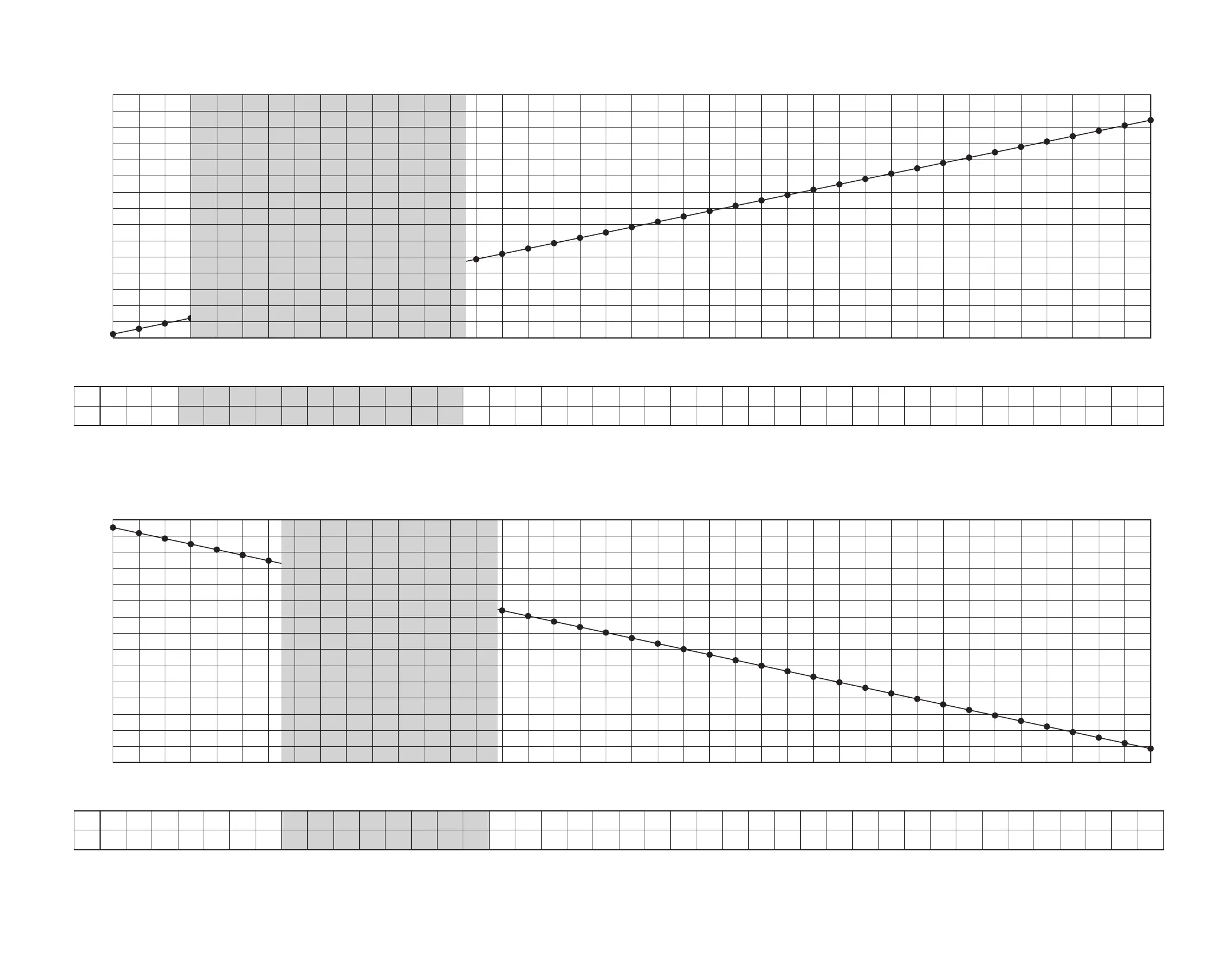

Forward gear shim (T1) selection chart (F150B)
A. Backlash measurement (BL1)
B. Shim thickness adjustment
Reverse gear shim (T2) selection chart (F150B)
A. Backlash measurement (BL2)
B. Shim thickness adjustment
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200A
–0.28 –0.25 –0.21 –0.18 –0.15 –0.11 –0.08 –0.04 –0.01 0.02 0.06 0.09 0.13 0.16 0.19 0.23 0.26 0.29 0.33 0.36 0.40 0.43 0.46 0.50 0.53 0.57 0.60 0.63 0.67 0.70 0.73 0.77 0.80 0.84 0.87 0.90 0.94 0.97 1.00 1.04 1.07 B
1.20
1.10
1.00
0.90
0.80
0.70
0.60
0.50
0.40
0.30
0.20
0.10
0
–0.10
–0.20
–0.30
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200
B (mm)
A (1/100 mm)
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200A
0.36 0.33 0.29 0.26 0.23 0.19 0.16 0.12 0.09 0.06 0.02 –0.01 –0.05 –0.08 –0.11 –0.15 –0.18 –0.21 –0.25 –0.28 –0.32 –0.35 –0.38 –0.42 –0.45 –0.49 –0.52 –0.55 –0.59 –0.62 –0.65 –0.69 –0.72 –0.76 –0.79 –0.82 –0.86 –0.89 –0.92 –0.96 –0.99 B
0.40
0.30
0.20
0.10
0
–0.10
–0.20
–0.30
–0.40
–0.50
–0.60
–0.70
–0.80
–0.90
–1.00
–1.10
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200
B (mm)
A (1/100 mm)
