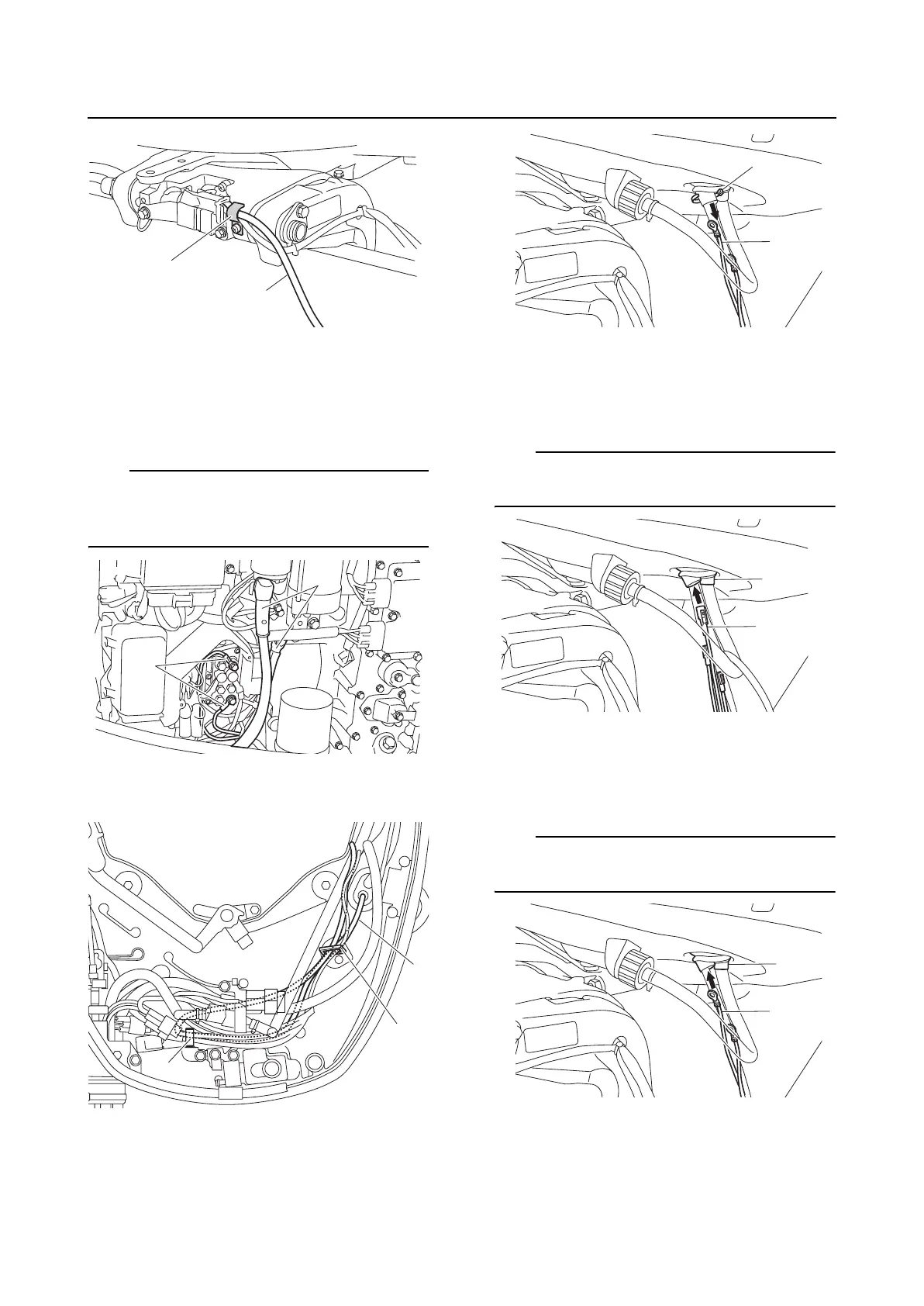

7. Remove the junction box cover.
8. Disconnect the battery cables “1” and
PTT motor leads “2”.
TIP:
To pass the tilt limiter lead through the hole in
the grommet, remove the PTT motor lead
temporarily.
9. Remove the PTT motor lead “1” from the
holders “2” and “3”.
10. Remove the plastic tie “1”, and then pull
the PTT motor lead “2” out of the bottom
cowling.
11. Route the tilt limiter leads “1” through the
hole in the grommet “2” and into the bot-
tom cowling.
TIP:
Pass the tilt limiter leads one by one through
the hole in the grommet.
12. Route the PTT motor leads “1” through
the hole in the grommet “2” and into the
bottom cowling.
TIP:
Pass the PTT motor leads one by one
through the hole in the grommet.
13. Remove the plastic ties that hold the trim
sensor lead.
