Getting Started Assembling the Accutome A-Scan Plus
Connecting the Probe
The Accutome A-Scan Plus probe connector is located
on the right side of the instrument (facing the
instrument).
To connect the probe:
1. Locate the probe connector, on the side, at the
right of the instrument, facing the screen (see
Fig-
ure 7 below.)

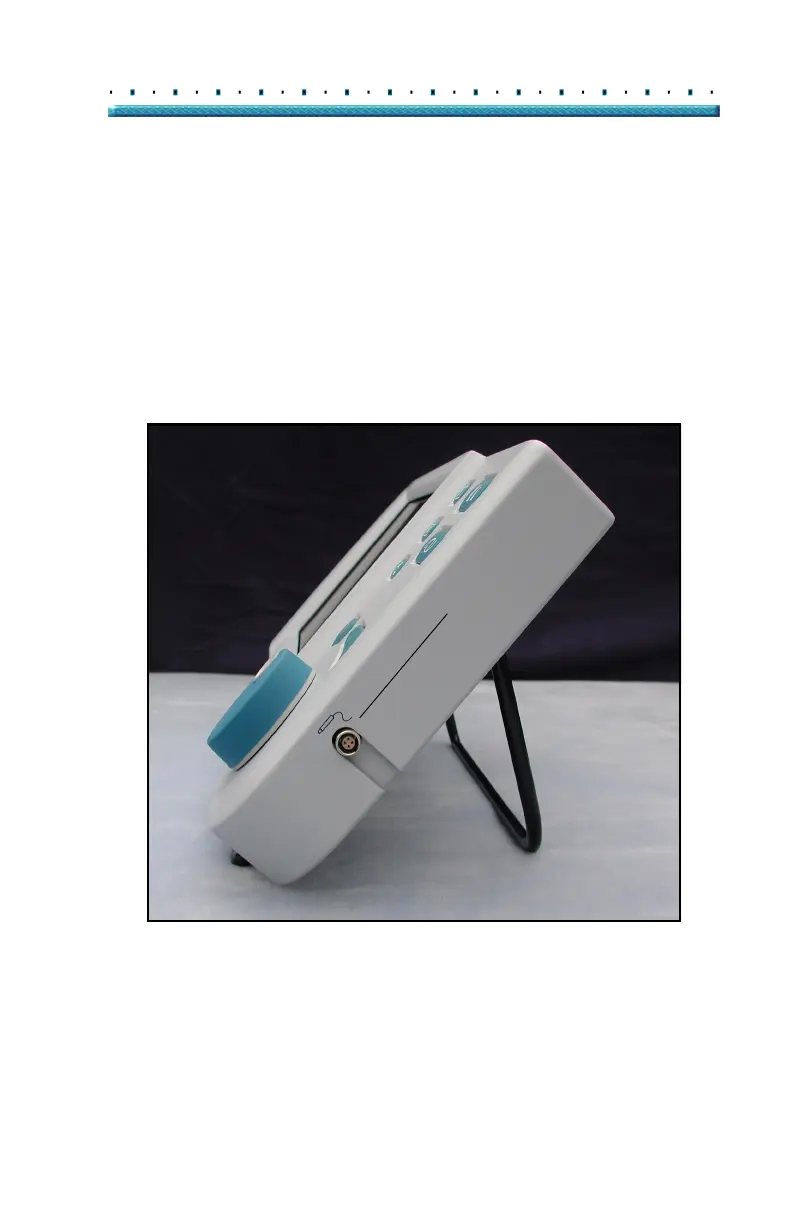

Probe Connector
Figure 7 Probe Connector (Right Side of Instrument)
