Accutome A-Scan Plus User’s Guide
Accutome Probe with Handle Extension
The Accutome probe is designed to be used with an
handle extension to increase the length of the probe.
When using the probe handle extension:
1. Insert the probe into the handle extension as
shown in
Figure 13 below.
2. Slide the insertion tool into the handle extension
making sure that the probe cable runs through the
notched channel of the insertion tool.
3. Push the probe through the handle extension until
the tip of the probe emerges from the extension.
4. Remove the insertion tool by sliding it back away
from the handle extension.
Handle Extension
Insertion Tool
Probe
Removing Insertion Tool
Probe inside Handle Extension
Probe Cable

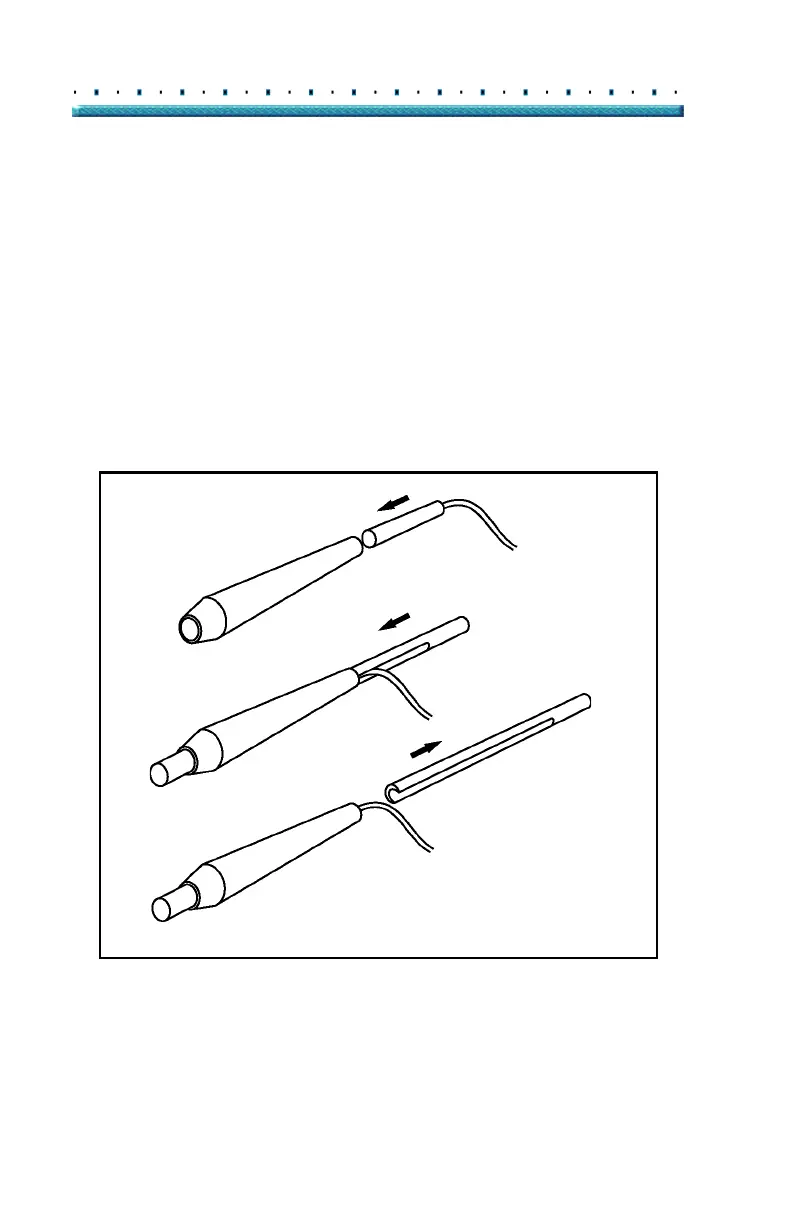

Figure 13 Inserting the Probe into the Handle Extension
