Chapter 7 Transmission Operation
Applying special functions on the signal
9102 Handheld Spectrum Analyzer Software version 5.31
125
Deleting files for external
device compensation
You can delete files containing compensation parameters as follows:
1 From the main menu, select
Level > Ext. Dev. Memory.
2 a. To delete an individual compensation file from the 9102 memory,
push
Delete Ext. Dev. Comp. Select a file name and press ENTER.
The compensation file is deleted from the list. Note that there will
be no warning; once you have selected and requested a file to be
deleted, this will occur immediately.
b. To delete all the compensation files from the 9102, push
Delete
All
and confirm by pressing ENTER.
All compensation files are deleted.
Applying special functions on the signal
This section shows how the measurement can be triggered and how
the number of measurements can be limited.
Using a trigger The 9102 can either start signal analysis at a random point in time, or
start the measurement when a given signal threshold is passed.
Starting measurements depending on the actual signal level is only
supported in zero span mode.
Selecting untriggered signal analysis
1 In the the main menu push
Freq > Trigger.

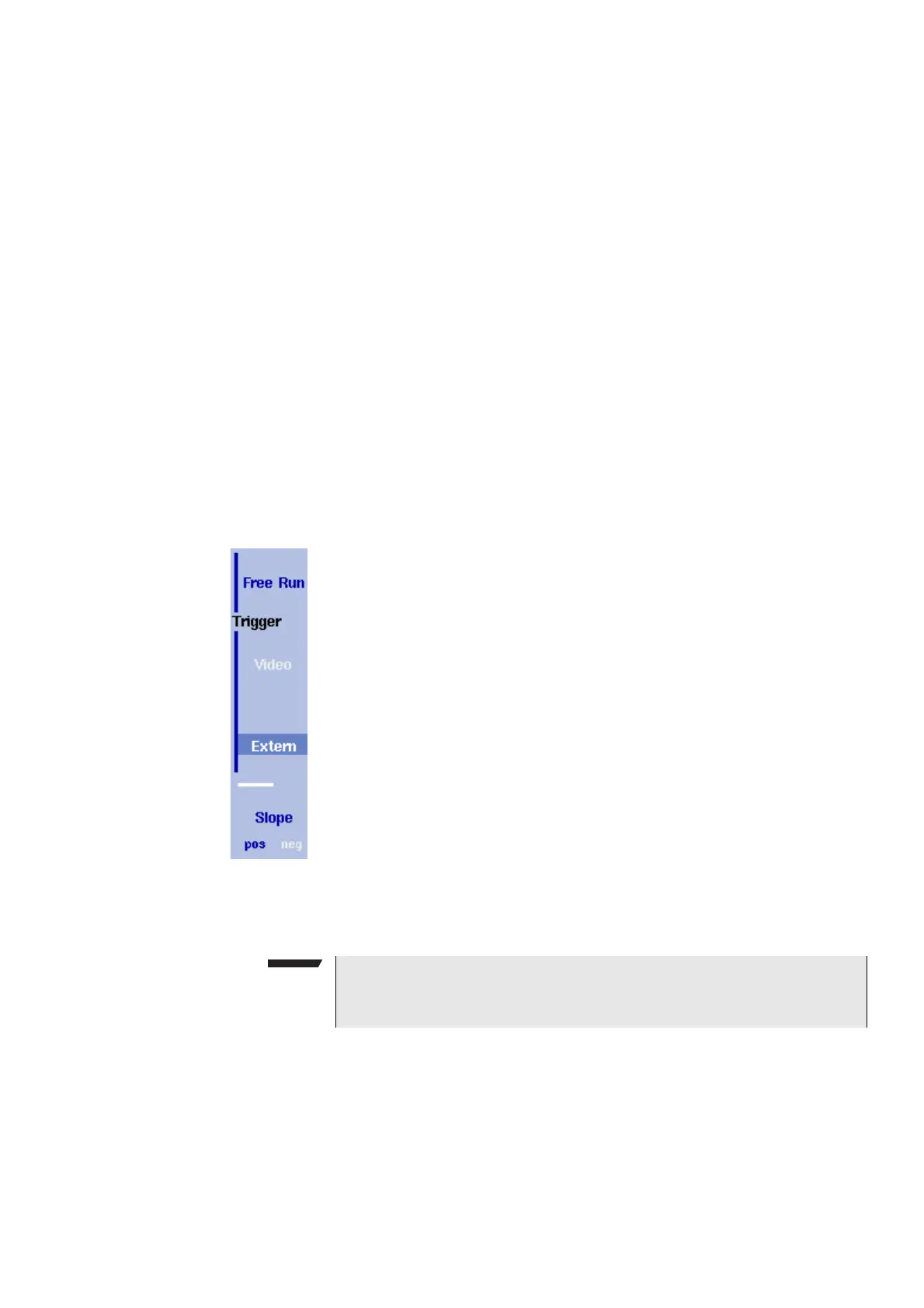

The Trigger menu appears.
2 Push the
Free Run softkey.
The softkey is highlighted and the 9102 is ready for measurements
at random times.
Selecting a trigger threshold in the RF signal
1 In the main menu push
Freq > Trigger.
The Trigger menu appears.
2 Push the
Video softkey.
The
Video softkey is highlighted and an input field for the trigger
level appears.
3 Enter the trigger level (in dBm) and complete the entry by pushing
either the GH
Z/DBM or the ENTER key.
The trigger threshold is displayed at the power axis; the symbol
also indicates the slope (direction in which the signal passes the
threshold to start the measurement).
NOTE
The Video trigger is available in zero span mode only, otherwise the
softkey description is grayed out.
