Digital Channels 17
InfiniiVision 7000B Series Oscilloscopes User’s Guide 371

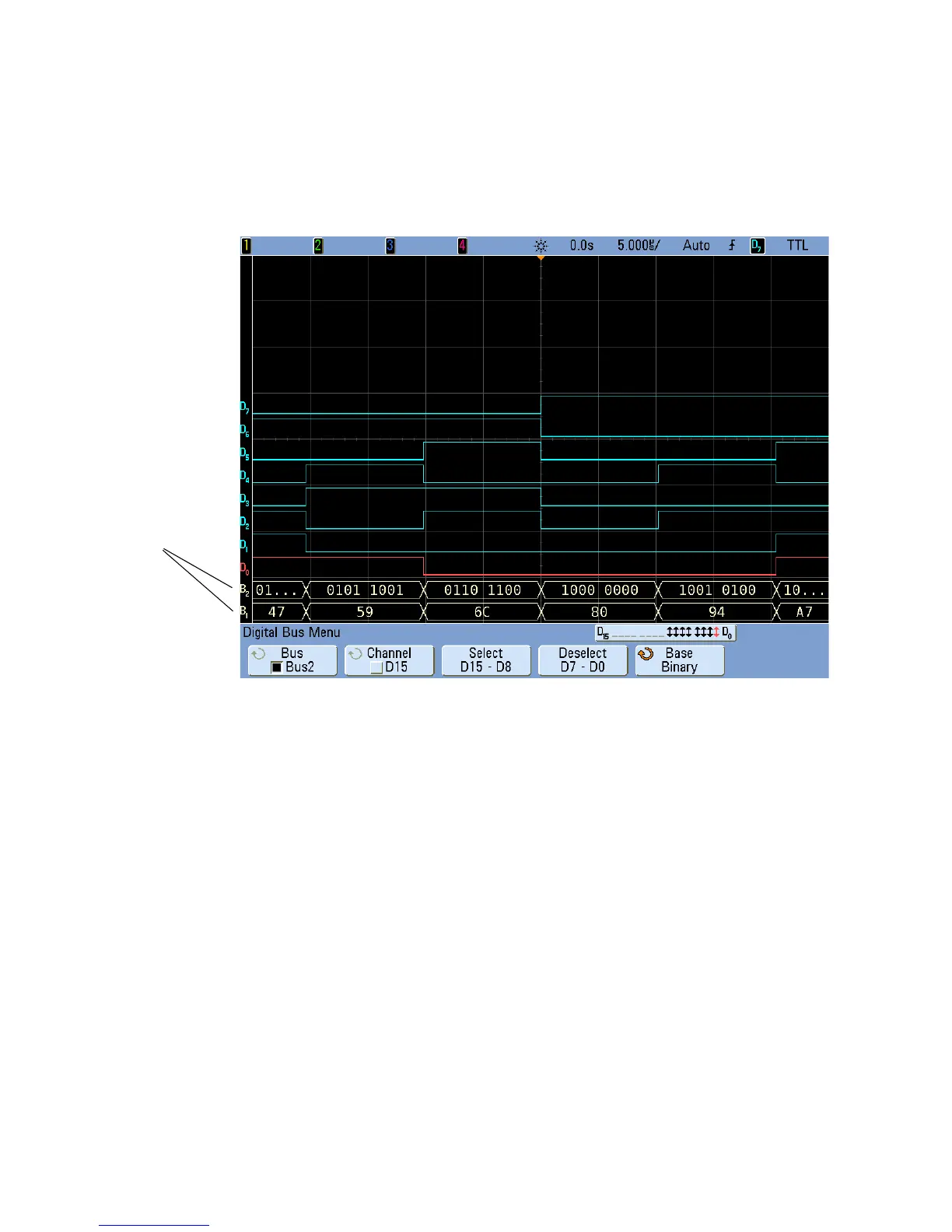

The buses are shown at the bottom of the display.
Using cursors to read bus values
To read the digital bus value at any point using the cursors:
1 Turn on Cursors (by pressing the [Cursors] key on the front panel)
2 Press the cursor Mode softkey and change the mode to Hex or Binary.
3 Press the Source softkey and select Bus1 or Bus2.
Bus values
can be
shown in
hex or
binary
