17 Digital Channels
372 InfiniiVision 7000B Series Oscilloscopes User’s Guide
4 Use the Entry knob and the X1 and X2 softkeys to position the cursors
where you want to read the bus values.
When you press the [Digital] key to display the Digital Channel Menu, the
digital activity indicator is shown where the cursor values were and the
bus values at the cursors are displayed in the graticule.

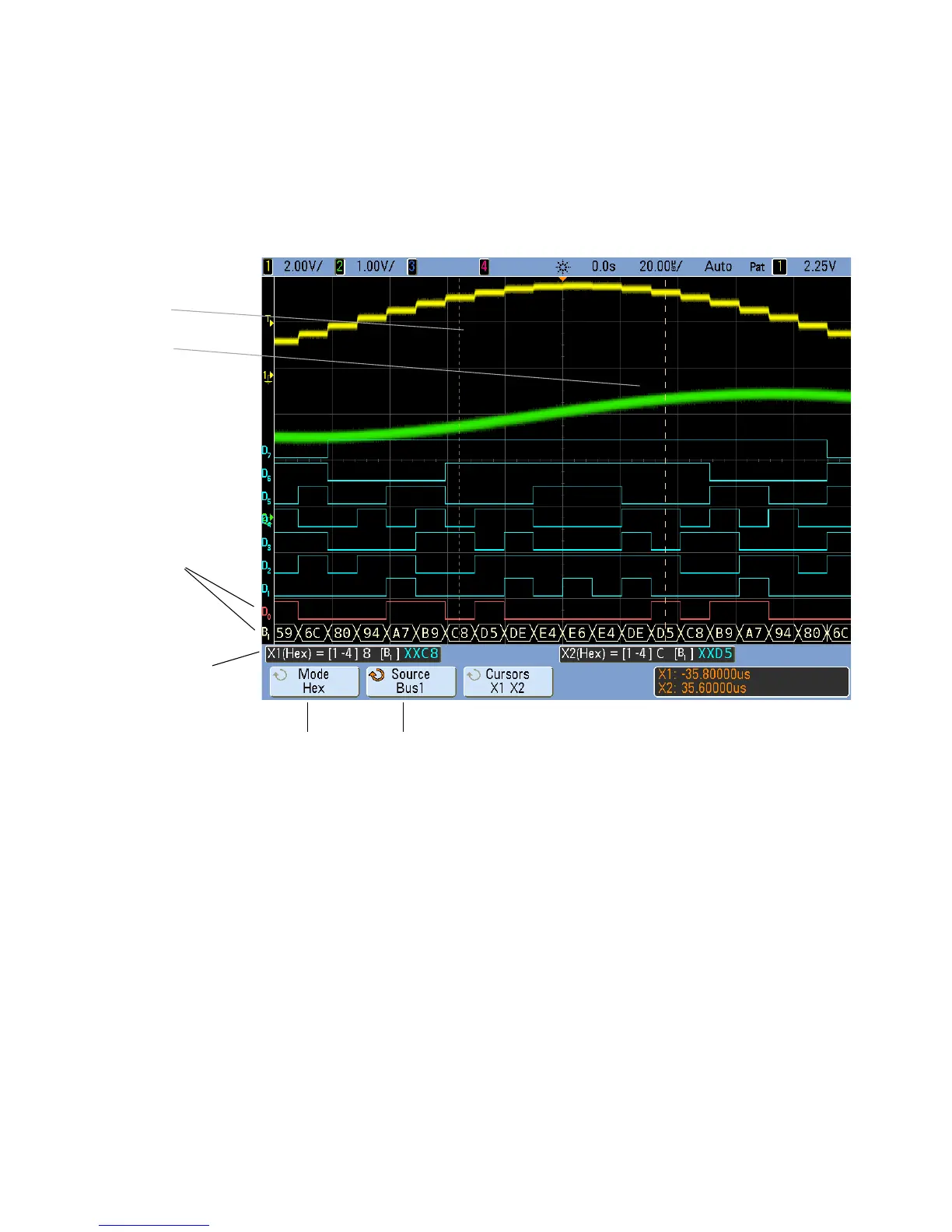

Bus values
Bus values at
cursors shown
here
Set mode to
Binary or Hex
Select Bus1 or
Bus2 source
X1 cursor
X2 cursor
