Digital Channels 17
InfiniiVision 7000B Series Oscilloscopes User’s Guide 373

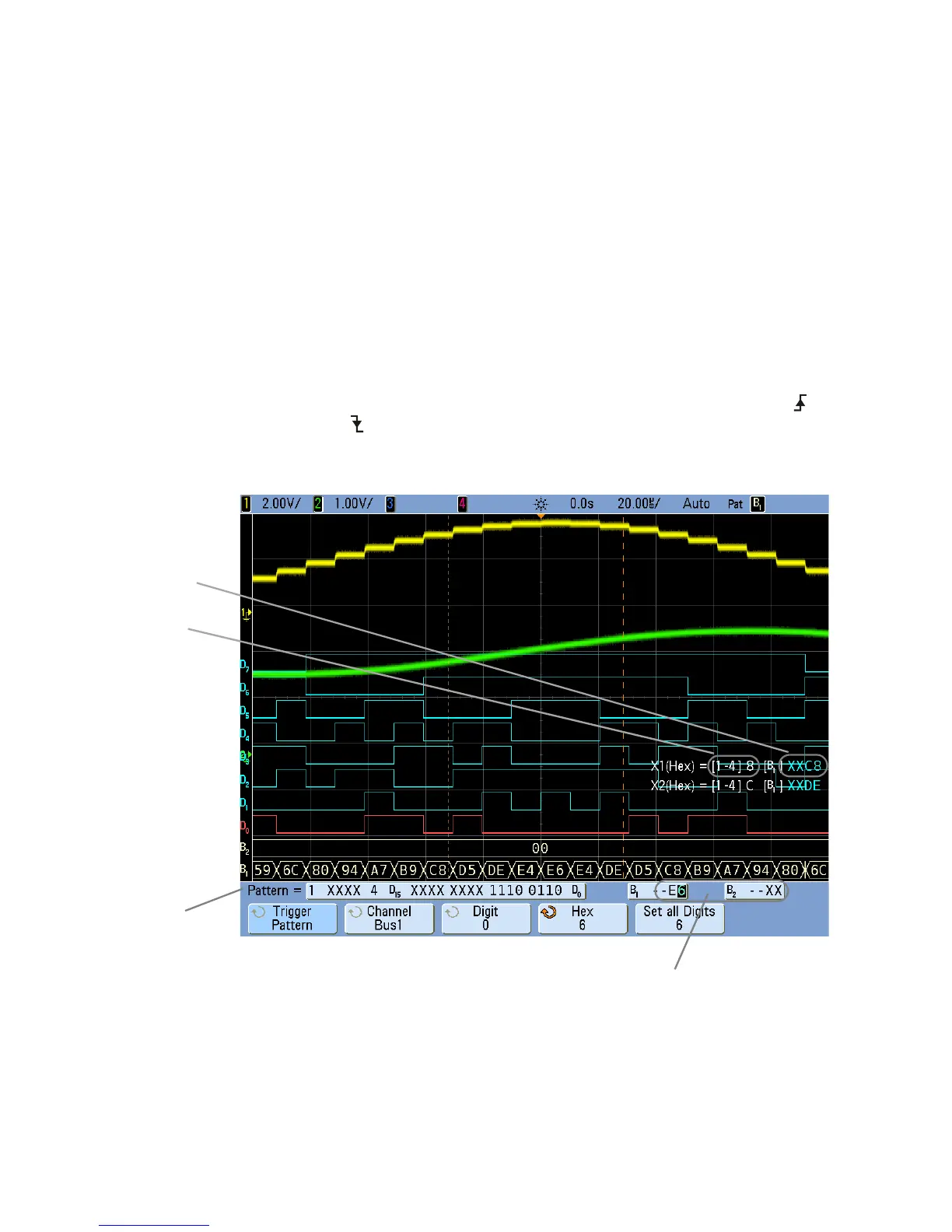

Bus values are displayed when using Pattern trigger
The bus values are also displayed when using the Pattern trigger function.
Press the [Pattern] key on the front panel to display the Pattern Trigger
Menu and the bus values will be displayed on the right, above the
softkeys.
The dollar sign ($) will be displayed in the bus value when the bus value
cannot be displayed as a hex value. This occurs when one or more “don’t
cares” (X) are combined with low (0) and high (1) logic levels in the
pattern specification, or when a transition indicator (rising edge ( ) or
falling edge ( )) are included in the pattern specification. A byte that
consists of all don’t cares (X) will be displayed in the bus as a don’t care
(X).
See page 125 for more information on Pattern triggering.
Trigger pattern
definition
Bus values
displayed
Analog channel
values at cursor
Digital channel
values at cursor
