8. Input

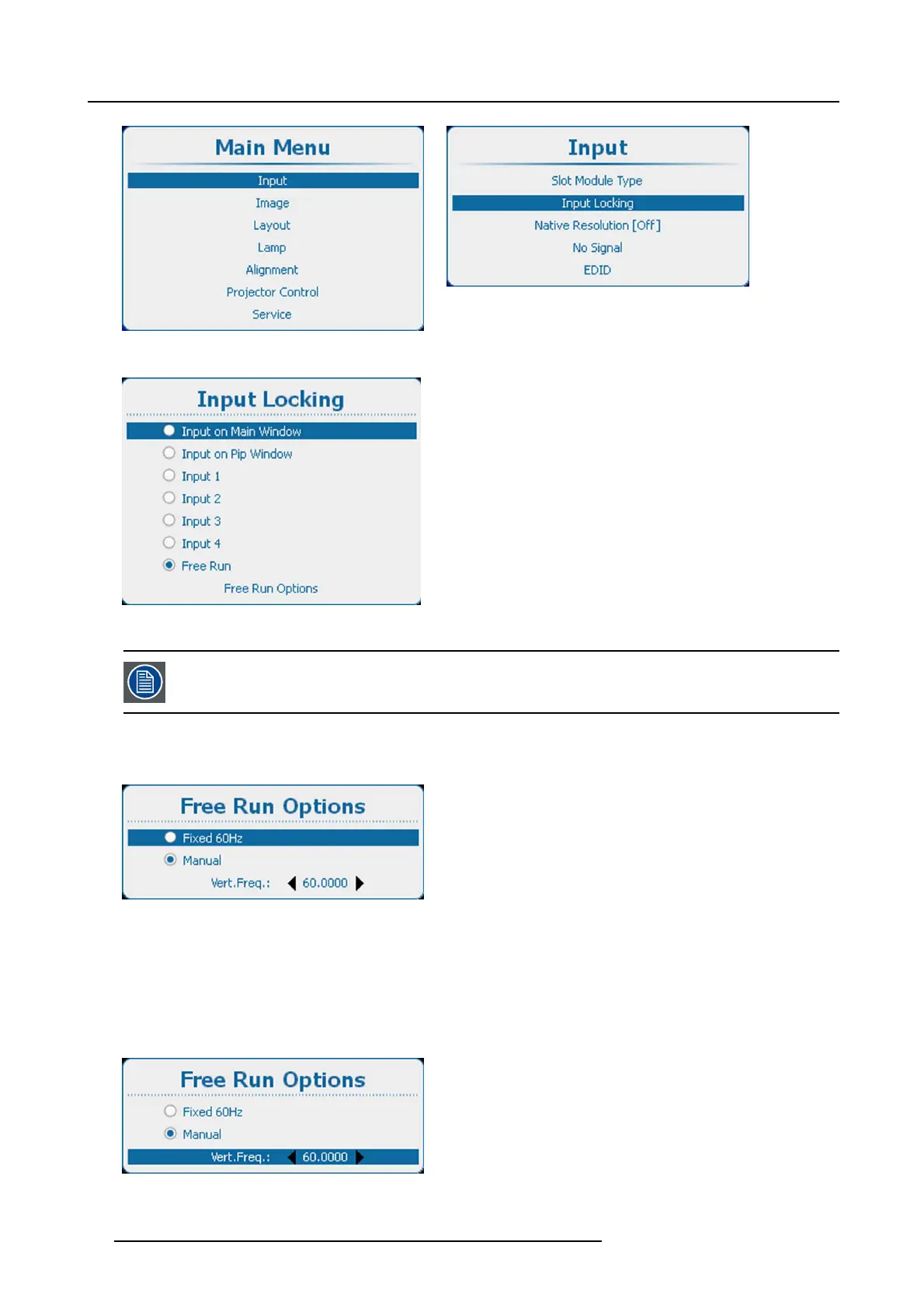

Image 8-9
Main window
Image 8-10
Input
Image 8-11
Input locking
When Input locking is set to a specifi c input and there is no sync signal available, the locking will be switched
to Free run without changing the user settings. Once the sync is available, it applies again the user settings.
Options for Free Run
When free run is selected, radio button selected, then the Free Run Options become available.
Image 8-12
Free run options
Use the ▲ or ▼ key to select Fixed 60 Hz or Manual and press ENTER to select.
Fixed 60 Hz: locking is done on an internal sync of 60 Hz
Manual locking is done on the indicated vertical frequency which can be changed by the user (between 24 Hz
and 60 Hz).
To change the locking frequency for Manual, use the ▲ or ▼ key to select Vert freq and press ENTER to activate.
Image 8-13
Free run, manual setting
