Proceed to Step 6 if you do not specify the settings for the other options.

Department ID Management PIN Configuration Settings

Specifies whether the department ID and password should be confirmed before printing using the XPS printer driver.

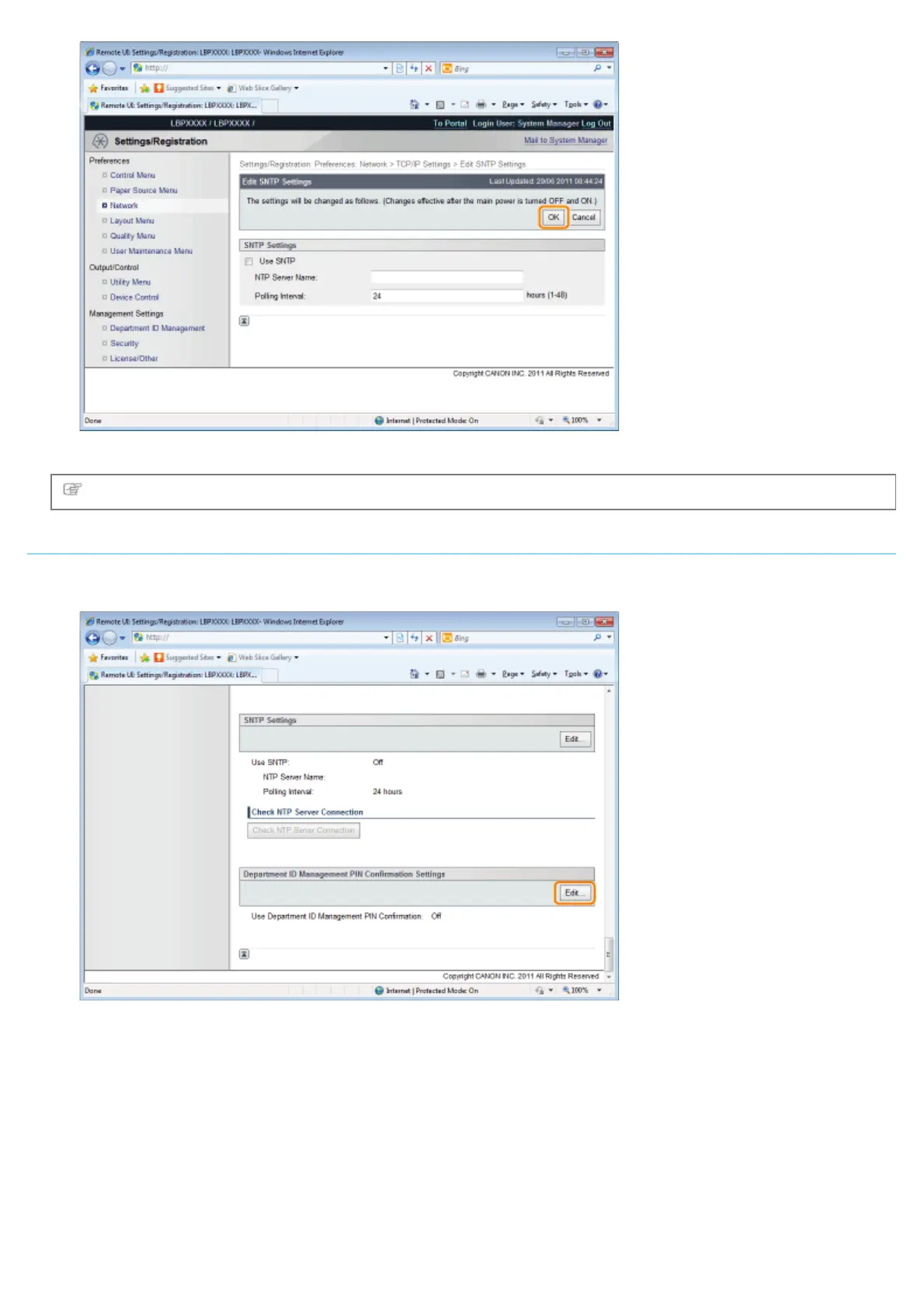

(1) Click [Edit...] in [Department ID Management PIN Confirmation Settings].

(2) Set the Department ID Management PIN Confirmation function.

㻠㻠㻥㻌㻛㻌㻥㻣㻜
