Cisco MDS 9000 Series Configuration Guide

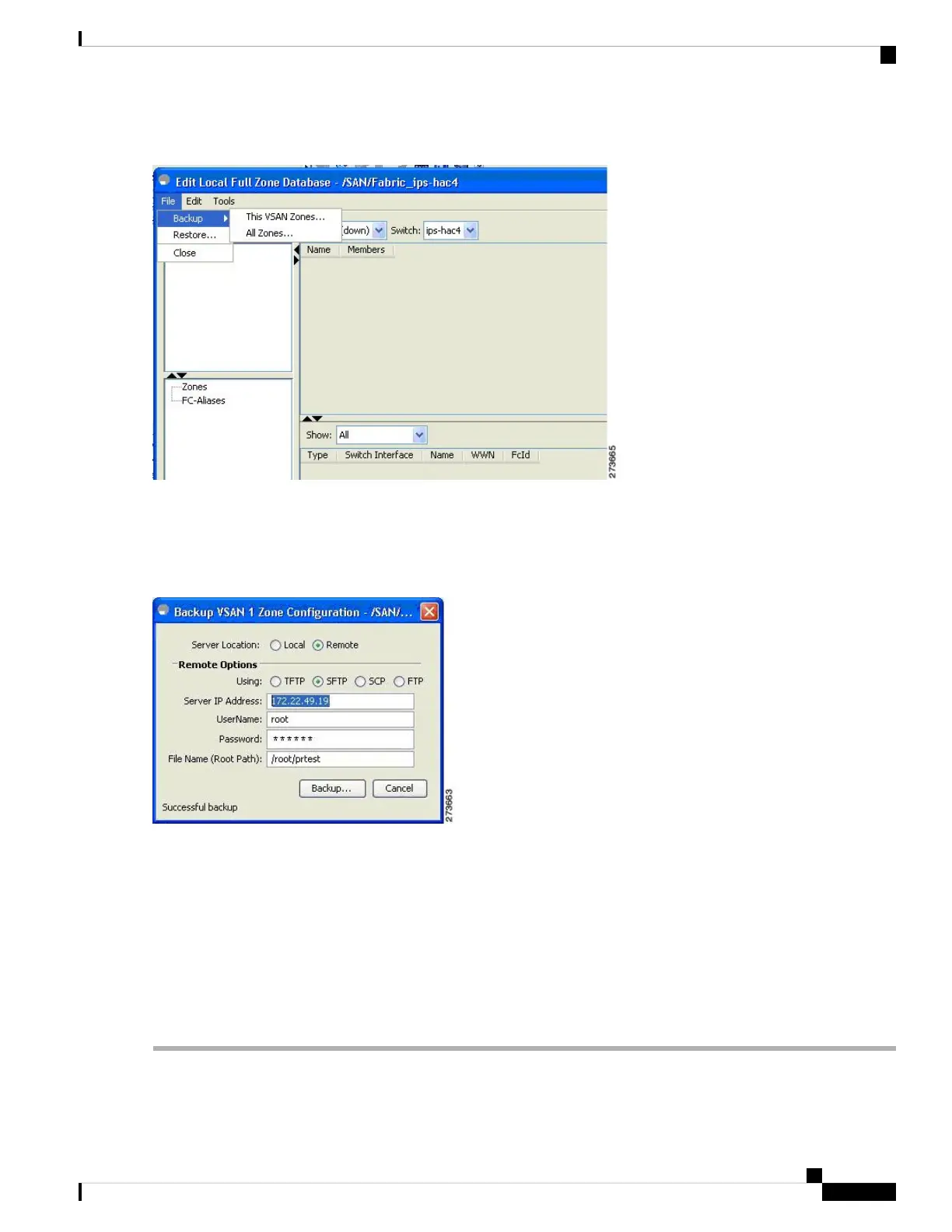

Figure 32: Edit Local Full Zone Database
Step 3 Choose File > Backup > This VSAN Zones to back up the existing zone configuration to a workstation using TFTP,
SFTP, SCP, or FTP. You see the Backup Zone Configuration dialog box (see Figure 33: Backup Zone Configuration
Dialog Box, on page 83).
Figure 33: Backup Zone Configuration Dialog Box
You can edit this configuration before backing up the data to a remote server.
Step 4 Provide the following Remote Options information to back up data onto a remote server:
a) Using—Select the protocol.
b) Server IP Address—Enter the IP adress of the server.
c) UserName—Enter the name of the user.
d) Password—Enter the password for the user.
e) File Name(Root Path)—Enter the path and the filename.
Step 5 Click Backup or click Cancel to close the dialog box without backing up.
Cisco MDS 9000 Series Fabric Configuration Guide, Release 8.x
83
Configuring and Managing Zones
Backing Up Zones Using Fabric Manager

Cisco MDS 9000 Series Specifications

General

Category	Switch
Operating System	Cisco NX-OS
Ports	Varies by model
Protocols	Fibre Channel (FC), Fibre Channel over IP (FCIP), iSCSI
Redundancy	Redundant supervisors, power supplies, and fans
Management	Cisco Data Center Network Manager (DCNM), CLI, SNMP
Virtualization Support	VSANs (Virtual SANs)
Security Features	Fibre Channel Security Protocol (FC-SP)
Hot Swappable Components	power supplies, fans
Power Supply Options	AC and DC options available
