Data Center Bridging (DCB) | 347

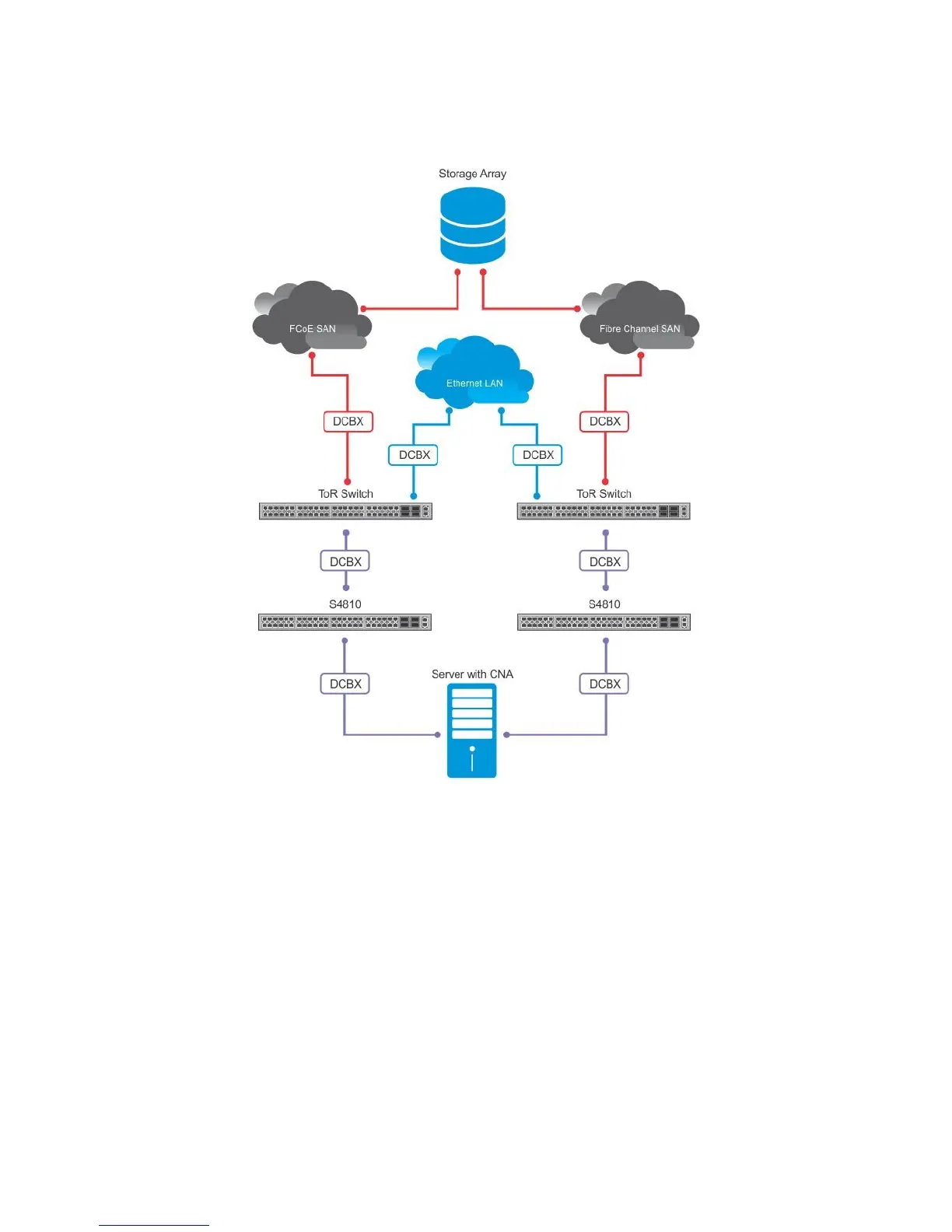

Figure 13-18. Example: PFC and ETS Applied to LAN, IPC, and SAN Priority Traffic
QoS Traffic Classification: The service-class dynamic dot1p command has been used in Global
Configuration mode to map ingress dot1p frames to the queues shown in Table 13-6. For more
information, refer to QoS dot1p Traffic Classification and Queue Assignment.
