Esterline CMA-9000 - NAVIGATION MODES AND SENSORS

OPERATOR’S MANUAL
CMA-9000 FLIGHT MANAGEMENT SYSTEM
CURRENT NAVIGATION MODE STATUS

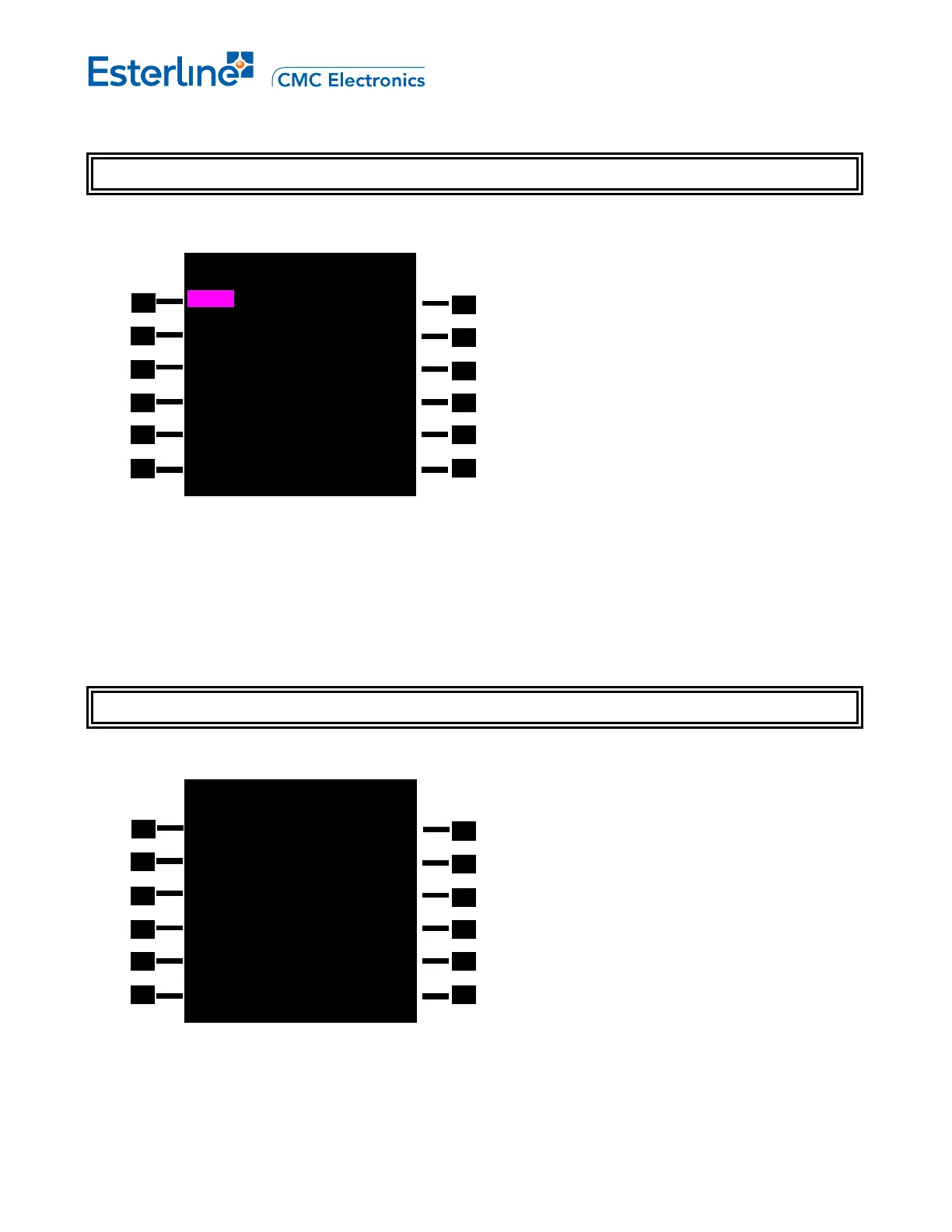

Display the PROGRESS 1/3 or 1/4 page by pressing [PROG].
NOTE: The current navigation mode (NAV MODE) is displayed at LSK 6L. The Required Navigation
Performance (RNP) and the current estimated navigation performance (ANP) are expressed in nautical
miles. The Required Navigation Performance (RNP) can be manually overwitten by entering the desired
value in LSK 5L. If the manually entered RNP exceeds the configured RNP then the "VERIFY RNP
VALUE" alert message is raised. Refer to Section 15 RNP Capability for additional information.
More information on the navigation mode can be found on the POS INIT/REF 2/3. To access the POS INIT/REF
2/3 page press the <NAV MODE> (LSK 6L).
GPS SENSOR AND SATELLITE STATUS
Display the NAV STATUS INDEX 1/1 page by pressing [INIT REF], <NAV STATUS> (LSK 5R).
Display the GPS STATUS 1/2 page by pressing GPS (LSK 1R).
1R
2R
3R
4R
5R
6R
NAV STATUS INDEX 1/1
<PREDICT RAIM GPS>
<GLONASS DME>
VOR/DME>
IRS>
<INIT/REF DESELECT>
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
5R
PROGRESS 1/4
280
T
DTGNM ETA
ARRIE 35.2 1817.9Z <
280
T
TOU 88.3 1830.5Z
TRUE WIND TK/GS
>020
T
/ 45KT 281
T
/228KT
TKE/XTK
R000
o
/L0.00NM
RNP/ANP HSI SCALES
1.00/0.05
NM 500FT/2.0NM
NAV MODE
<GPS
1L
2L
3L
4L
5L
6L
6R
Page 5-23
August 17, 2010
DRAFT
