CMA-9000 FLIGHT MANAGEMENT SYSTEM
NAVIGATION MODE AND ADVISORY MESSAGES

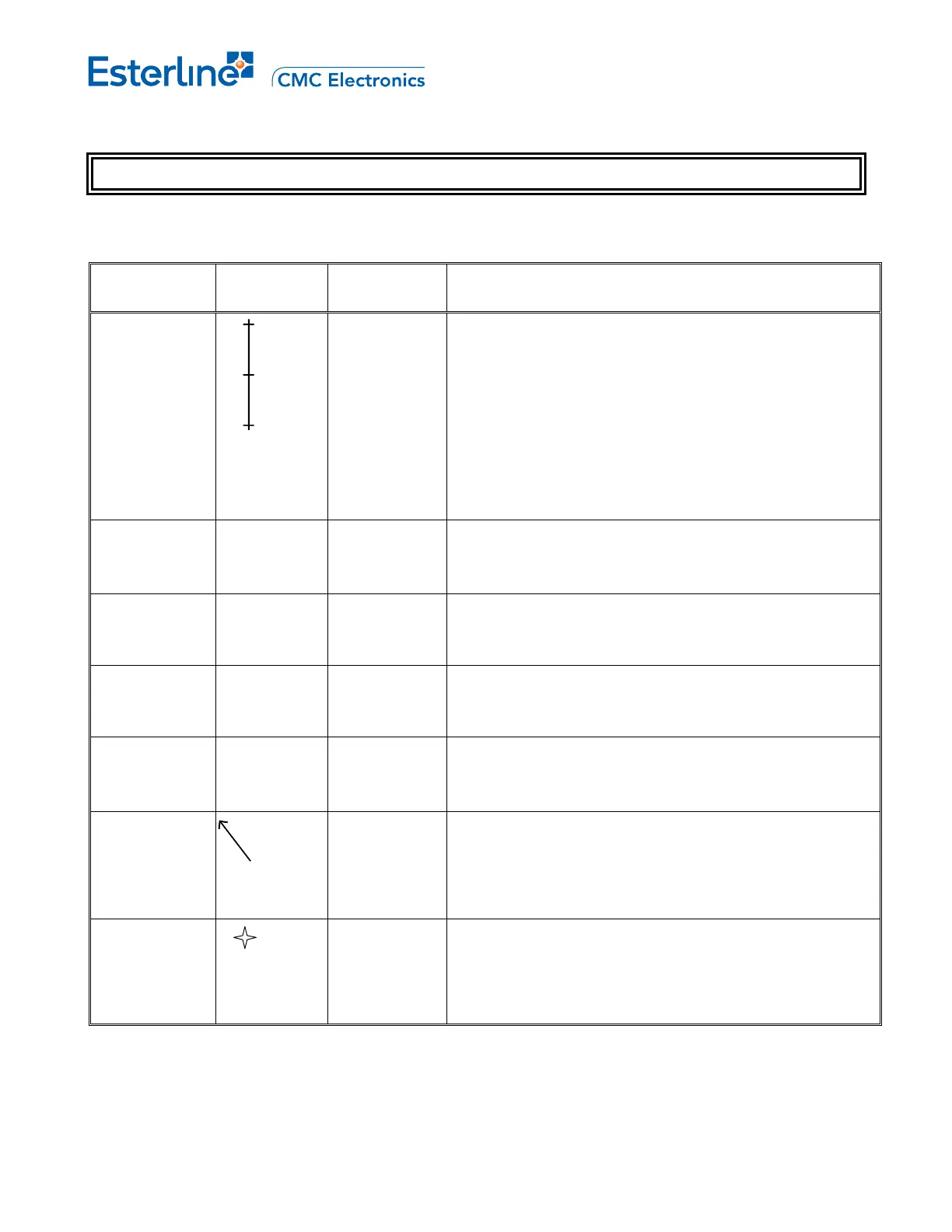

The Navigation Display uses FMS data to generate symbology and information described below. Presentation
may vary from one EFIS type to another.
NAME SYMBOL APPLICABLE
MODE(S)
REMARKS
PRESENT
TRACK LINE
and RANGE
SCALE (W)
MAP
MAP CTR
VOR/ILS
Indicates ground track which will result with present heading
and winds. Displayed range mark and figure is ½ the actual
selected range.
80
ACTIVE
WAYPOINT
IDENTIFIER
(M)
ABCDE MAP, MAP
CTR, PLAN
Indicates active flight plan waypoint (top right corner).
ETA
DISPLAY(W)
0834.5z MAP
MAP CTR
PLAN
Indicates FMS calculated ETA for the active waypoint based
on present groundspeed (top right corner).
DISTANCE
DISPLAY (W)
123.4 NM MAP
MAP CTR
PLAN
Distance is displayed to next FMS waypoint in NM (top right
corner)
GROUND
SPEED
INDICATOR
(W)
GS 123 ALL Indicates current ground speed (top left).
WIND
DIRECTION
ARROW (W)
and DIGITAL
DIRECTION/
SPEED (W)
MAP
MAP CTR,
VOR/ILS
VOR/ILS CTR
Indicates wind direction with respect to the map display
orientation and compass reference and digital wind direction
and speed (top left).
WAYPOINT:
ACTIVE (M)
INACTIVE (W)
MAP
MAP CTR
PLAN
Active - Represents the waypoint the aircraft is currently
navigating to.
Inactive-
Represents a navigation point making up the selected active
route.
120°/20
ABCDE
