OPERATOR’S MANUAL
CMA-9000 FLIGHT MANAGEMENT SYSTEM
APPENDIX B
NAVIGATION LEG TYPE DEFINITIONS
INTRODUCTION
For lateral guidance, the desired lateral route is entered into the FMS through keyboard entries such as custom
route, origin, destination, SID, waypoints, STAR and/or approach. Entries and selections of published
procedures are translated using 20 different types of navigation legs to define the lateral path. Each of these
types of legs is graphically illustrated with accompanying display in the following paragraphs.
DIRECT TO A FIX (WAYPOINT – DF LEG)
Refer to Section 9 for detailed information.

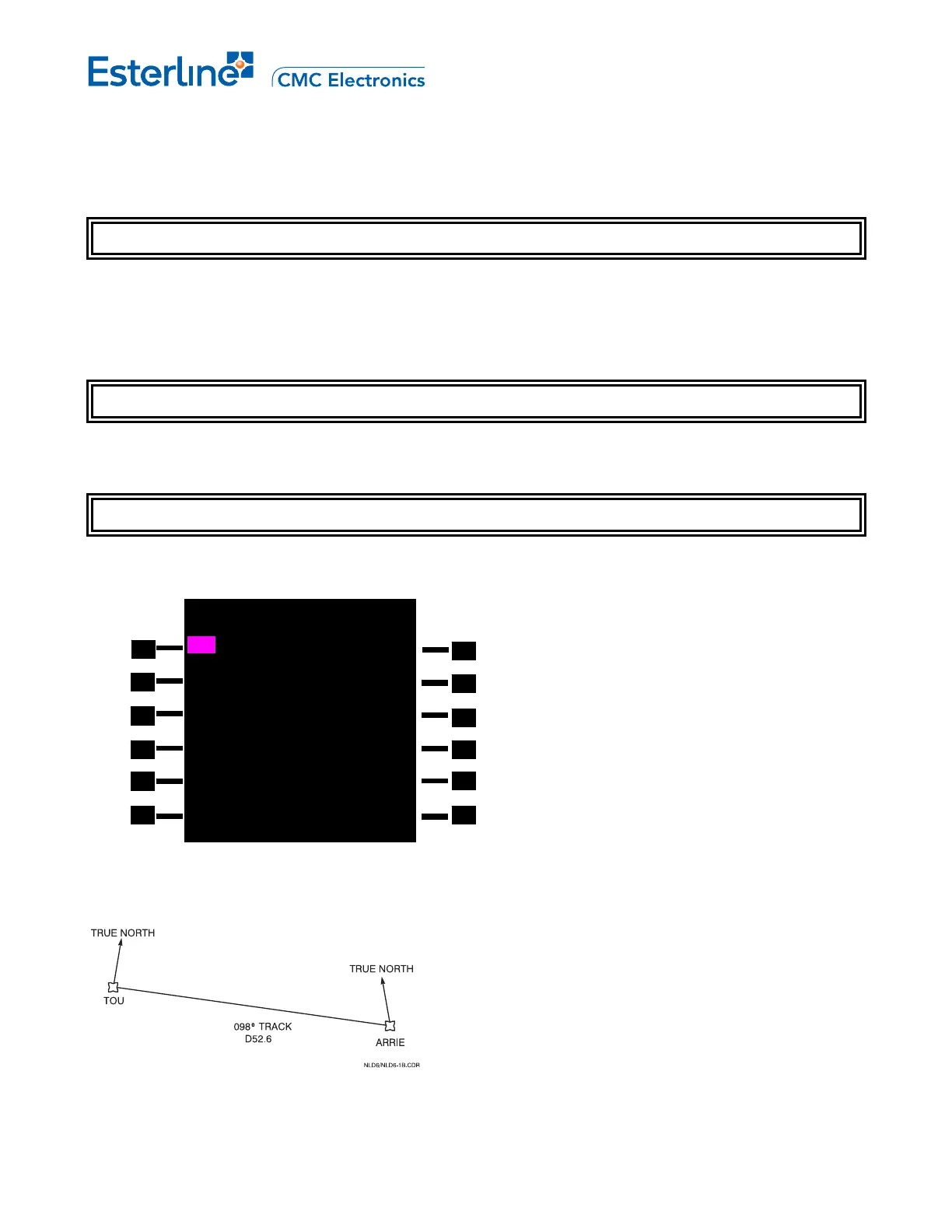

TRACK BETWEEN FIXES (TF LEG)
This navigation leg is a great circle path from a starting to an ending waypoint.
ACT RTE 1 LEGS 1/1
113
o
112NM
TOU
098
o
52.6NM
ARRIE
099
o
54.1NM
SEA
-----
<RTE 2 LEGS LEGS ETA>
Page B-1
August 17, 2010
