CMA-9000 FLIGHT MANAGEMENT SYSTEM
NAVIGATION DISPLAYS -- NAVIGATION MODE AND ADVISORY MESSAGES
The Navigation Display supports messages related to procedures, nav modes and nav alerts, as well as FMS
alerts. The following are various type of messages that can be displayed:
• Holding pattern entry types: parallel, teardrop, direct
• GPS approach armed status
• GPS integrity lost
• Unable RNP
• Offset route active (with magnitude and direction of offset)
• Active navigation mode (e.g. GPS, VOR/DME, DME, INERTIAL, DR)
• Position offset active
• FMS alert level scratchpad message triggered

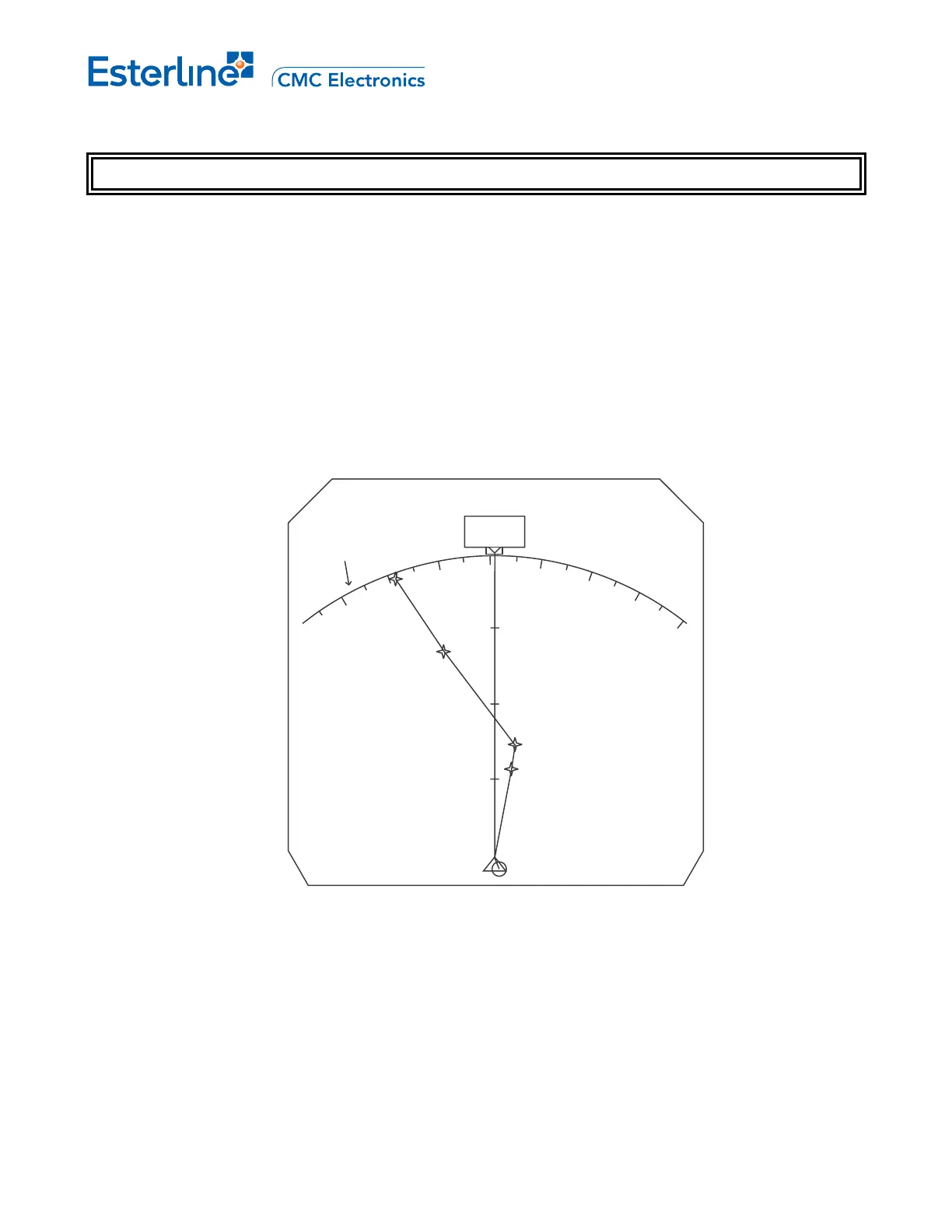

An example of navigation mode and advisory message display is given below:
15
18
21
40
INKET
EHN
THN
LEKKO
THAM
174
HDG
INS
GPS INT
LEKKO
z
23.0
NM
0
GS
TAS
000
000
000° /00
TRU
KLM00050
