Esterline CMA-9000 - Plan Mode

OPERATOR’S MANUAL
CMA-9000 FLIGHT MANAGEMENT SYSTEM
PLAN MODE
In PLAN mode the Navigation Display shows the active, modified and/or inactive routes relative to true north
and the center waypoint selected on the FMS RTE LEGS page. The center waypoint can be selected by
stepping through each waypoint on the RTE LEGS page via the MAP CTR STEP prompt.
15
18
21
INKET
LEKKO
EHAM
EHN
182
HDG
LEKKO
1420.0z
17.0
NM
GS
TAS
210
240
180° /29
TRU
KLM00051
N

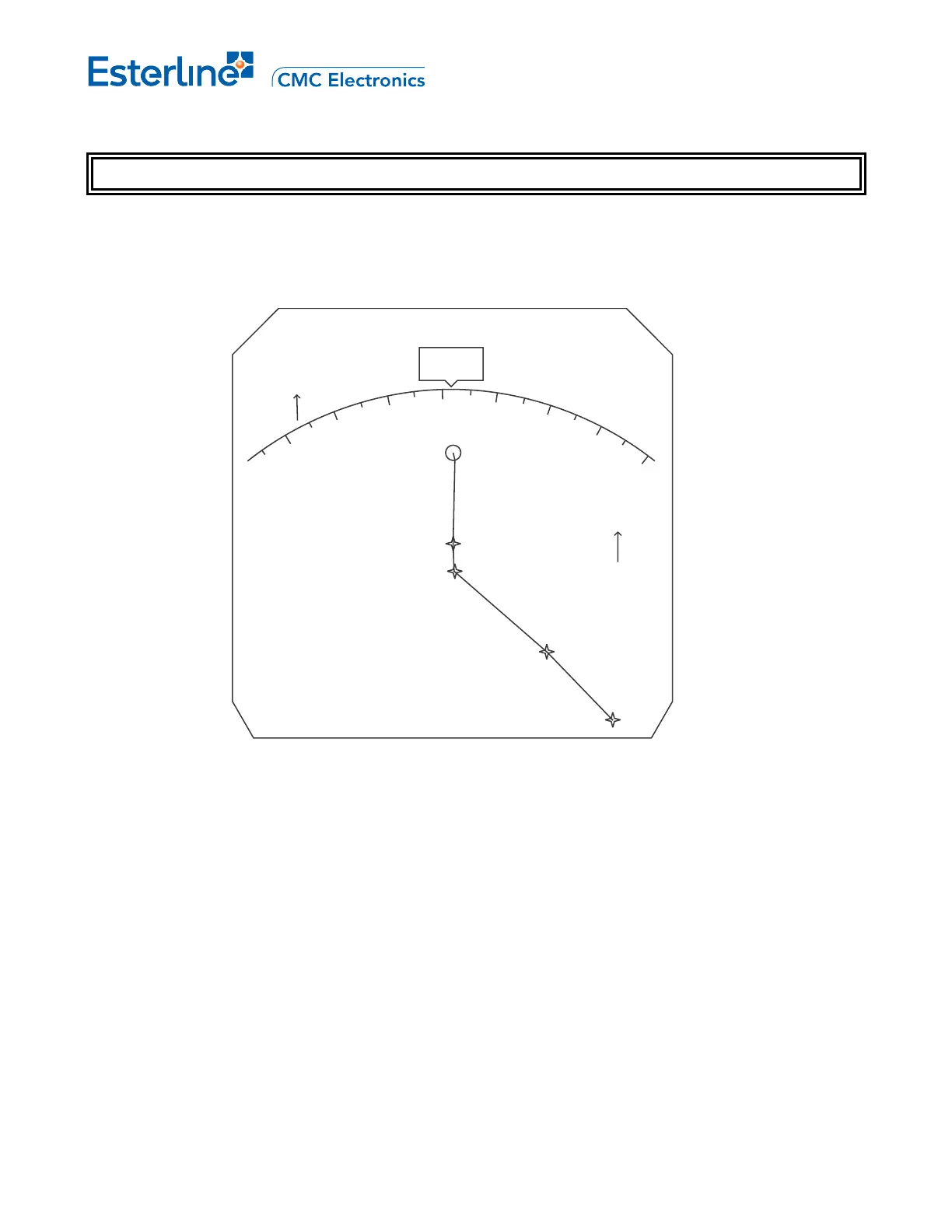

Typical PLAN Mode
Page C-3
August 17, 2010
