Esterline CMA-9000 - ROUTE MANAGEMENT AND SELECTION

OPERATOR’S MANUAL
CMA-9000 FLIGHT MANAGEMENT SYSTEM
Page A-62
August 17, 2010
RTE x 1/X
Access RTE 1 1/X page by either pressing [RTE]; or
from POS INIT/REF 2/2 page, <ROUTE>; or
from ARRIVALS 1/X page, <ROUTE>.or
from DEPARTURES page, <ROUTE> or
from USER ROUTES page, <ROUTE> or
from SELECT CO ROUTE page, <ROUTE> or
from SELECT CO ROUTE page, route name selected.

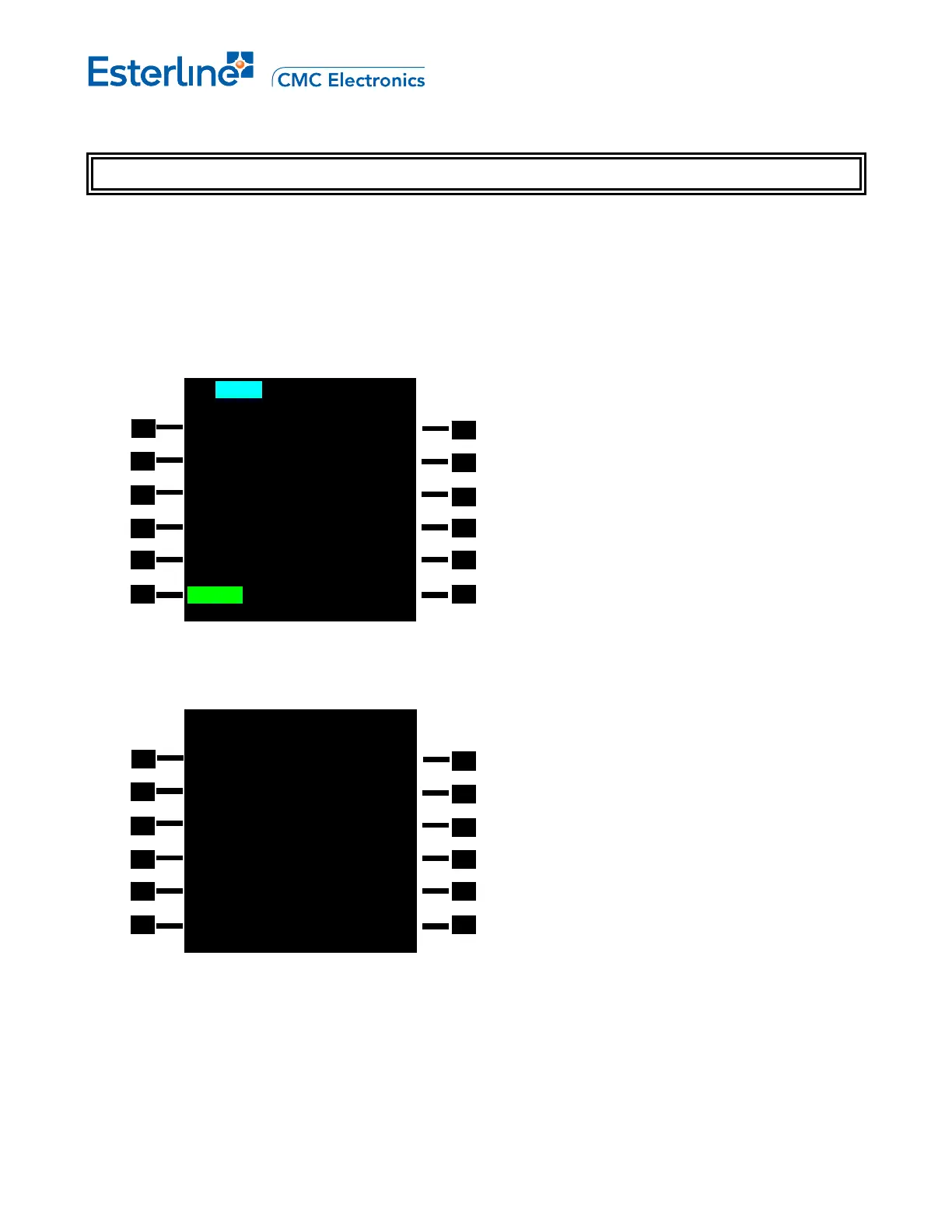

A. Page display of active RTE being modified:
B. The following page is displayed when a user route or custom route is activated in DIRECT mode and
executed, and aircraft is airborne (single FMS installation):
1R
2R
3R
4R
5R
6R
MOD RTE 1 1/3
ORIGIN DEST
KSEA PANC
RUNWAY FLT NO
----- KL007
ROUTE
KSEAPANC1
CO RTES>
USER RTES>
OFFSET
<ERASE R0.0NM
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
5R
6R
ACT RTE 1 1/2
ORIGIN DEST
KSEA PANC
RUNWAY FLT NO
----- KL007
ROUTE
KSEAPANC1
CO RTES>
USER RTES>
OFFSET
<RTE 2 PANC R0.0NM
1L
2L
3L
4L
5L
6L
