OPERATOR’S MANUAL
CMA-9000 FLIGHT MANAGEMENT SYSTEM
EFIS PARAMETERS DISPLAY
The desired track angle displayed to the pilot is always the inbound track angle. The track angle error and the
cross-track distance are also relative to the inbound track.
The distance to go is always the direct distance from aircraft position to the holding fix. However, the expected
time of arrival (ETA) is based on the amount of time required to fly the current hold procedure back to the
holding fix taking into consideration the along track distance and average ground speed for each of the four
segments (two turns, one outbound leg and one inbound leg).
ENTRY PROCEDURES
The entry into the holding pattern will be according to the track angle in relation to the three entry sectors shown
below. A full size race track holding pattern is displayed on an ARINC 702 EFIS.

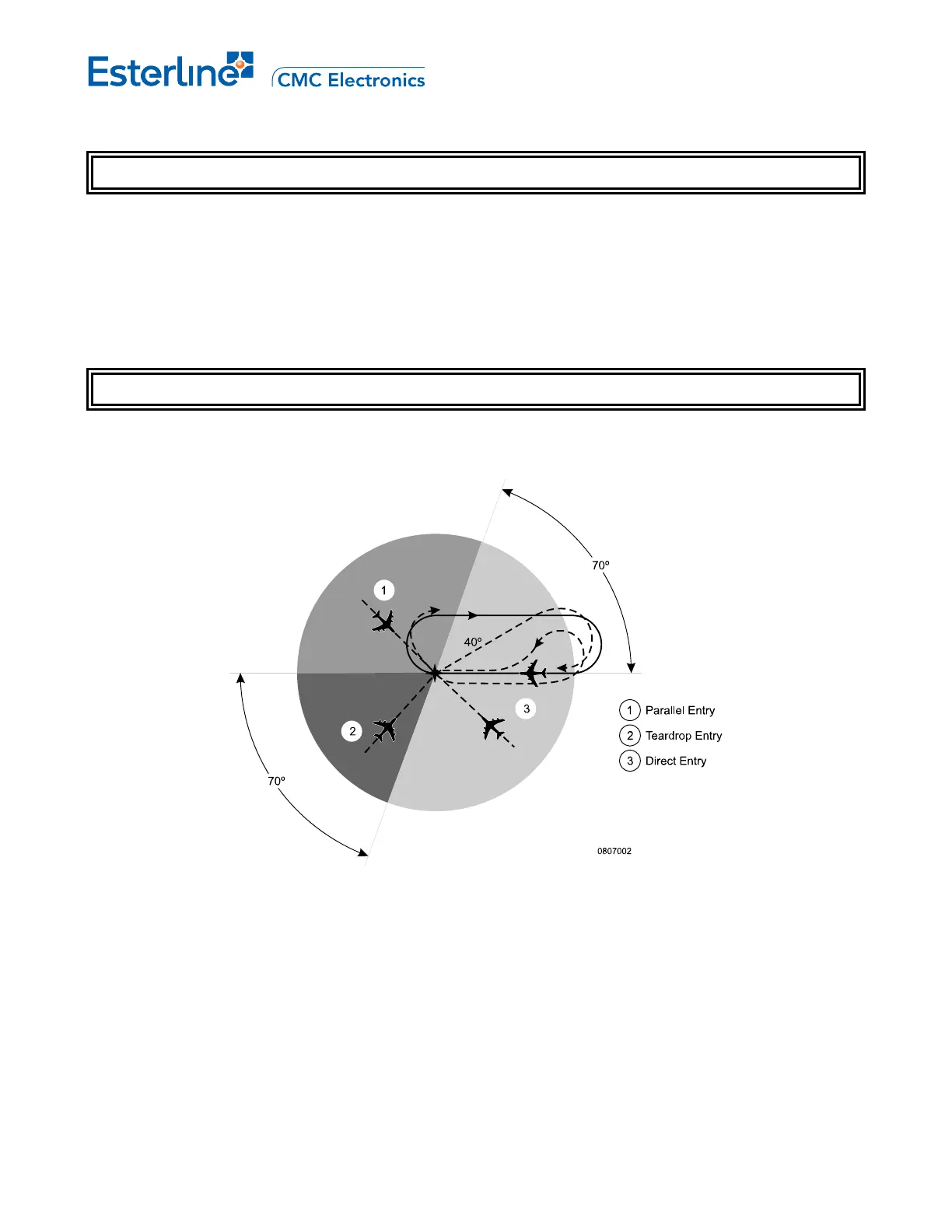

Figure 10-2 ARINC 702 EFIS Display of Holding Pattern
Page 10-2
August 17, 2010
