Esterline CMA-9000 - RTE X 2;X

OPERATOR’S MANUAL
CMA-9000 FLIGHT MANAGEMENT SYSTEM
Page A-67
August 17, 2010
ACTIVATE [6R]: Prompt displayed only when route is not active and at least one waypoint is present in the
inactive route. Key press will cause the EXEC key to illuminate.
(SAVE?): Displayed between the CANCEL/CONFIRM prompts when the inactive route is in modification.
RTE x 2/X
Access RTE x 2/X page by either pressing [RTE], [NEXT]; or
from POS INIT/REF 2/2 page, <ROUTE>, [NEXT]; or
from ARRIVALS 1/X page, <ROUTE>, [NEXT], or
from DEPARTURES 1/X page, <ROUTE>, [NEXT], or
from USER ROUTES 1/X page, <ROUTE>, [NEXT], or
SELECT CO ROUTE 1/X page, <ROUTE>, [NEXT].

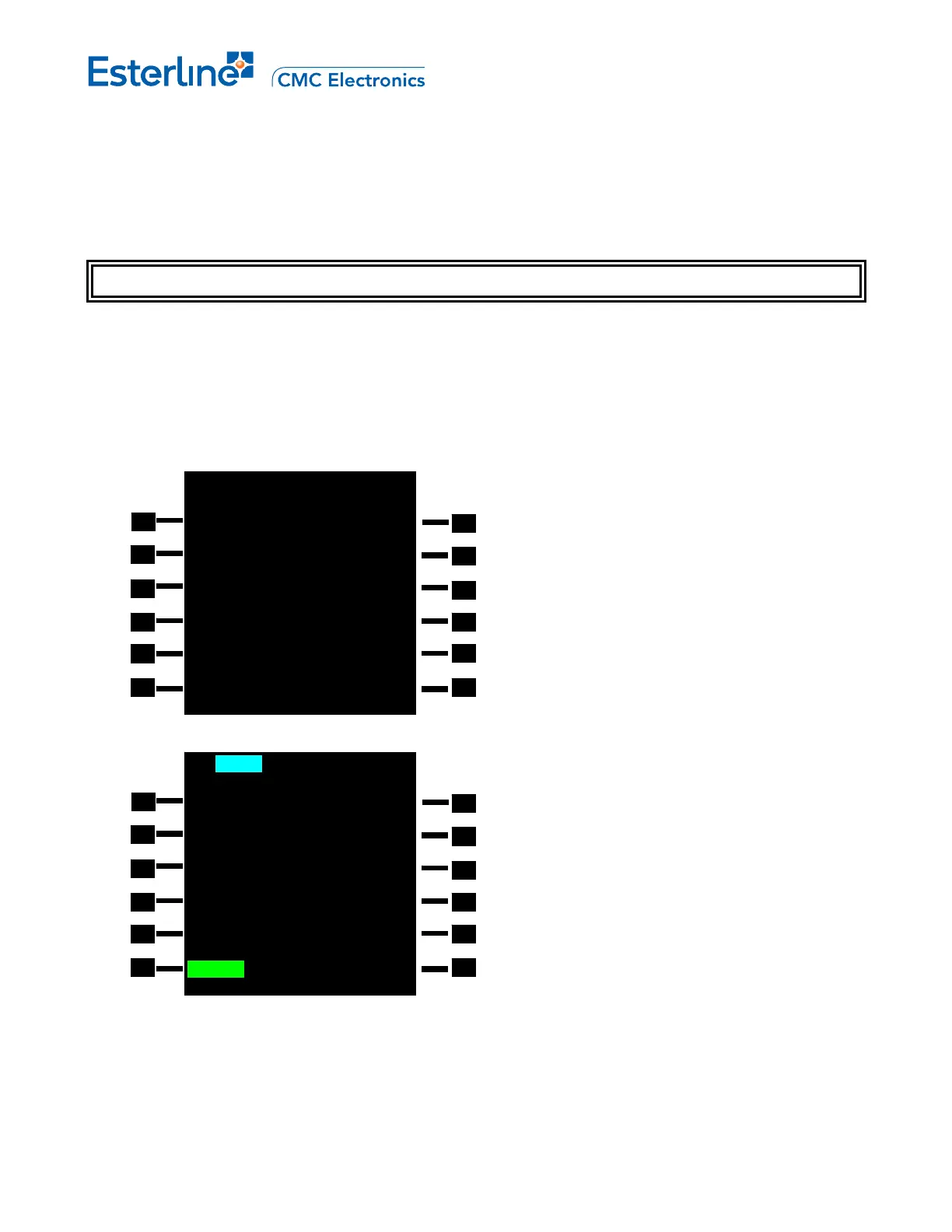

A. Page displayed of an Active route:
B. Active route during modification:
1R
2R
3R
4R
5R
6R
ACT RTE 1 2/3
VIA TO
LACRE3 HUMPP
DIRECT RADDT
J20 OCS
J154 RAMMS
DIRECT GWENS
OFFSET
<RTE 2 EGLL R0.0NM
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
5R
6R
MOD RTE 1 2/3
VIA TO
LACRE3 HUMPP
-- ROUTE DISCONTINUITY -
 
J20 OCS
J154 RAMMS
DIRECT GWENS
OFFSET
<ERASE R0.0 NM
1L
2L
3L
4L
5L
6L
DRAFT
