OPERATOR’S MANUAL
CMA-9000 FLIGHT MANAGEMENT SYSTEM

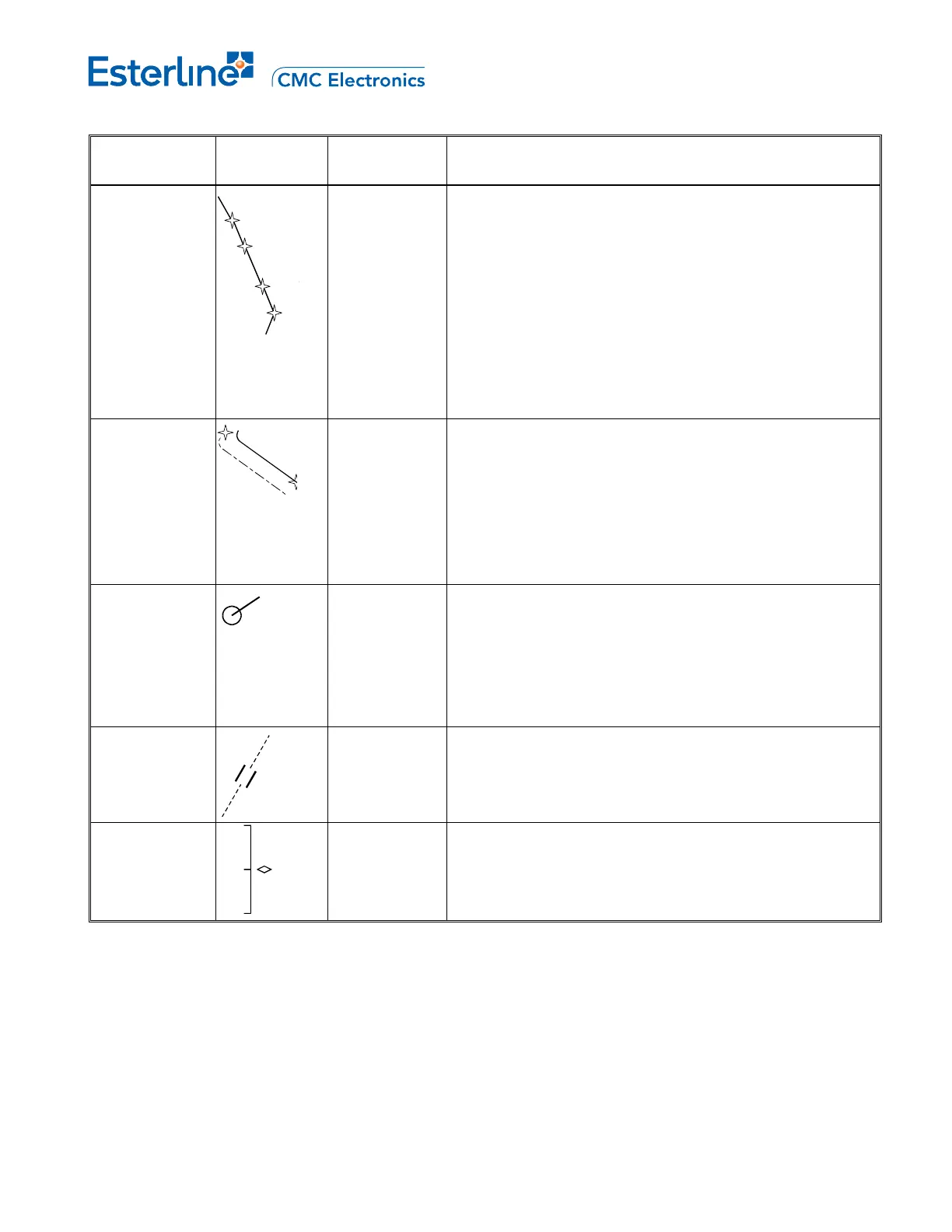

NAME SYMBOL APPLICABLE
MODE(S)
REMARKS
ACTIVE
ROUTE (M)
ACTIVE
ROUTE
MODIFICATIO
NS
(W)
INACTIVE
ROUTES
( C)
MAP
MAP CTR
PLAN
The active route is displayed with a continuous lines (M)
between waypoints. Active route modifications are
displayed with short dashes (W) between waypoints. When
a change is activated in the FMC, the short dashes are
replaced with a continuous line (M). Inactive routes are
displayed with long dashes (C) between waypoints.
AMBOY
KILMR
PARB
AR
OFFSET PATH
(M)
MAP
MAP CTR
PLAN
Presents a dot-dash line parallel to an offset from the active
route.
AIRPORT
IDENTIFIER
and RUNWAY
(W)
MAP
MAP CTR
PLAN
Appears when selected. Available when HSI range is 80,
160, 320 or 640 nm..
AIRPORT and
RUNWAY (W)
MAP
MAP CTR
PLAN
Appears when selected. Available when HSI range is 10, 20
or 40 nm. Dashed centerlines extend outward 14.2 nm.
KABC
22L
VERTICAL
POINTER (M)
and
DEVIATION
SCALE (W)
MAP
MAP CTR
Displays vertical deviation from selected vertical profile
(pointer) in MAP mode during descent only. Scale indicates
±400 ft deviation or ±150 ft deviation when in lateral
approach mode.
22
Page C-6
August 17, 2010
