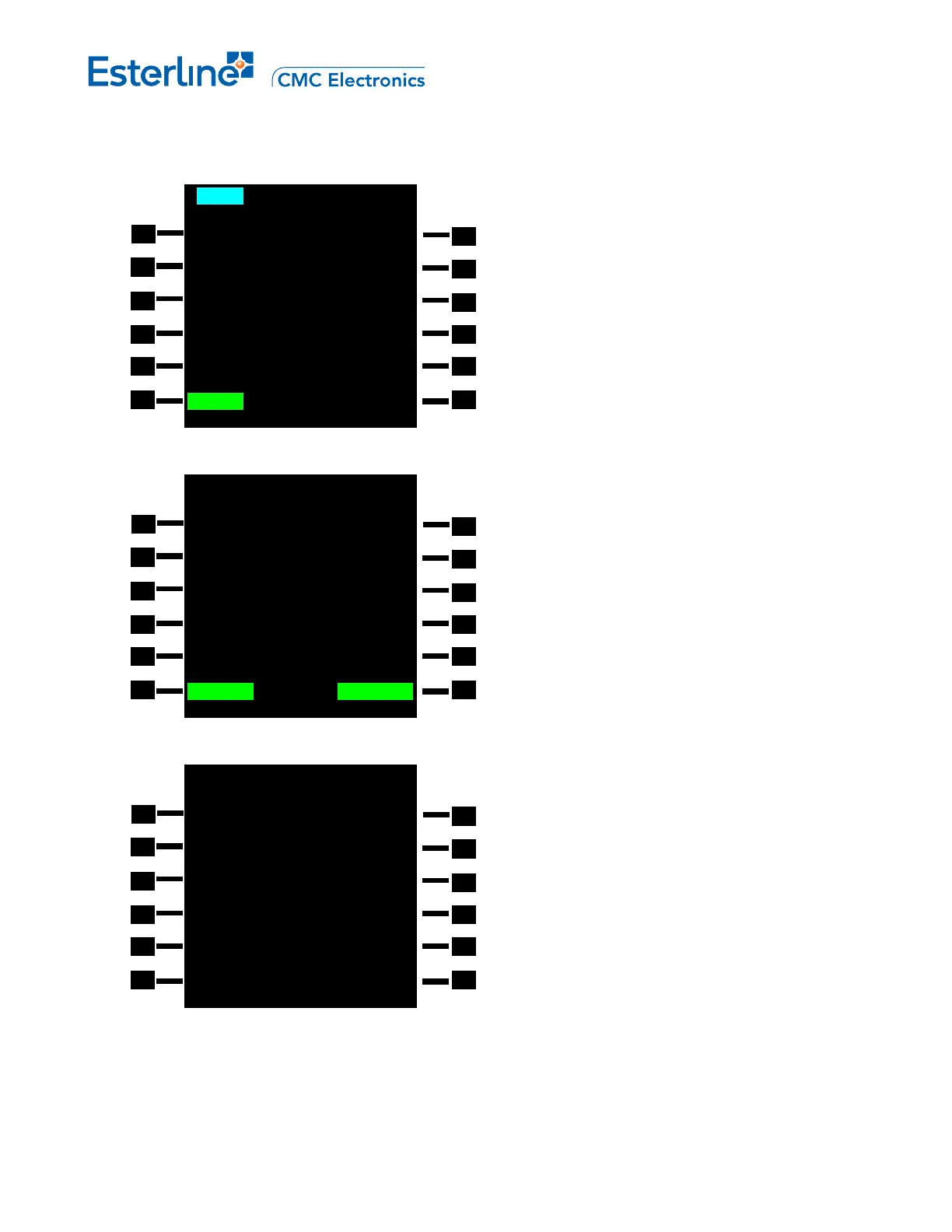

F. When the exit was armed and the RESUME HOLD prompt was pressed:
G. Inactive hold prior to confirmation:
H. Inactive route after confirmation:
1R
2R
3R
4R
5R
6R
RTE 2 HOLD 1/1
FIX SPD/TGT ALT
KILLA 220/ 5000A
TURN DIR RNP FIX ETA
> RIGHT 1.50NM Z
INBD CRS
050
o
LEG TIME/DIS
1.0
MIN/--.-NM
EXIT TYPE STATUS
ONCE INACTIVE
<NEW HOLD
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
5R
6R
RTE 2 HOLD 1/1
FIX SPD/TGT ALT
KILLA 220/ 5000A
TURN DIR RNP FIX ETA
> RIGHT 1.50NM Z
INBD CRS
050
o
LEG TIME/DIS
1.0
MIN/--.-NM
EXIT TYPE STATUS
ONCE INACTIVE
<CANCEL SAVE? CONFIRM>
1L
2L
3L
4L
5L
6L
1R
2R
3R
4R
5R
6R
MOD RTE 1 HOLD 1/1
FIX SPD/TGT ALT
KILLA 220/ 5000A
TURN DIR RNP FIX ETA
>RIGHT 1.50NM 2332.5Z
INBD CRS
050
o
LEG TIME/DIS
1.0MIN/--.-NM
EXIT TYPE STATUS
MANUAL RESUMING HOLD
<ERASE
1L
2L
3L
4L
5L
6L
DRAFT
