Fujitsu PRIMERGY TX120 S3 - Removing the PSU

114 Upgrade and Maintenance Manual TX120 S3
Power supply
6.1.1.4 Removing the PSU

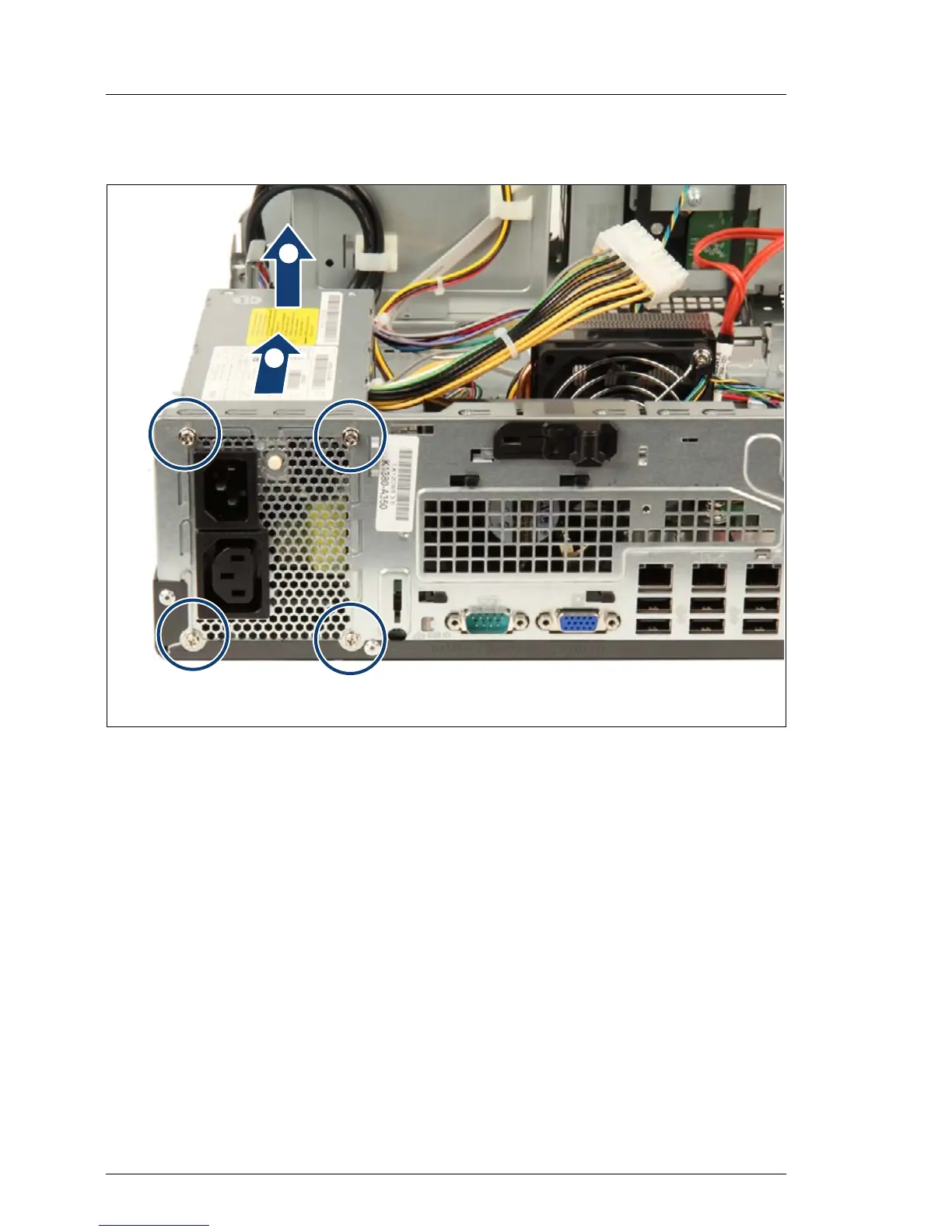

Figure 30: Removing the PSU
Ê Remove four screws from the PSU (see circles).
Ê Slide the defective PSU inward by 3 cm (1) to disengage the locking
mechanism.
Ê Lift the defective PSU out of the chassis (2).
/
