TX120 S3 Upgrade and Maintenance Manual 319
System board and components
Ê Disable boot watchdog functionality as described in section "Disabling
SVOM boot watchdog functionality" on page 80.
Ê Locate the defective server as described in section "Locating the defective
server" on page 50.
Ê Shut down the server as described in section "Shutting down the server" on
page 58.
Ê Disconnect the AC power cord from the system.
Ê Remove the server cover as described in section "Opening the server" on
page 61.
14.2.1.3 Installing the UFM board

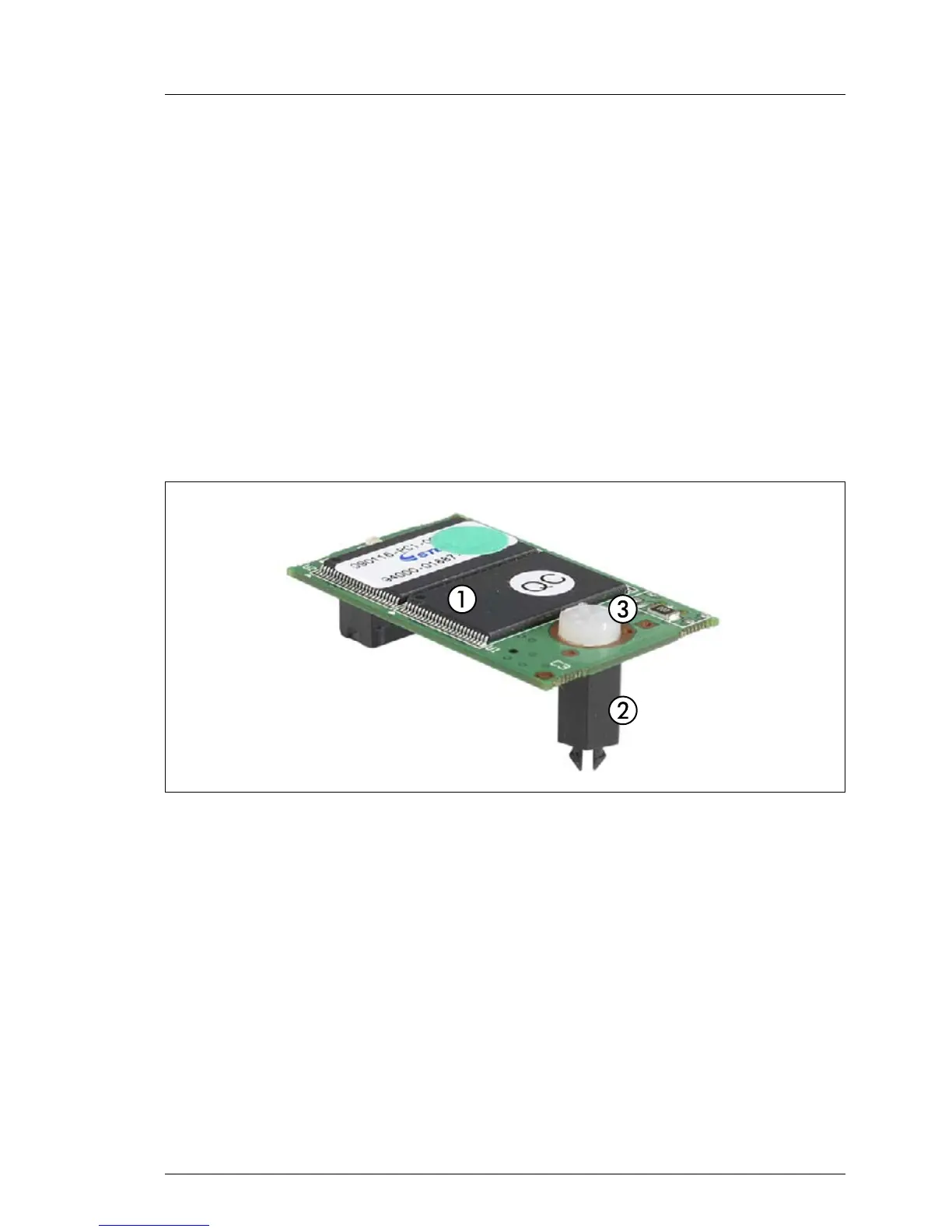

Figure 188: UFM kit
Pre-assembled UFM flash module kit (S26361-F3299-E2):
1 UFM 2 GB
A3C40104433
2 UFM spacer
A3C40109081
3 UFM nylon screw
A3C40109082
